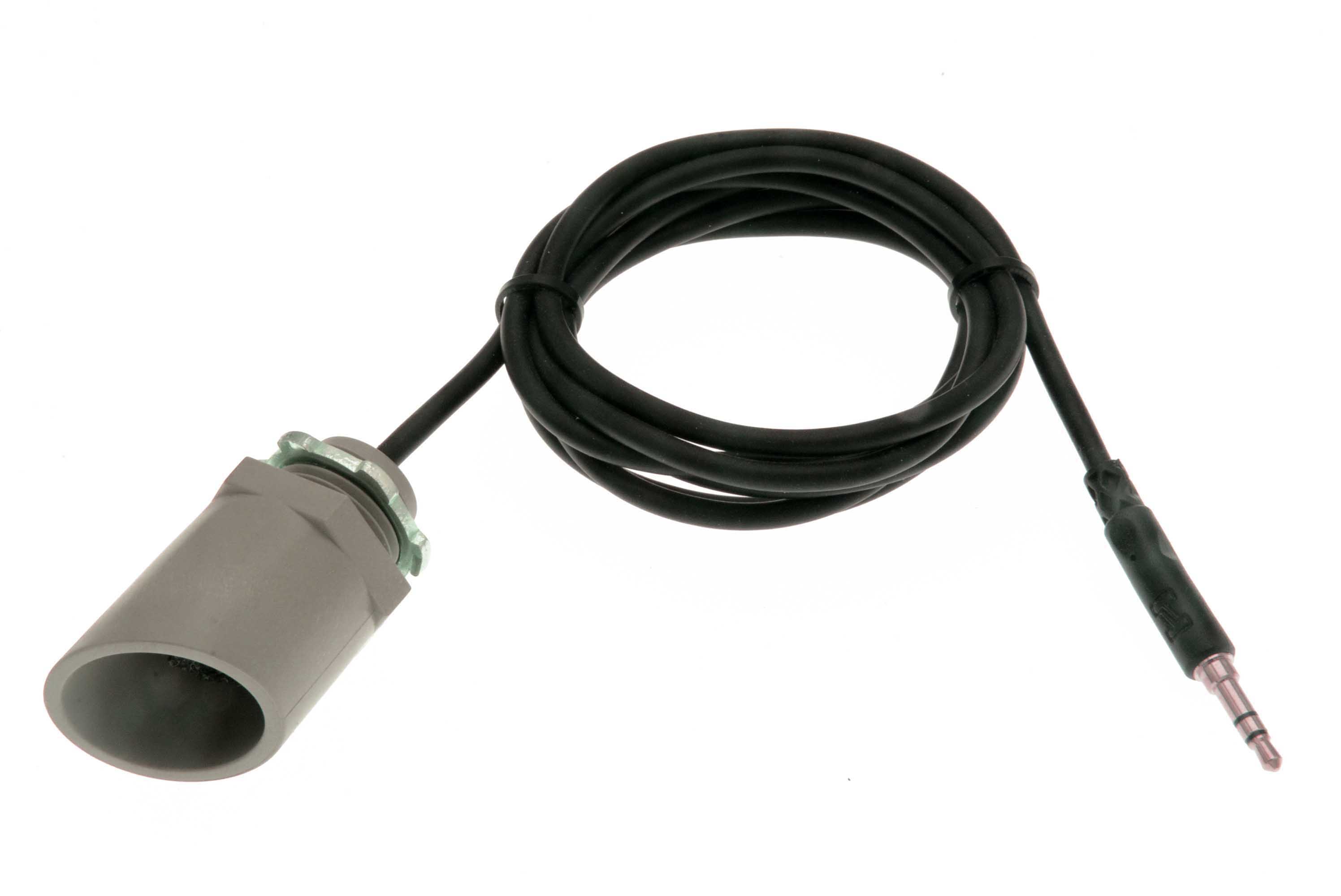

The ML1-WSWP is an IP57 rated, omni-directional electret microphone for use with IP cameras accepting microphone level input signals (PC compatible input).The ML1-WSWP mounts in a standard 1/2" electrical knock out hole. The attached cord is 6' long and comes standard with a stereo 3.5mm connector on one end. Add -FL to the P/N for a flying lead output for connections to cameras with terminal blocks.

Note-camera must accept electret type microphone inputs. (camera supplies power to ECM cartridge)

Features:

• Omni-directional pattern
• Max SPL 120db
• Frequency response: 50-16khz
• Sensitivity –47db
• -40db output (mic level)
• 2-10Vdc operation
• 2k-5k Ohm load resistance
• S/N 60db
• 3.5mm stereo connector
• 6’ standard cable length
• 1/2” thick removable windscreen.
• Grey ABS plastic housing
• Mounts in a standard 1/2" electrical knock out hole
• IP57 rated
• Operating temperature –30 to 70C
• Weight: 0.025 lbs

Includes:

• ML1-WSWP microphone.
• Warning label.
• Mounting locknut.

Options:

• Cable lengths of up to 25’ are available.
  Add –XX to P/N where XX = number of feet
• Add -BK to P/N for black plastic housing
