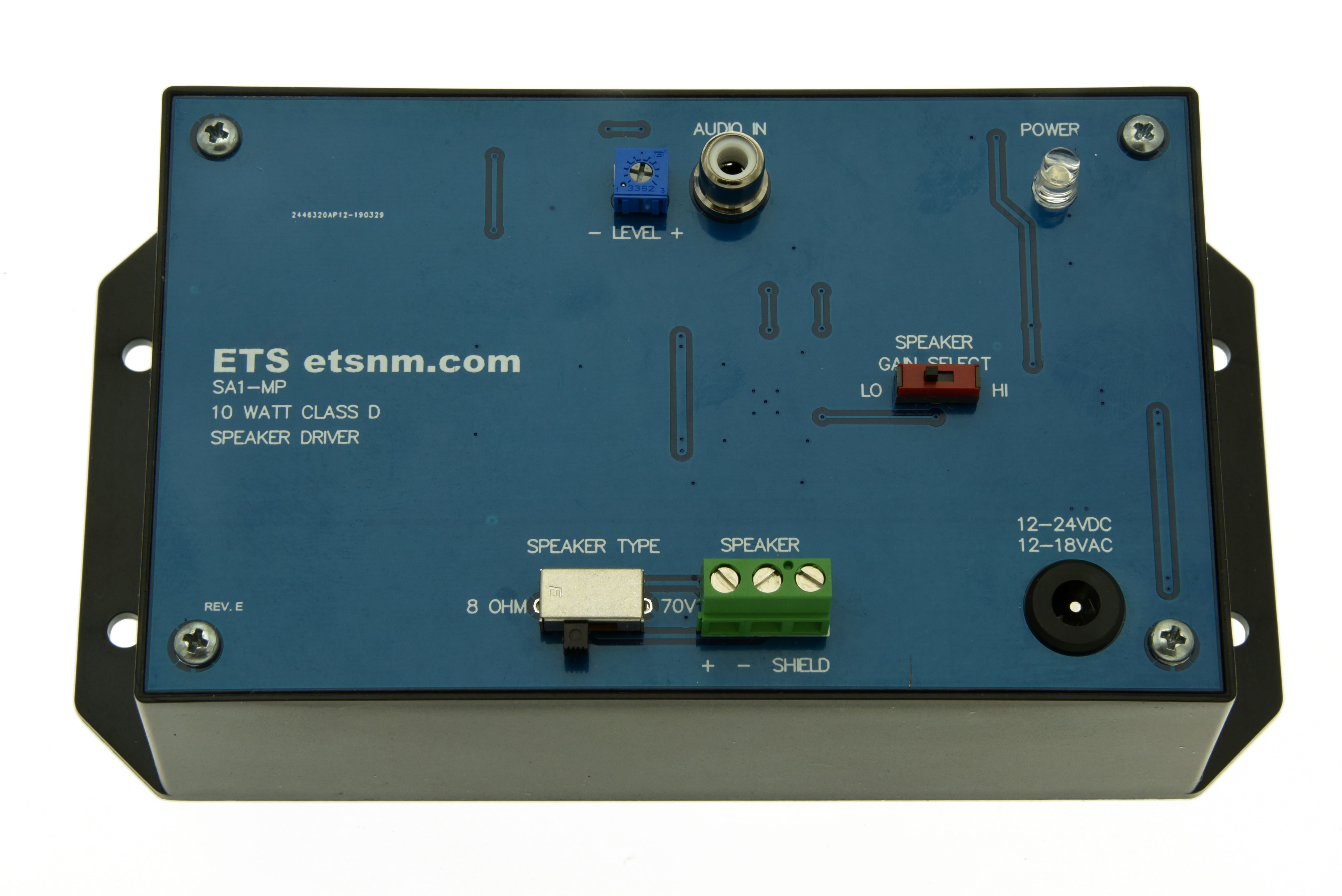

The SA1-MP is a line level input speaker driver which can power a 8 Ohm speaker at 40Watts or a 70v speaker(s) at 10 Watts. For use in PA talk down applications. Connects to DVRs, IP cameras and remote monitoring equipment. Use one of our Sound Surveillance speakers with a built in 70V transformer to permit speaker cable runs up to 500 feet.

Includes:

• SA1-MP Speaker driver.
• 24Vdc 2A AC adapter.
• 1 each 6’ RCA patch cord
• Installation instructions.

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.

Wiring Requirements:

• Speaker cable run: stranded 22- gauge, 2-conductor:
• 70V mode: cable: 500 feet max
• 8 Ohm mode: 100 feet max.

Features:

• RCA input jack
• Input: 70v line or 0dB (line level), switch selectable.
• Output: 8 Ohm direct at 40 Watts or 70V at 10 Watts, switch selectable.
• Output short circuit protected.
• Gain range switch
• Adjustable Volume level.
• Frequency response: 200-15Khz
• PTTC fused power input. Power 24Vdc @ 2A
• Built in 70V 10w audio power transformer.
• Terminal block speaker connections.
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight .35kg
