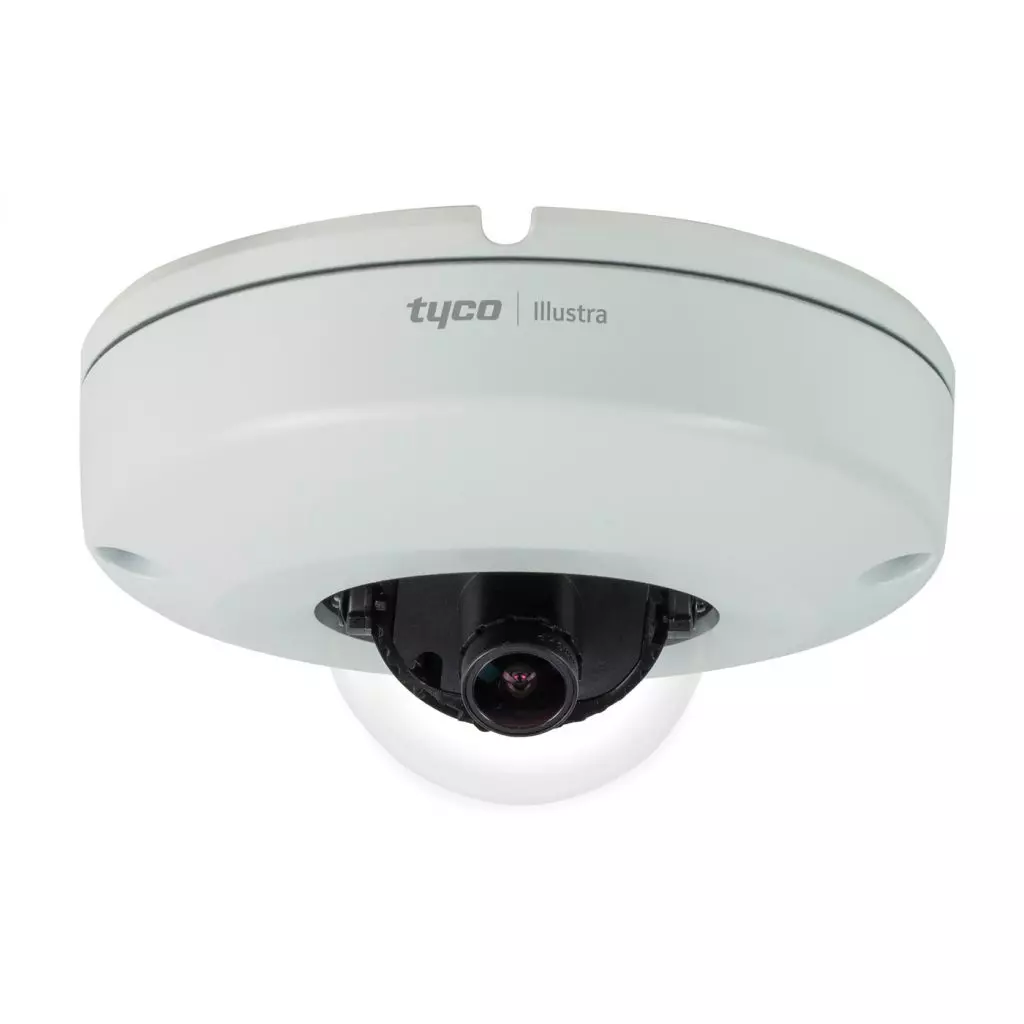

ExacqVision - IFS03CFOCWST - Illustra Flex 3MP Compact Dome, 2.8mm, Outdoor, Vandal, Clear, White, SDN, TWDR
Quality video recording in a discreet IP camera
The Flex Compact Mini-Dome provides crisp and clear high-definition video at 3MP resolution and provides exceptional video quality and low-light performance in a small, compact form factor. Rated IP66/IP67 and IK10 for weather and vandal resistance, the camera can function in hard outdoor conditions. Equipped with Power over Ethernet, the Compact Mini-Dome reduces installation costs by eliminating the need for power cabling.
Part number:
IFS03CFOCWST
Price:
- 3MP resolution provides true HD quality images
- VideoEdge TrickleStor technology for edge-based failover redundancy
- Day/Night functionality allows quality video recording in low light conditions
- True Wide Dynamic Range
- Illustra IntelliZip offers powerful video compression technology for bandwidth management
- Motion detection instantly alerts operators to intruders
- IP67-rated enclosure protects against dust and water damage
- IK10 vandal-resistant rating
- ONVIF compliant
- Included in the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Flex 3MP Compact Mini-Dome |
| Day/Night | SDN |
| Environment Rating | Indoor & Outdoor |
| Field of View | 102º/77º |
| Focal Length | 2.8mm |
| Focus | Fixed |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | 1/2.8” CMOS |
| IntelliZip | Yes |
| Lens Type | Fixed |
| Max Frame Rate | 30ips @ 3MP, 60ips @ 1080p |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Onboard Storage | Micro SDXC Up To 128GB |
| ONVIF Compliant | ONVIF profile S |
| Operating Temperature | -40ºC to 50ºC (-40ºF to 122ºF) |
| Outdoor Rating | IP66/IP67 |
| Power Input | PoE IEEE 802.3af class 2 |
| Resolution Options | 3MP, 2MP, 1MP, (2048x1536), (1920x1080) 1080p, (1024x576) PAL+, (1664x936), (640x360) nHD, (1280x720) 720p, (480x360) 480, (384x288) |
| Vandal-Resistant | IK10 |
| Video Streams | 3 |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Tyco Camera Product Brochure
3.6mb
File
Illustra Cameras Guide
2.2mb
File
Illustra Cameras Accessories Guide
3.1mb
File
Quick Start Guide
1.9mb
File
User Manual
7.5mb
File
A&E Specifications
0.3mb
File
Exacq Application Note
0.1mb
File
Video Edge Application Note
0.1mb
File
EU Declaration of Conformity
0mb
File
Release Notes
0.9mb
File
Illustra HostID Technical Bulletin
0.4mb
File
Illustra ONVIF Upgrade Technical Bulletin
0.3mb
File
Encrypted SD-Card Storage Technical Bulletin
0.4mb
File
CSR Technical Bulletin
0.4mb
File
Technical Drawings
0.1mb
