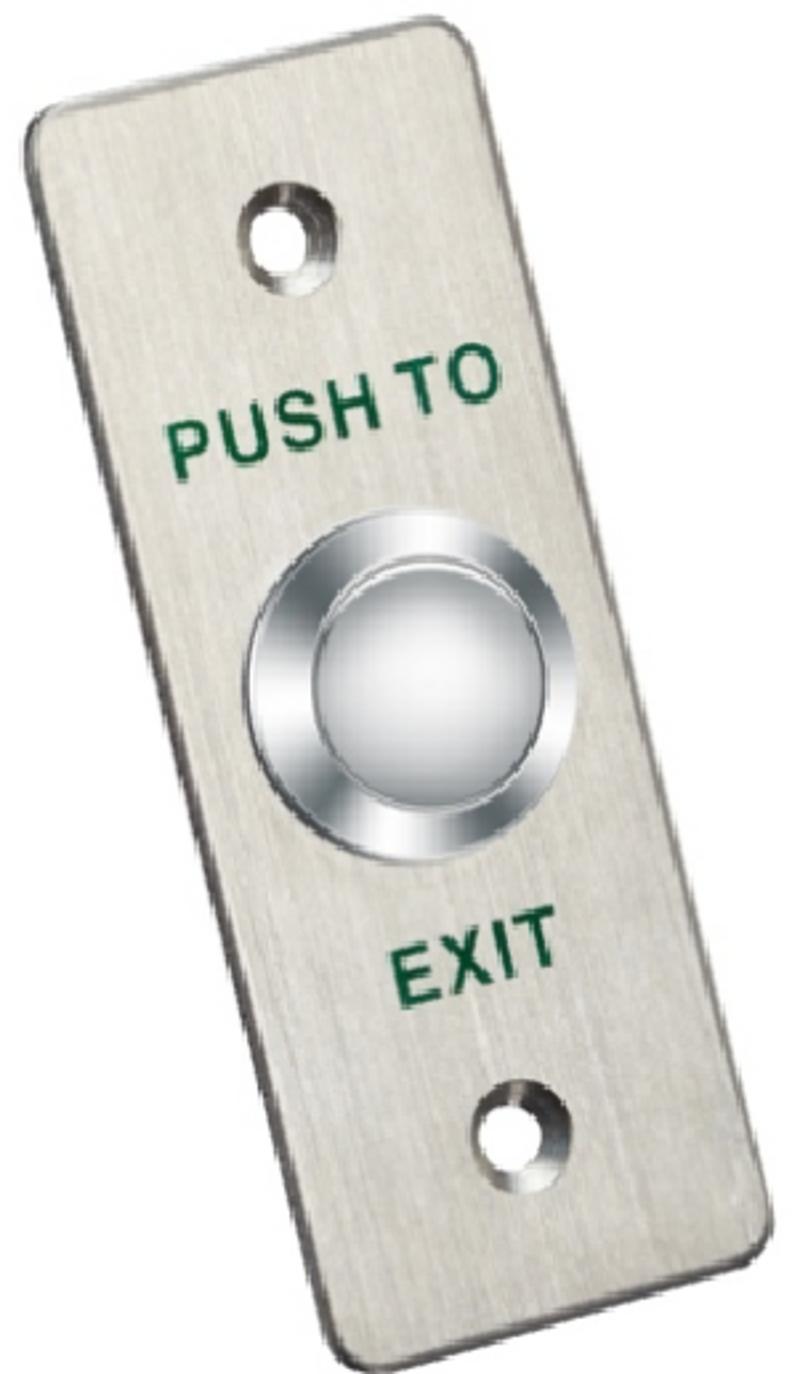

Hikvision - DS-K7P02 - Exit Button
Part number:
DS-K7P02
Price:
Exit & Emergency Button
Features:
- Aluminum alloy panel, metal button
- Dimension(L×W×H): 90 × 35 × 28.9 mm (3.54 × 1.38 × 1.14")
| Specification | |
| General | |
| Power supply | Max. 36 VDC, 3 A |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95% (relative humidity) |
| Dimensions | 90 mm × 35 mm × 28.9 mm (3.54" × 1.38" × 1.14") |
| Material | Aluminum alloy panel with sandblast, metal button |
| Door type | Hollow doorframe and embedded-electric box |
| Signal output | NO/NC/COM contact |
| Aging Test | Already passed 500 thousand times aging test |
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
