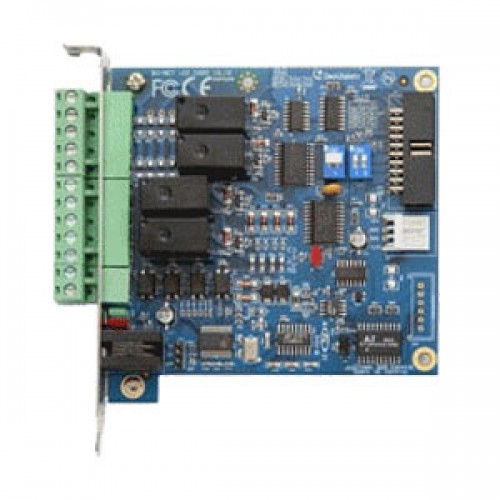

GeoVision - 55-IOCRD-320 - GV-NET/IO card
Part number:
400-IOCRD-000
Price:
GV-NET/IO card provides 4 inputs and 4 relay outputs. It supports both DC and AC output voltages and provides a USB port as well.
| Specifications | |||
| OS Supported | 32-bit | Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008 | |
| 64-bit | Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012 / Server 2012 R2 | ||
| Input | Input | 4 | |
| Input Signal | Dry-Contact | ||
| Wet-Contact : 9~30V AC/DC | |||
| Output | Relay Output | 4 | |
| Relay Status | Normal Open | ||
Relay Capacitance | USB Connection | 30V DC, 3A | |
| RS-232 Connection | 125 / 250V AC, 3A 30V DC, 3A | ||
| Interface | RJ-11 to DB9 | ||
| RJ-11 to USB | |||
| 3-pin internal USB to internal USB | |||
| Mode Switch | I/O Box Mode | Without GV-Video Capture Card | |
| NET/IO Card Mode | With GV-Video Capture Card | ||
| Address | 1-4 | ||
| Communication | RS-485, USB, RS-232 | ||
| Environmental Conditions | 0~50°C / 32~122°F , 5%~95% (non-condensing) | ||
| Dimensions (W x H) | 90 x 99 ( mm) / 3.90 x 3.54 (in) | ||
| Installation Guide | GV-NET/IO Card V3.2 | ||
