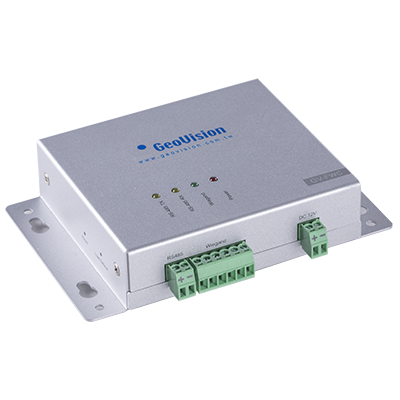

GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. When connected via TCP/IP, a face image is transmitted along with the access data upon face recognition. Additionally, the alarm output, e.g. a warning light, on GV-FWC can be triggered upon face recognition. For high security applications, GV-FWC can not only pass the face recognition access data to controllers but also require users to swipe paired cards on a connected Wiegand reader for double-authentication.

Features:

• Connection to controller via TCP/IP / Wiegand
• DC 12V / PoE+ (IEEE 802.3at)
• Support for up to 4 GV-Face Recognition Cameras / GV-AI FRs / GV-FR Panels
• Alarm trigger upon face recognition of a Face Group
• Connectable to a Wiegand reader for double-authentication, face recognition plus card swipe
• Compatible with 3rd-party Wiegand controllers

Note

• GV-FWC can only be connected using CAT-5e cables, TIA/EIA-568-B, with a maximum DC resistance of 9.38 ohms/100 m.
• All specifications are subject to change without notice.
