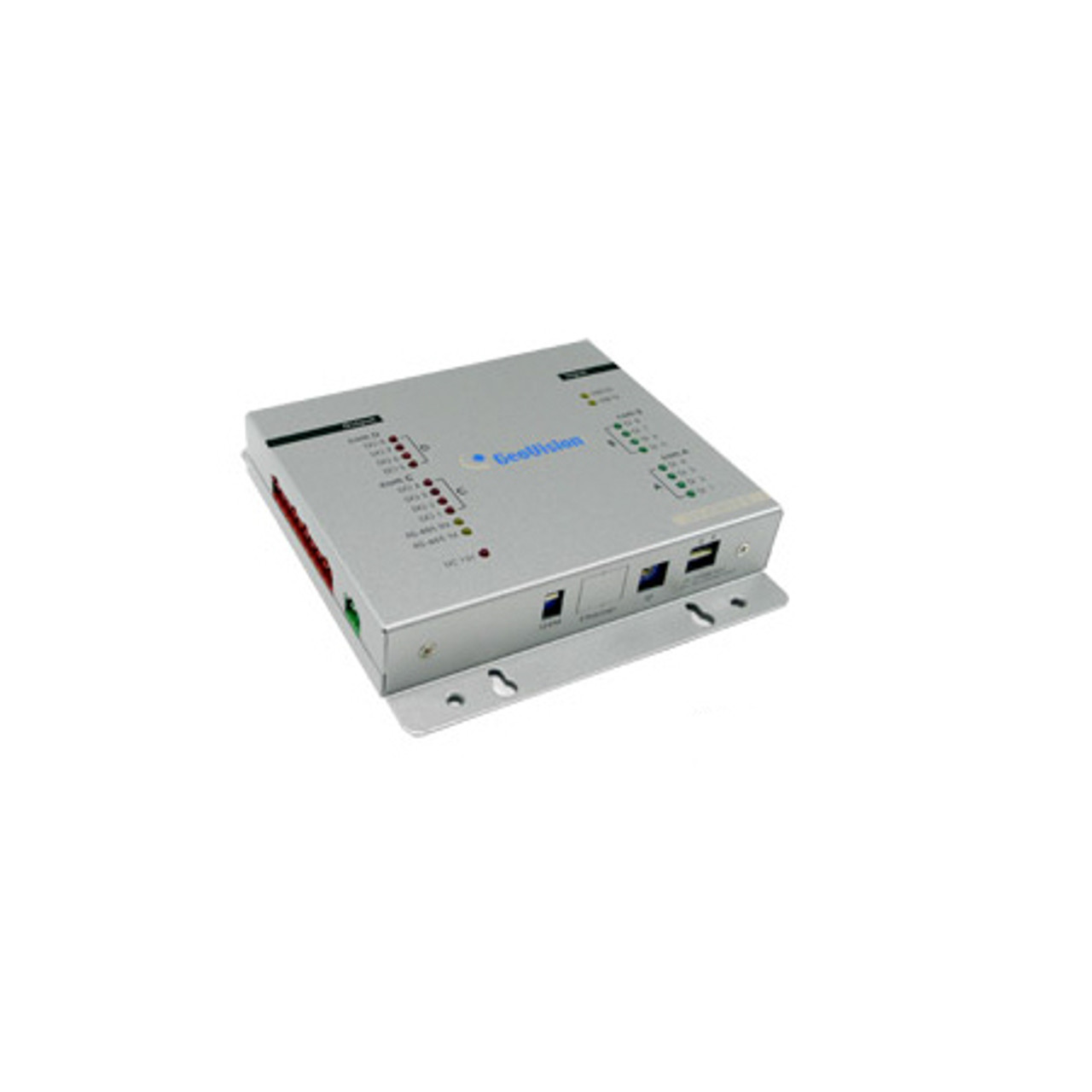

GeoVision - 84-IOBOX08-1E4U - GV-IO Box 8 Ports / GV-IO Box 8E
Part number:
400-IOBOX 8+E
Price:
The GV-IO Box 8E, with network connectivity, provides 8 inputs and 8 relay outputs. It also supports both DC and AC output voltages, and provides a USB port for PC connection. The device can also be controlled remotely via the GV-IoT mobile app.
Features:
- 8 inputs and 8 outputs
- Up to 9 GV-I/O Box 4 / 8 /1 6 devices can be linked together
- A USB port for PC connection (max. 30V DC, 3A output)
- Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
- GV‐IoT mobile app for remote management (GV-IO Box 8E of firmware V2.00 or later required)
Note:
- Firefox browser is not supported currently.
- The network connection depicted in the diagram is only supported by GV-IO Box 8E.
- Specifications are subject to change without notice.
| Specifications | |||
| OS Supported | 32-bit | Windows 7 / 8 / 8.1 / 10 / Server 2008 | |
| 64-bit | Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2 | ||
| Compatible S/W | GV-DVR / NVR / VMS, GV-ASManager, GV-Control Center, GV-Center V2 *GV-ASManager and GV-Control Center only accept network connection from GV-IO Box. | ||
| Input | Input | 8 | |
| Input Signal | Dry Contact | ||
| Wet Contact, 9-30V AC / DC | |||
| Output | Relay Output | 8 | |
| Relay Status | Normal open | ||
Relay Capacitance | USB Connection | 30V DC, 3A | |
| RS-485 Connection | 125 / 250V AC, 3A 30V DC, 3A | ||
| TCP/IP Connection | |||
| Ethernet | RJ-45, 10/100 Mbps (only for GV-IO Box 8E) | ||
| DC IN | DC 12V, 1A | ||
| Address | 0-9, A-F | ||
| Terminal Resistance | 120 ohm | ||
| Environmental Conditions | 0 ~ 50 °C / 32 ~ 122 °F 5% ~ 95% (non-condensing) | ||
| Dimensions (W x H x D) | 135 x 28 x 145 (mm) / 5.31x 1.10 x 5.70 (in) | ||
