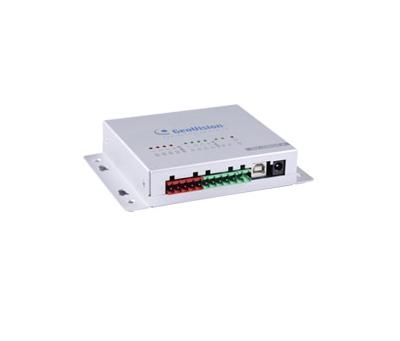

GeoVision - 84-IOBOX4E-0200 - GV-I/O Box 4E
Part number:
400-IOB04-04E
Price:
GV-I/O Box 4E is a compact yet powerful device with four inputs and four relay outputs. It has DC and AC output voltages, as well as PoE, TCP/IP and an RS-485 interface for PC connection. The device can also be controlled remotely via the GV-IoT mobile app.
Features:
- 4 inputs and 4 outputs
- TCP/IP and RS-485 ports for PC connection
- DC 12V, 3A / PoE+ (IEEE 802.3at)
- Up to 9 GV-I/O Box 4 / 8 / 16 devices can be linked together
- Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
- GV‐IoT mobile app for remote management
Note:
- Firefox browser is not supported currently
- The Wiegand Interface does not have any function in Firmware V1.01 or earlier.
- GV-I/O Box 4E can only be connected using CAT-5e cables, TIA / EIA-568-B, with the maximum DC resistance of 9.38 ohms / 100 m.
- All specifications are subject to change without notice.
| OS Supported | 32‐bit | Windows 7 / 8 / 8.1 / 10 / Server 2008 |
| 64‐bit | Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2 | |
| Compatible S/W | GV‐DVR / NVR / VMS, GV‐ASManager, GV‐Control Center, GV‐Center V2 *GV‐ASManager and GV‐Control Center only accept network connection from GV‐IO Box. | |
| Wiegand Interface | 2 Wiegand interfaces, 26 ~ 64 bit format | |
| 12V DC power supply, 200 mA | ||
| RS‐485 Connection | 1 RS‐485 interface for 9 GV‐I/O Box connections, Distance 600 m (1968.5 ft), 24 AWG | |
| Input | 4 inputs, Dry Contact, NO / NC | |
| Output | 4 relay outputs (DC 30V, 3A; 110V AC ~ 250V AC, 3A) | |
| Ethernet | RJ‐45, 10 / 100 Mbps | |
| Power | 12V DC, 3A / PoE+ (IEEE 802.3at, provides up to 25.5W) | |
| Operating Temperature | 0° C ~65° C / 32°F ~ 149 °F | |
| Operating Humidity | 5% ~ 95% RH (Non‐Condensing) | |
| Dimensions | 111.4 x 27.5 x 101 mm / 4.39 x 1.08 x 3.98 in (case included) | |
| Weight | 235 g / 0.52 lb (case included) | |
| Ingress Protection | IP54 | |
| Regulatory | CE, FCC, RoHS | |
