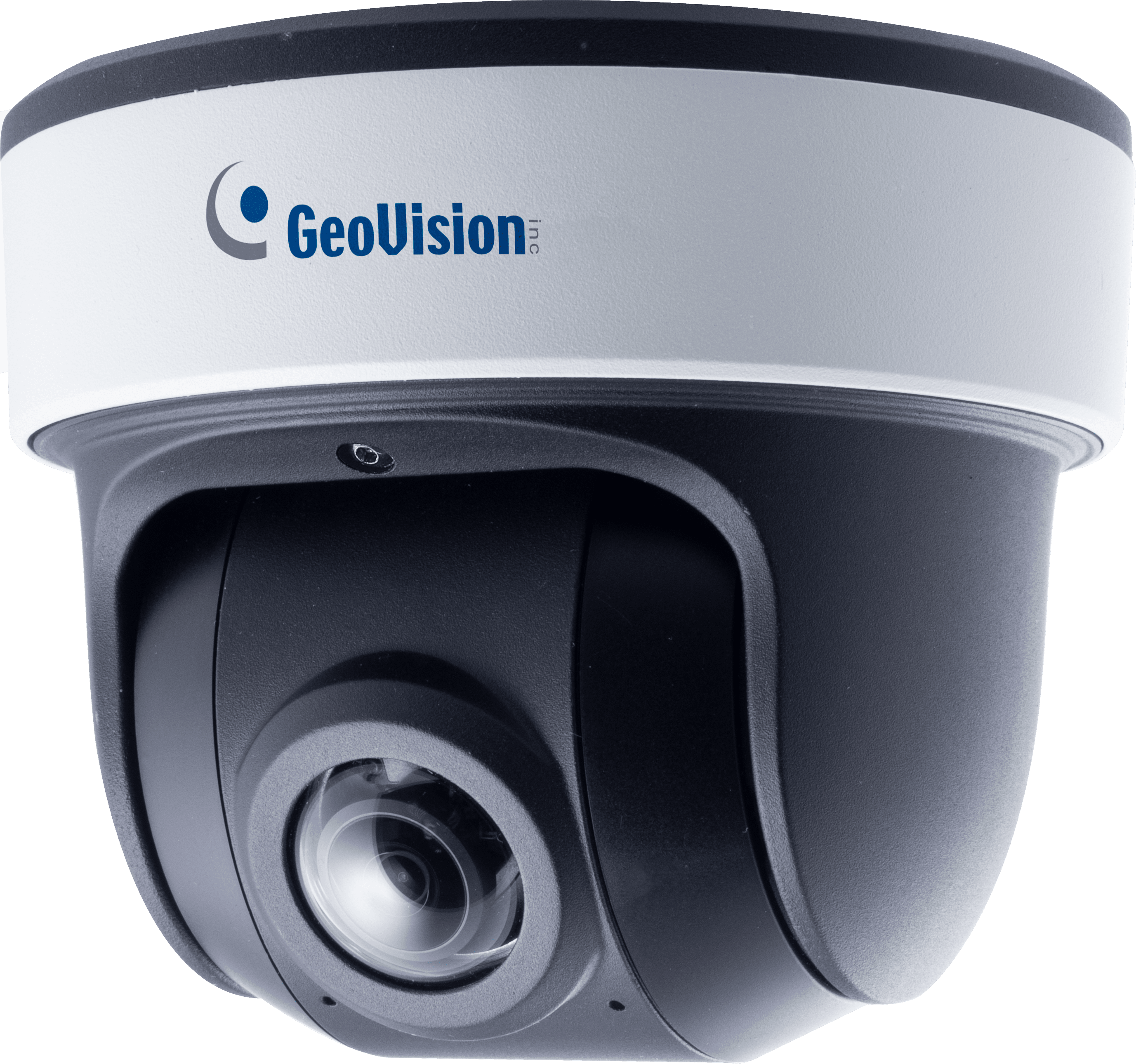

The panoramic dome IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. GV-PDR8800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.8" progressive scan CMOS sensor
- Min. illumination at 0.012 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 25 fps at 3840 x 2160
- Intelligent IR
- IR distance up to 15 m (50 ft)
- Day and Night function (with removable IR-cut filter)
- 180° panoramic view
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Built-in microphone
- Wide Dynamic Range Pro (WDR Pro)
- AI analytics (Line Crossing, Region Entrance, Region Exiting, Advanced Motion Detection, Loitering, People Counting)
- Tampering alarm
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- 20 languages supported
- ONVIF (Profile G, Q, S, T) conformant
- SIP/VoIP Support
| Camera | |
| Image Sensor | 1/2” progressive scan super low lux CMOS |
| Picture Elements | 3840 (H) x 2160 (V) |
| Minimum Illumination |
|
| Shutter Speed | Automatic, Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 55 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.68 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Horizontal FOV | 180° |
| Operation |
|
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 15 m (50 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution |
|
| Frame Rate | 60Hz: 25 fps at 3840 x 2160, 30 fps at 3456 x 1936, 30 fps at 3200 x 1800, 30 fps at 2880 x 1624, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 576, 30 fps at 640 x 480, 30 fps at 640 x 360, 30 fps at 352 x 288, 30 fps at 320 x 240 50Hz: 25 fps at 3840 x 2160, 25 fps at 3456 x 1936, 25 fps at 3200 x 1800, 25 fps at 2880 x1624, 25 fps at 2560 x 1440, 25 fps at 1920 x 1080, 25 fps at 1280 x 720, 25 fps at 704 x576, 25 fps at 640 x 480, 25 fps at 640 x 360, 25 fps at 352 x 288, 25 fps at 320 x 240 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Audio Alarm, Tampering Detection, Object Left, Object Removed *Tampering detection and audio alarm are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°,90°, 180°, 270°‐including Corridor format) |
| Heat Map | On / Off |
| Audio Compression | G.711 |
| Audio Support | One‐way Audio (built-in microphone) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP,NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, ONVIF Profile (G, Q, S, T) |
| Deep Learning Function | |
| AI Analytics |
|
| Mechanical | |
| Camera Angle Adjustment |
|
| Connectors |
|
| General | |
| Operational Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Humidity | 0 ~ 90% (no condensation) |
| Power Source | 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 9 W |
| Dimensions | Ø 127.2 x 107 mm (Ø 5 x 4.2”) |
| Weight | 0.85 kg (1.87 lb) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 for metal casing |
| Regulatory | CE, FCC compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking |
| Language | Arabic, Bulgarian, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Persian, Polish, Portuguese, Russian, Slovenian, Spanish, Thai, Traditional Chinese, Turkish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.5 with patch file V17.4.5.6) |
| Live Viewing | Browser (Chrome, Edge, Firefox, Safari), Mobile App |
