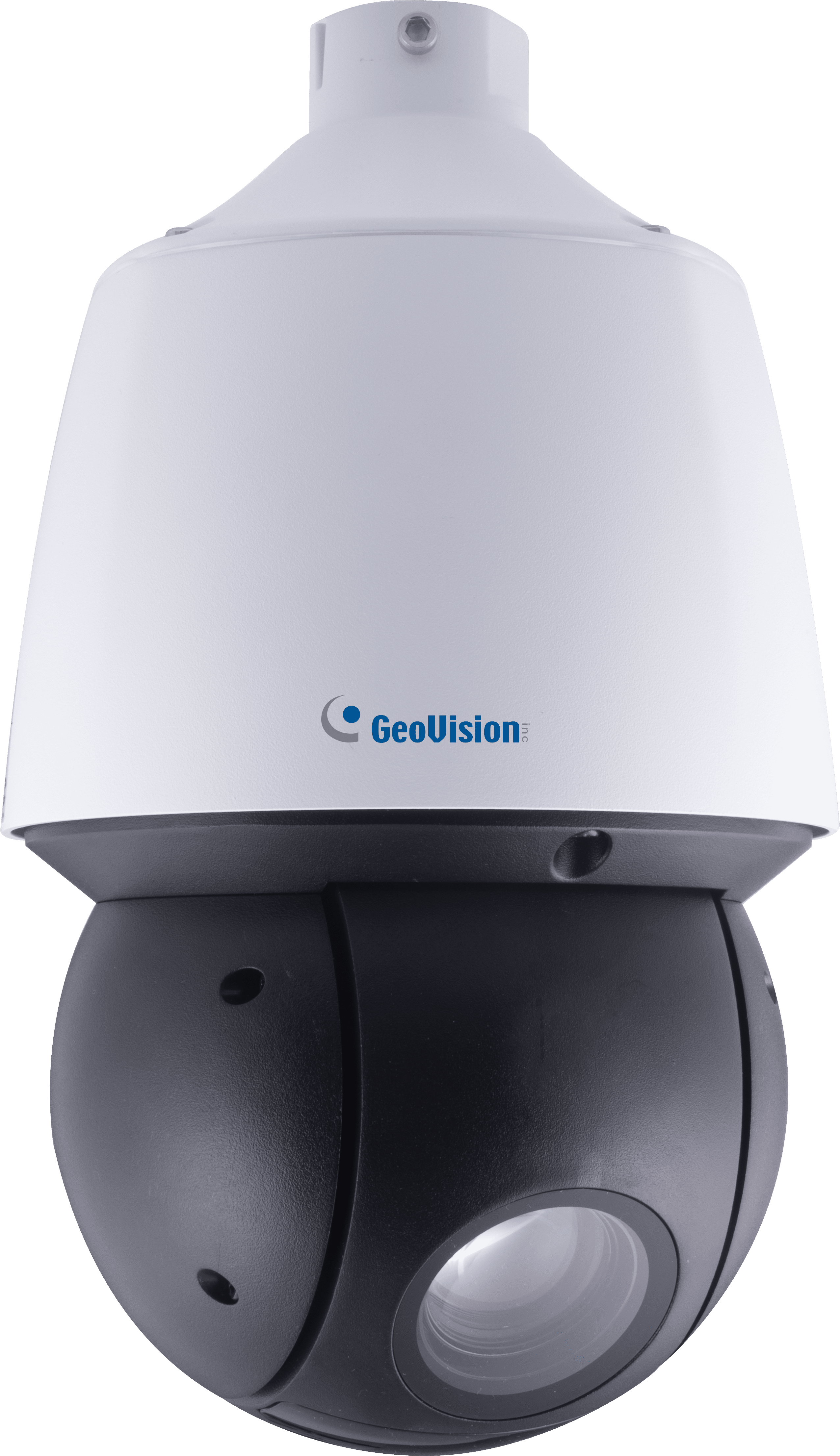

GEOVISION - GV-SD4825-IR - AI 4MP 25x Zoom H.265 Super Low Lux WDR Pro Outdoor IR IP Speed Dome
Part number:
GV-SD4825-IR
Price:
GV-SD4825-IR is an outdoor network PTZ camera that offers 25x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2688 x 1520 at 30 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 100 m (330 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It also adheres to IP67 and IK10 standards.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. GV-SD4825-IR supports AI perimeter protection, people flow counting, auto tracking, motion detection, audio detection and more.
Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.8" progressive scan CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- 25x optical zoom and unlimited digital zoom
- Intelligent IR
- IR distance up to 100 m (330 ft)
- Day and night function with IR-cut filter
- Two sensor inputs and one alarm output
- Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
- TV-out support
- Two-way audio
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- DC 12V, PoE+ (IEEE 802.3at)
- Pan 360° endlessly
- Tilt from ‐15° to 90°
- Pan and tilt speed of up to 240°/sec and 200°/sec, respectively
- PTZ movement (Preset, Auto Pan and Patrol)
- PTZ patrol by schedule
- AI analytics (Cross Line, Intrusion, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
- Auto focus
- 3D noise reduction
- Motion detection
- Privacy mask
- ONVIF (Profile G, S, T) conformant
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Optical Zoom | 25x |
| Minimum Illumination |
|
| Electronic Shutter | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| IRIS Control | Auto / Manual |
| AGC control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR | WDR Pro |
| Dynamic Range | Up to 120 dB |
| Optical Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 4.8 ~ 120 mm |
| Maximum Aperture | F1.5 |
| Horizontal FOV | 52.20° ~ 2.74° |
| Operation |
|
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 100 m (330 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution |
|
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip,Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | Two-way Audio (external microphone and speaker required) |
| Deep Learning Function | |
| AI Analytics | Cross Line, Intrusion, Auto Tracking, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Connectors |
|
| Operation | |
| Pan Travel | 360° endless |
| Tilt Travel | -15° ~ 90° |
| Manual Speed |
|
| Present Speed |
|
| Presets |
|
| Patrol |
|
| OSD | 8 |
| Privacy Mask | 24 |
| Proportional Pan & Tilt | Auto (Pan and tilt speed proportional to zoom ratio) |
| Automatic Function | Preset, Patrol (Including Auto Pan) |
| Mechanical Flip | Yes |
| Digital Slow Shutter | On / Off |
| Motion Detection | On / Off |
| Wide Dynamic Range | On / Off |
| Day/Night: Mechanical IR Cut Filter | On / Off |
| Image Rotation | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| 3D Noise Reduction | 0 ~ 255 |
| Alarm |
|
| General | |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Humidity | 20% ~ 90% (non-condensing) |
| Power Source | DC 12V, PoE+ (IEEE 802.3at) |
| Power Consumption | 21W |
| Dimensions | Ø166 x 295 mm (6.5” x 11.6”) |
| Weight | 3.05 kg (6.72 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.3 / V18.2.1), GV-Control Center (V3.8.0 / V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server/ Video Gateway (V2.0.1), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0) |
| Live Viewing | Browser (Chrome, Edge, Firefox, Safari), Mobile App |
