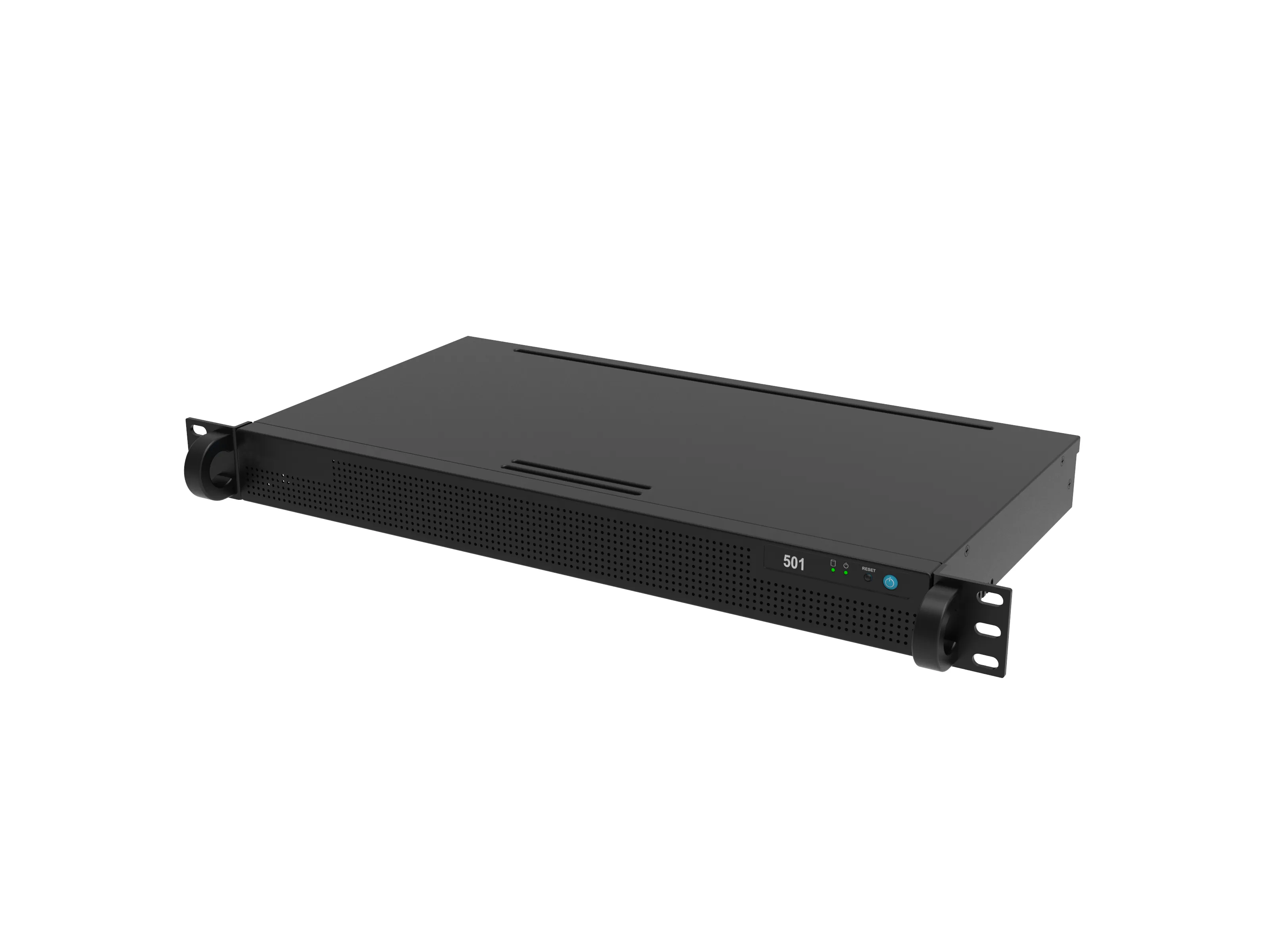

Hanwha - SKY-SU501-0 - Wisenet SKY Bridge 501
Part number:
SKY-SU501-0
Price:
The Wisenet SKY Bridge acts as a gateway from your premises to the Cloud Data Center where your video is stored and managed. The bridge provides video buffering, a secure connection, bandwidth management, and monitoring of cameras. These 1U rack-based bridges are designed to fit in a standard equipment rack. The rack mount bridges are offered to support larger number of cameras.
Features:
- Supports up to 50 @ 1MP cameras ~ 35 @ 4MP cameras*
- Supports up to 10 cloud analytics, with supported license
- Intelligent Bandwidth Management with local buffering records up to 2 days
- Dual gigabit network ports
- HDMI & DisplayPort video outputs for local display
- 1U Rack mount
- Fully cloud managed
- Supports motion or continuous recording
- Front panel indicator lights
- Supports Wisenet and ONVIF conformant IP cameras
- Complete encryption of video in transit and at rest
STANDARD SUPPORT (Included)
- Free of charge with an active subscription
- No cost replacement with an active subscription
- 24/7 email and web support
- Standard phone support
| SYSTEM | ||
| Maximum Cameras @ 1MP | 15 / 30 / 50 | |
| Maximum Cameras @ 4MP | 12 / 25 / 35 | |
| Maximum Cloud Analytics | 5 / 10 / 10 | |
| Hard Disk Drive Network ports | 1TB, 800Gb usable for video storage, spinning hard disk | |
| Video output | Dual gigabit ethernet RJ-45 | |
| 1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort (401 / 501) | ||
| Indicator Lights | Power, Disk activity | |
| USB ports | 2x USB 3.0 | |
| Operating System | Embedded Linux | |
| Included accessories | Power cord, rack mount brackets | |
| Rack Mount Brackets | Included | |
| Ordering SKU | EN-SU301-0 / EN-SU401-0 / EN-SU501-0 | |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
| Mechanical | Form Factor | Rack mount or shelf / tabletop mount |
| Color / Material | Black / Metal | |
| Dimensions | 1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm) | |
| Weight | 7.64lb (3.47kg) / 8.62lb (3.91kg) / 8.6lb (3.9kg) | |
| Electrical | Power Supply | Internal, 65 W / 50 W / 120 W |
| Power Input | 100 ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
