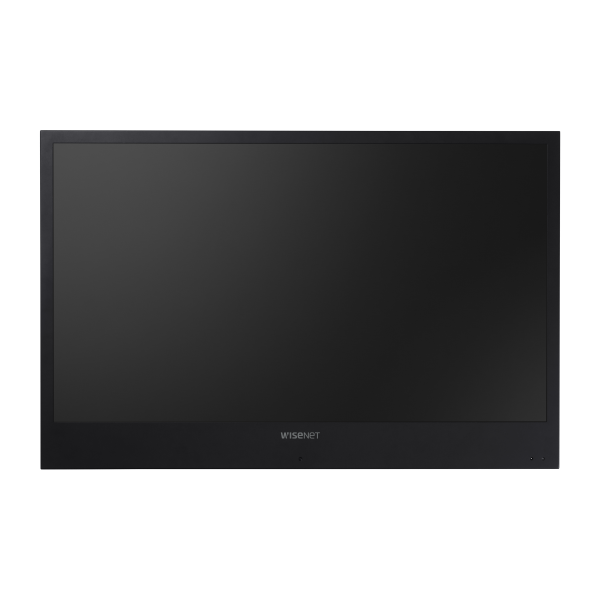

Hanwha - SMT-3230PV - 32" PVM monitor (Black)
Part number:
SMT-3230PV
Price:
32″ Public View Monitor (Black) With 2 Megapixel Camera
Features:
- 32" LED 1080p resolution monitor and Public View Monitor (PVM) camera
- Latency-free viewing
- Inconspicuous integrated camera
- Face Detection display for visual deterrent (Colored bounding box around detected face)
- Wide Dynamic Range (150dB)
- Advanced video analytics, motion detection
- Customizable text overlay with pre-configured "Recording in progress" OSD
- Internally powered Camera
- Micro SD/SDHC/SDXC memory slot (256GB)
- H.265, H.264, MJPEG triple codec, Multiple streaming
- Additional HDMI input
- IP video and network manageable
- Multi-crop streaming
| DISPLAY | |
| Screen Size | 32" LED backlight |
| Resolution (HxV) | 1920 x 1080 |
| Brightness | 300cd/m² |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 178° / 178° |
| Display Color | 16.7 Million |
| Response Time | 8ms |
| Video System | NTSC / PAL |
| Panel Life | 30,000 hours |
| Filter Type | 3D Comb Filter / Noise Reduction / DeInterlace |
| Key features | Customizable text overlay and blinking "Recording in progress", Slide show |
| INTERFACE | |
| Display connector | 1 HDMI In |
| Network Connector | 1 RJ-45 10/100BASE-T |
| Reset (For Camera) | Yes |
| Language | English, Spanish, French, German, Italian |
| Memory Slot | Micro SD/SDHC/SDXC (Maximum 256GB) |
| Alarm | In 1/ Out 1 |
| ENVIRONMENTAL | |
| Operating temperature/ humidity | 0° ~ 50° C (-32°F ~ +122°F) / Up to 40°C @ ≤90% RH, up to 50°C @ ≤50% RH |
| Storage temperature/ humidity | -20° ~ 60°C (-4°F ~ +140°F) / Up to 90% RH @ ≤40°C , Up to 35% RH @ ≤60°C |
| Certification | UL, CE, FCC |
| ELECTRICAL | |
| Input Voltage | DC 12V, 110V AC power supply included |
| Power Consumption | DC12V 5.1A |
| MECHANICAL | |
| Color / Material | Black / Galvanized Steel |
Product dimensions(WHD) / weight | 737.6mm x 480.9mm x 52mm (29.04" x /18.93" x 2.05") 12.9Kg (28.44lbs) Shipping 891mm x 648mm x 213mm / 35.08" x 25.51" x 8.39" 16.6Kg (36.60lbs) |
| Bezel Size | Top/Side: 19.6mm Bottom: 68.5mm |
| Vesa Mounts Interface | 100 x 100mm / 200 x 100mm / 200 x 200mm (M4 x 10mm) |
| CAMERA | |
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13MP pixels |
| Minimum Illumination | Color : 0.06 Lux (1/30sec, F2.5) |
| Focal Length (Zoom Ratio) | 4.6mm |
| Wide Dynamic Range | 150dB |
| Video Compression Format | H.265 / H.264 / MJPEG |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) |
