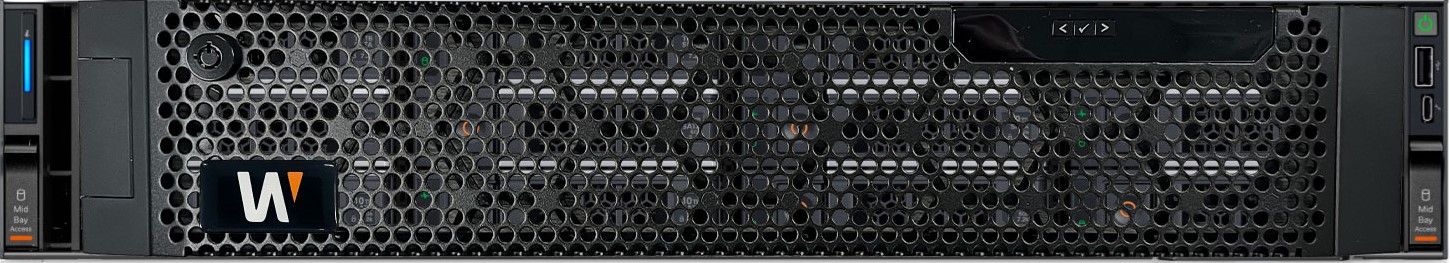

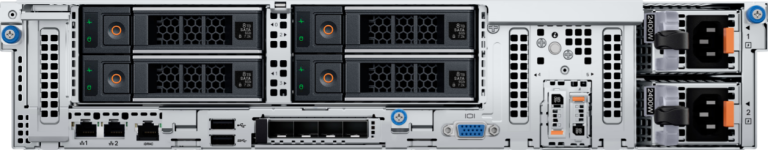

Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54
Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54
Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54
Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54 Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54

Hanwha - WRR-P-S206S1-280TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 1100 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 54

Part number:
WRR-P-S206S1-280TB
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses, 280TB raw (218TB usable after disk formatting & RAID 6 configuration), 470 Mbps recording B/W, 28 HDD Bay (3.5"), Dual Intel Xeon Gold 5416S, 64GB RAM, Dual 480GB SSD OS drives (RAID 1), Windows Server 2022 Standard, Support RAID 0/1/5/6 + 8GB NV cache, Nvidia A400 GPU, MiniDP output, VGA output, Dual 1GbE RJ45, Dual 10/25GbE SFP28, IPMI, Redundant 1400W power supplies, Keyboard and mouse included, Rail kit included



Features:

  • 2U Wisenet WAVE Network Video Recorder with 4 Professional Wisenet WAVE licenses
  • 470 Mbps recording B/W
  • 28 HDD Bay (3.5")
  • Dual Intel Xeon Gold 5416S, 64GB RAM
  • Dual 480GB SSD OS drives (RAID 1)
  • Windows Server 2022 Standard
  • Support RAID 0/1/5/6 + 8GB NV cache
  • Nvidia A400 GPU
  • MiniDP output
  • VGA output
  • Dual 1GbE RJ45
  • Dual 10/25GbE SFP28
  • IPMI
  • Redundant 1400W power supplies
  • Keyboard and mouse included
  • Rail kit included
System-
Video Management SoftwareWave VMS
Recording Bandwidth

Up to 470 Mbs

* Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS

Included Licenses4 x Wave Professional License
OS Drive Bays2 x 480GB Dual RAID 1 SSD (Internally Mounted)
Data Drive Bays28 x 3.5" Front Hot Swappable Bays
Data StorageUp to 480TB raw
Network Interface2 x RJ45 1GbE + 2 x 10/25GbE SFP28
Memory64GB DDR5
USB Ports1 x USB 2.0 (Front), 1 x USB 2.0 + 1 x USB 3.0 (Rear)
Other PortsSerial
Keyboard & MouseIncluded
Sliding Rail KitIncluded, with Cable Management Arm

Dimensions (WxDxH):

Weight:

 18.96"(481.6mm) x 32.95"(837mm) x 3.41"(86.8mm)

 102.07 lbs (46.3 kg)

* Weight is on chassis fully loaded with drives

ElectricalPower Input: 100 - 240 VAC
