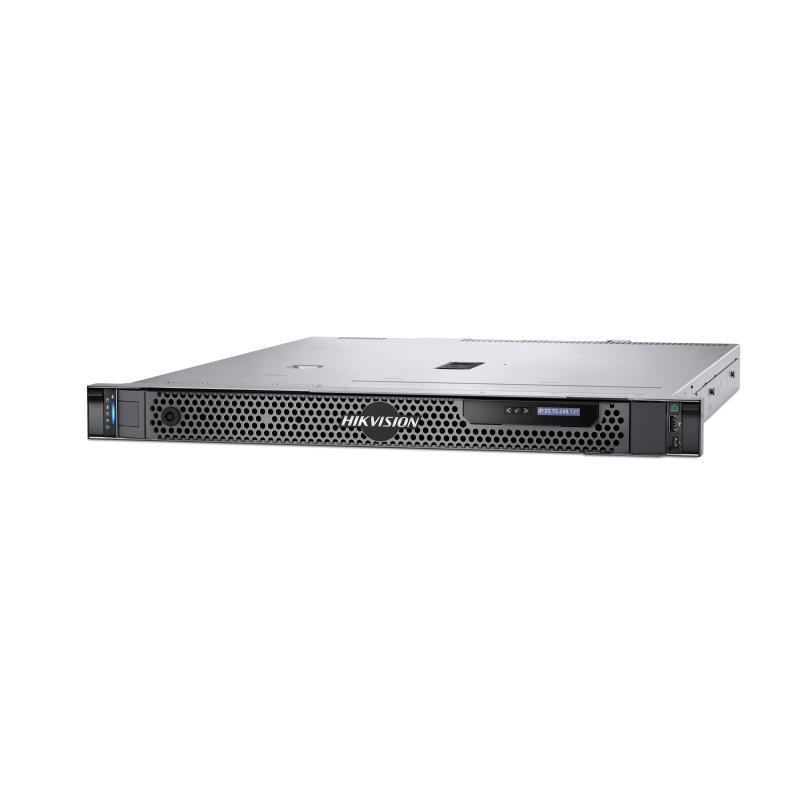

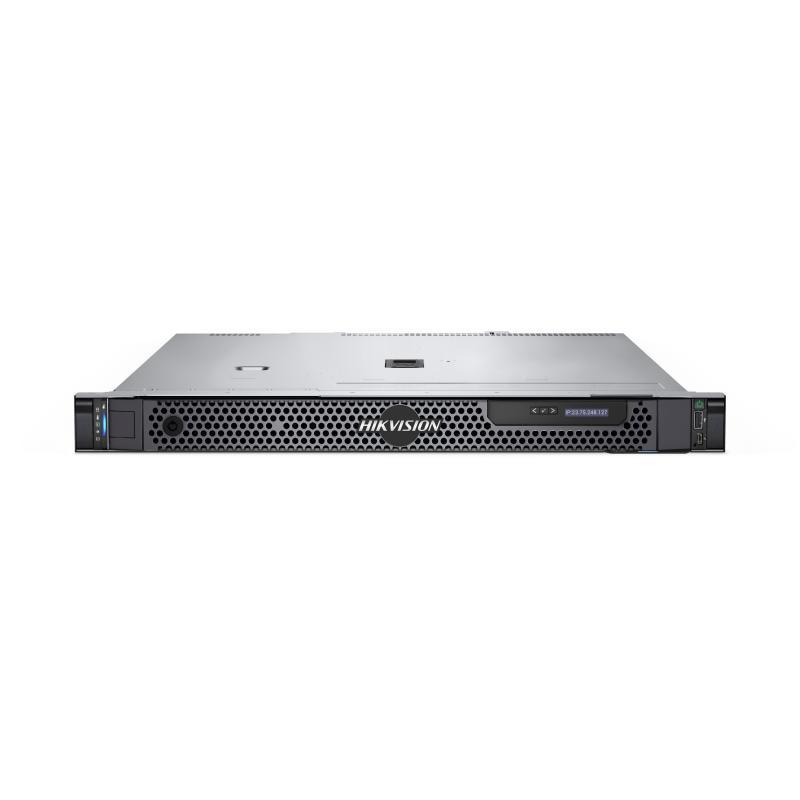

Rackmount VMS Server
Features:
- HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
- 1) Plug and play: No additional activation is required, and it is ready to use right out of the box
- 2) Easy to use: Pre-installed operating system, easy to operate and deploy
- All-in-one software and hardware, no activation required, easy delivery and reliable service
- 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
- 2) Reliable after-sales service: 24/7 platinum after-sales service
| Specification | |
| Software Specification | |
| Video Management | 64ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function) |
| Access Controls | Not included; can be expanded into 1024 (Including Doors and Outdoor Station) |
| Indoor Station | Not included; can be expanded into 5000 |
| ANPR Cameras | Not included; can be expanded into 1024 |
| Lanes of Entrance & Exit | Not included; can be expanded into 40 |
Cameras with Face Capture Function | Not included; can be expanded into 3000 |
| Alarm Panel | Not included; can be expanded into 1024 |
| Smart Walls | Not included; can be expanded, best performance：Smart Walls：32；Decoding devices：32 |
| Attendance | Not included, can be expanded by extra license |
| Other Functions | Please refer to Hikcentral Professional related document |
| Hardware Specifications | |
| CPU | E-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads |
Memory | Standard Config：1 × 16GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM |
Hard Disks | Standard Config：2×1TB 3.5 inch SATA HDD Scalability：2×22TB 3.5 inch SATA/SAS HDD |
Storage Controller | Standard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache |
| Supported Operating Systems | WinSvr2019 multilingual version pre-installed |
| PCIe Slots | Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots |
| Management | |
| Remote Manage | iDrac9 Enterprise |
| OpenManage™ Software | Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager) |
Integrations and Connections | Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus |
| Security | Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
| Ports | |
| USB 3.0 | 0（Front）+1（Rear） |
| USB 2.0 | 1（Front）+1（Rear） |
| Ethernet Port | 2 x LAN 10/100/1000 |
| VGA | 1 |
iDRAC Direct (Micro-AB USB) Port | 1 |
| iDRAC Ethernet Port | 1 |
| Manager Port | 1 |
| General | |
| Net Weight | 12.2 kg (26.9 lb) |
| Gross Weight | 18.5 kg (40.79 lb) |
| Dimension (W × H × D) | 482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'') |
| Package Dimensions (W × H × D) | 595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'') |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A |
| Form Factor | 1U Rack |
