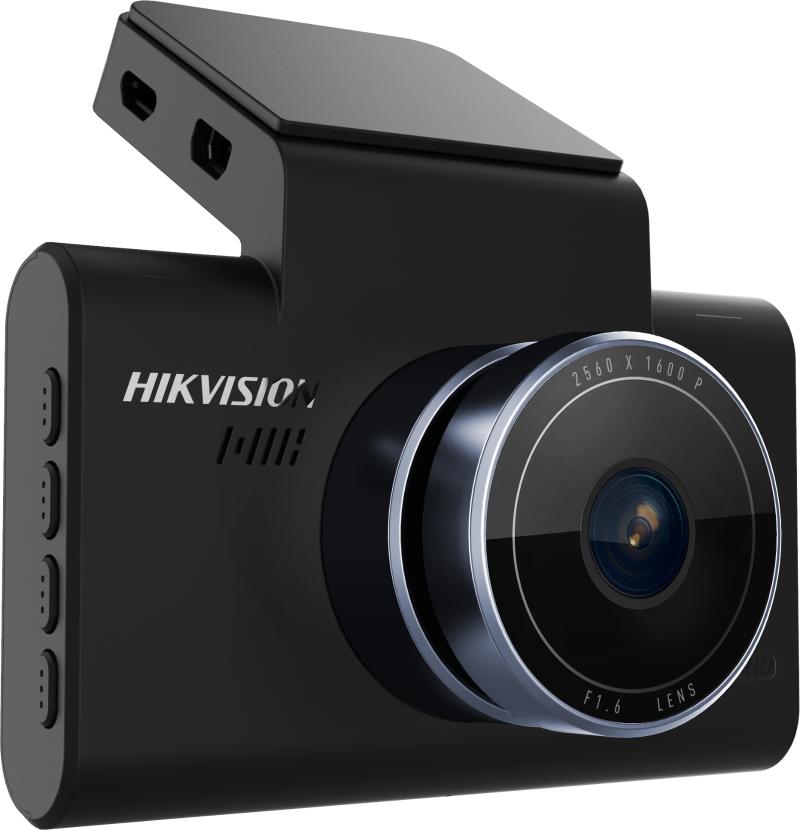

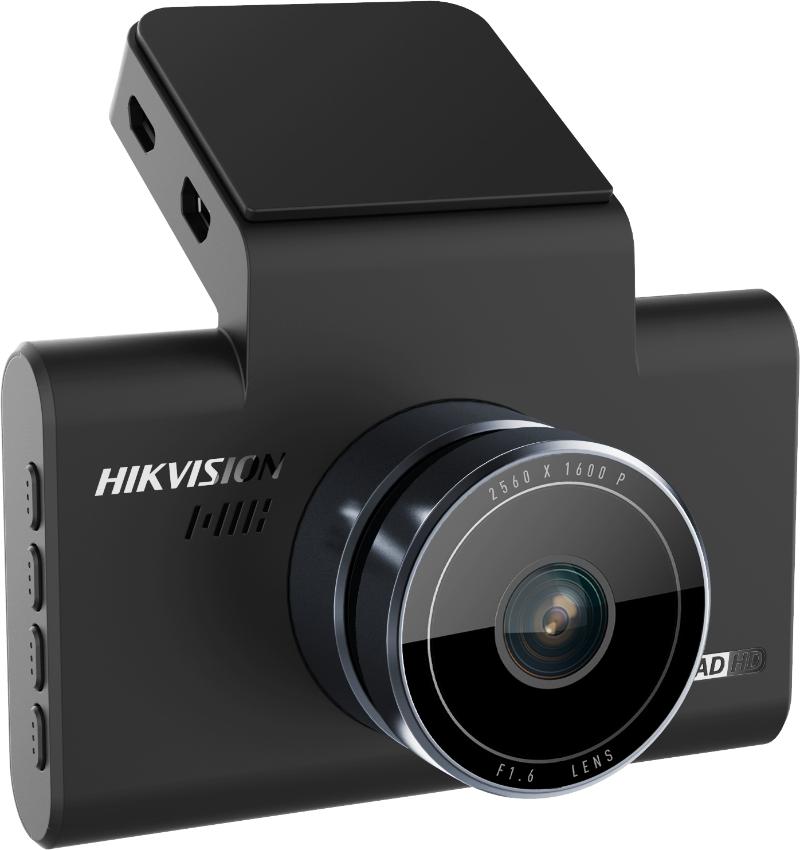

HIKVISION - AE-DC5313-C6 - Dash camera with screens
Part number:
AE-DC5313-C6
Price:
Dash Camera with Screens
Features:
- Up to 1600P high resolution, gold wide angle up to 130°.
- F1.6 super large aperture offer a perfect night image.
- Support built-in MIC and speaker for audio in and out.

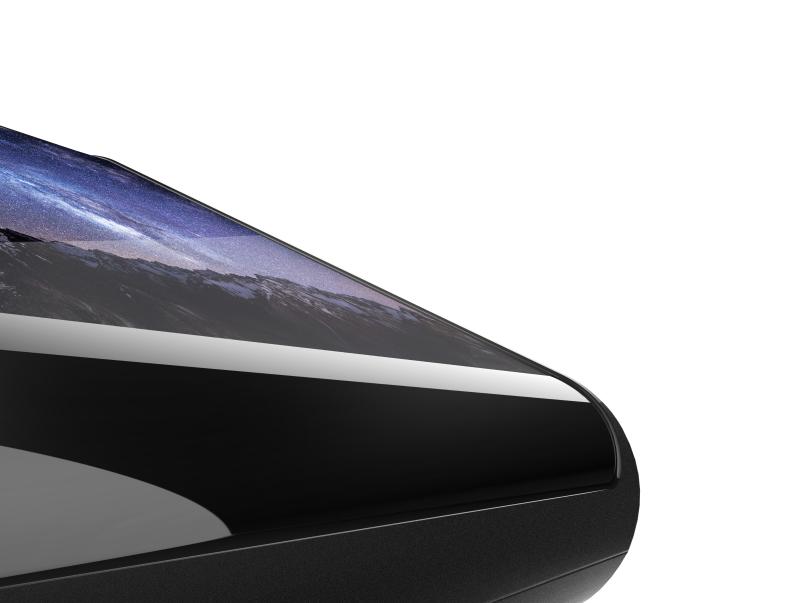

- Display: 3 inches IPS screen, Resolution : 640*480.
- Built-in WIFI module and WIFI AP function supported.
- Built-in G-Sensor module, support video recording linkage at car crash or strong vibration. (Linkage video record can be configured be no-overwritten)
- TF card for video recording, up to 128GB. (Overwriting supported)
- Phone App: live view, record playback and parameter configuration.
- Voice recognition supported : Snapshot, Recording on, Recording off.
- ADAS supported: “Traffic light turn green”, “Speed limit recognition”, “Front car start remind”.
- Easy installation and user friendly, plug and play. (Automatically recording after power on)
- Low power consumption and high performance.
| Specification | |
| Camera | |
| Image Sensor | OS 05A20 |
| Angle Adjustment | Adjustable up and down, left and right angles 15° |
| Power-off Memory | YES |
| Lens Type | G+P |
| Aperture | F1.6 |
| Wi-Fi | |
| Frequency Range | 2412–2472 MHz |
| Channel Bandwidth | 20 MHz / 40 MHz |
| Image | |
| Wide Dynamic Range (WDR) | YES |
| Image Enhancement | YES |
| Interface | |
| Built-in Microphone | YES |
| Built-in Speaker | YES |
| Extension Interface | Mini USB (4G) |
| General | |
| GPS | NO |
| WiFi | 2.4G |
| Wi-Fi Support | YES |
| Resolution | 1600P@30fps, 1600P@25fps; 1440P@30fps, 1440P@25fps; 1080P@60fps, 1080P@30fps, 1080P@25fps |
| Max. Resolution | 1600P@30fps |
| Video Compression | H.265 |
| FOV | 130° (D), 109° (H) |
| Camera Dimension | 90mm x 88mm x 70mm (3.6" x 3.5" x 2.8") |
| Camera Weight | Approx. 125g (0.3 lb) |
| Software Reset | YES |
| Online Upgrade | YES |
| Power Consumption | Approx. 3.5 W |
| Power Supply | 5V DC, 2 A |
| Power Interface | Micro |
| Working Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Working Humidity | 95% (Max) |
| Storage | TF card, 32GB to 128 GB |
| Display | |
| Size | 3 inches (640×480) |
| OSD | Display time, date, etc. |
| Image Format | JPEG |
| Local Storage | NO |
| ADAS | YES |
| Speech Recognition | YES |
