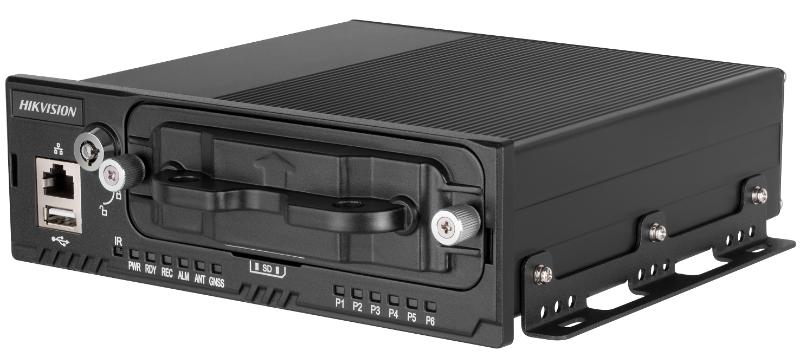

HIKVISION - AE-MN5043(1T)(M12) - 4 channel M12 mobile NVR
Part number:
AE-MN5043(1T)(M12)
Price:
4-ch , H.264/H.265, 2 x HDD/SSD Mobile NVR
Features:
- 4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.
- Up to 5 MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
- Pluggable dummy HDD for HDD/SSD with up to 2 TB capacity.
- User-friendly GUI providing easy and flexible operations.
- Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
- Wide-range power input (+9 VDC to +32 VDC).
- Power-off protection prevents key data loss.
- Aluminum die-cast chassis with no fan design well adaptable to working environment.
- Software-based firewall supported.
- Support accessing via WEB browser.
- Support recording backup on redundant HDD/SSDs.
| Specification | |
| Video/Audio Input | |
| Two-way Audio | 1, integrated in EXT.DEV interface |
| IP Camera | 4-ch connected via PoE interfaces and 4-ch extendable via PoE switch |
| Video/Audio Output | |
| Audio Output | 1, integrated in EXT.DEV interface |
| Video Output | Main output: 1, integrated in EXT.DEV interface; VGA: 1 |
| Encoding/Decoding Parameters | |
| Video Compression | H.265/H.264 |
| Audio Compression | G.711a/G.711u/G.722.1/G.726 |
| Audio Bit Rate | 16 Kbps |
| Stream Type | Video, video & audio |
| Dual Stream | Supported |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| Encoding Resolution | Main stream: 1080P/720P/WD1/4CIFSub-stream: 720P/WD1/4CIF/2CIF/CIF |
| Wireless Network | |
| Wi-Fi | WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna needed for 802.11B/G/N, 2 for 802.11AC) |
| 3G/4G Dialing | 1 × 4G card slot, 1 × FAKRA antenna |
| Storage | |
| SD Card Storage | 1 × SD card, up to 512 GB (not for baseline; note SD card capacity when ordering) |
| HDD/SSD | 2 × 2.5 inch HDD/SSD; SSD up to 4 TB, HDD up to 2 TBData export via optional converterHard Disk Case with heating function (optional) |
| Auxiliary Interface | |
| Network Interface | Front: 1 × 10M/100M RJ45Rear: 1 × 10M/100M 6-pin aviation connectorNote: Front and rear ports are on different network segments; aviation cable to RJ45 is optional |
| Alarm Input | 4 high/low level signal inputs, 1 pulse input, 1 button input |
| Alarm Output | 2 relay signal outputs |
| Sensor-in | 4 high/low level signal inputs |
| Serial Port | 1 × RS-232 (optional harness), 1 × RS-422 (in EXT.DEV interface) |
| Positioning | |
| GNSS | GPS & GLONASS, 1 × FAKRA antenna |
| Sensor | |
| G-Sensor | Built-in |
| General | |
| Power Supply | +9 to +36 VDC |
| Product Dimension | 206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37") |
| Power Consumption | Standby: ≤ 0.5 WFull load: ≤ 55 WWithout peripheral/storage: ≤ 20 W |
| Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Operation Method | Mouse, IR remote, Web control, touchscreen |
| Weight (Without Storage Media) | 1.66 kg (3.67 lb.) |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498:2010, EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021) |
| Safety | CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020) |
| Environment | CE-RoHS (2011/65/EU and amendment 2015/863/EU) |
| Automotive and Railway | EN50155:2021, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008, ISO 13732-1:2006, EN61373:2010EN45545 (hl3); E-MARK (ECE R10) |
