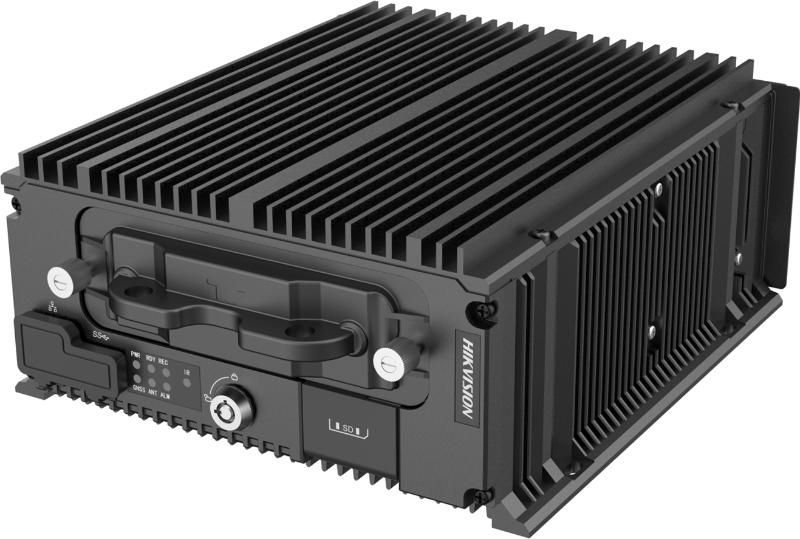

RJ45 Mobile NVR 8 Channel
Features:
- 8-ch IP cameras connectable via PoE interfaces, and 8-ch IP cameras extendable via PoE switch.
- Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
- Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
- User-friendly GUI providing easy and flexible operations.
- Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
- Wide-range power input (+9 VDC to +36 VDC).
- Power-off protection prevents key data loss.
- Aluminum die-cast chassis with no fan design well adaptable to working environment.
- Software-based firewall supported.
- Support accessing via WEB browser.
- Support recording backup on redundant HDD/SSDs.
| Specification | |
| Video/Audio Input | |
| Two-way Audio | 1, integrated in EXT.DEV interface |
| IP Camera | 8-ch connected via PoE interfaces |
| Video/Audio Output | |
| Audio Output | 1, integrated in EXT.DEV interface |
| Video Output | Main output: 1, integrated in EXT.DEV interface. VGA: 1 |
| Encoding/Decoding Parameters | |
| Video Compression | H.265,H.264 |
| Audio Compression | G.711a/G.711u/G.722.1/G.726 |
| Audio Bit Rate | 16 Kbps to 64Kbps |
| Stream Type | Video, video & audio |
| Dual Stream | Supported |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
| Encoding Resolution | Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF |
| Wireless Network | |
| Dial-up | 1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional) |
| Storage | |
| SD Card Storage | 1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering） |
| HDD/SDD | 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional) |
| Auxiliary Interface | |
| Network Interface | Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M RJ45 Note：The front and rear network ports are at same network segments |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input |
| Alarm Output | 2 relay signal outputs |
| Wi-Fi Antenna Interface | WI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna, WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11ACmodule.) |
| Sensor-in | 4 high/low level signal inputs |
| Serial Number Interface | 2 × RS-232(harness is optional). 1 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface) |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector) |
| Positioning | |
| GNSS (Global Navigation Satellite System) | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna |
| Sensor | |
| G-Sensor | Built-in |
| General | |
| Product Dimension | 202 mm × 267.6 mm × 93.9 mm (7.95" × 10.54" × 3.7") |
| Power Supply | +9 to +36 VDC |
| Power Consumption | Standby: ≤ 0.5 W Full load: ≤ 75 W Note: Without peripheral and storage media ≤ 20 W |
| Operating Temperature | -25 °C to +70 °C (-13 °F to +158°F) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Operation Method | Mouse, IR remote control, Web control, and display screen |
| Weight (Without Storage Media) | 3.13 kg (6.9 lb.) |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015+A1:2020+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021); |
| Safety | CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 ); |
| Environment | CE-RoHS (2011/65/EU and amendment 2015/863/EU) |
| Automotive and Railway | E-MARK (ECE R10) |
