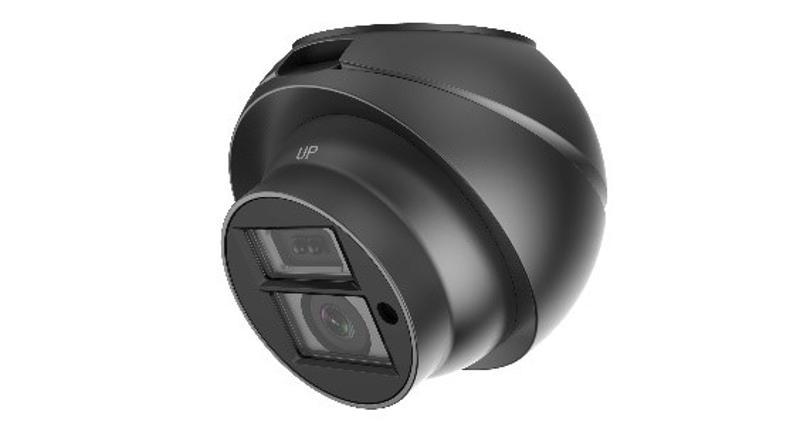

HIKVISION - AE-VC222T-ITS(2.1mm) - analog mobile camera
Part number:
AE-VC222T-ITS(2.1mm)
Price:
1080P 1/2.9”CMOS infrared array conch analog camera
Features:
- Adopts progressive scan CMOS to prevent motion image aliasing
- Supports HD coaxial output with the resolution 1080P
- Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
- Supports auto day & night switch
- Adopts auto electronic shutter to adapt to different environment
- Support built-in mic and audio input
- Shock-proof design and aviation output plug
| Specification | |
| Camera | |
| Image Sensor | Progressive Scan CMOS |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 s to 1/50,000 s |
| FOV | 2.1 mm, horizontal FOV 117°, vertical FOV 66°, diagonal FOV 143° 2.8 mm, horizontal FOV 96°, vertical FOV 51°, diagonal FOV 115° 3.6 mm, horizontal FOV 75°, vertical FOV 44°, diagonal FOV 90° |
| Lens Mount | M12 |
| Angle | Horizontal: 0 to 60°, vertical: 0 to 50°, rotate: 0 to 360° |
| Day & Night | Electronic |
| Frame Rate | 1080P @25fps |
| Synchronization | Internal |
| S/N Ratio | 42 dB |
| Interface | |
| Video Output | 1, Vp-p Composite Output (aviation plug) |
| Audio Input | Build-in MIC |
| Audio Output | 1, aviation plug (linear resistance: 1 kΩ) |
| Aviation Pin Order | 1: Video, 2: Audio, 3: Power, 4: Ground |
| General | |
| Working Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Working Humidity | ≤ 90% |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 2.2 W |
| IR Distance | 10 m |
| Dimension | 74 mm × 64.5 mm × 71.1 mm (2.9" × 2.5" × 2.8") |
| Weight | 200 g (0.44 lb.) |
