Hikvision - DS-2AE5232T-A3 - 5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome
Part number:
DS-2AE5232T-A3
Price:
5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome
Features:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.2, AGC ON) B/W: 0.001 Lux @(F1.2, AGC ON) |
| Shutter Speed | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Zoom | 32 × optical, 16 × digital |
| Lens | |
| Focal Length | 4.8 mm to 153 mm, 32 × optical |
| FOV | Horizontal FOV: 55.6° to 2.04° (wide to tele) Vertical FOV: 32.4° to 1.14° (wide to tele) Diagonal FOV: 63° to 2.34° (wide to tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.2 to F4.4 |
| Zoom Speed | Approx. 5.6 s (optical, wide to tele) |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | -5° to 90° (auto flip) |
| Pan Speed | Pan manual speed: 0.1° to 250°/s Pan preset speed: 250°/s |
| Tilt Speed | Tilt manual speed: 0.1° to 150°/s Tilt preset speed: 150°/s |
| Proportional Pan | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Preset Freezing | Yes |
| Patrol Scan | 10 patrols, up to 32 presets for each patrol |
| Pattern Scan | 5 patterns, record time over 10 minutes for each scan |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Status Display | Yes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Power-off Memory | Yes |
| Video | |
| Frame Rate | 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
| Network | |
| Protocols | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| Image | |
| Image Settings | AGC, white balance |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable privacy masks |
| Regional Focus | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| General | |
| Power | 24 VAC, max. 18 W |

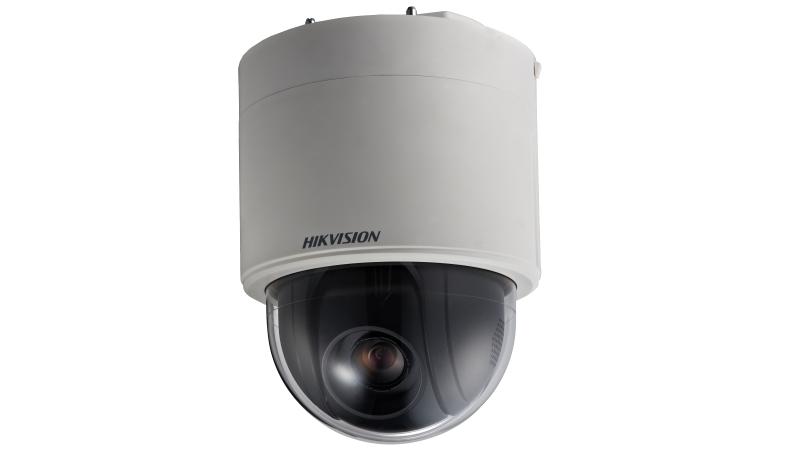

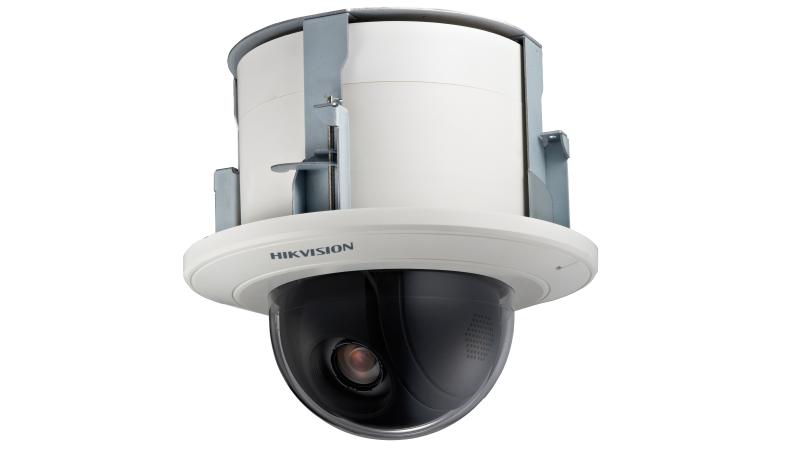

| Dimension | DS-2AE5232T-A3(D) (Indoor): Φ 156 mm × 243 mm (Φ 6.14" × 9.57") DS-2AE5232T-A3(D) (In-Ceiling): Φ 156 mm × 236 mm (Φ 6.14" × 9.29") |
| Weight | Approx. 3 kg (6.61 Ib.) |
| Operating Condition | -10° C to 50° C (14° F to 122° F). Humidity 90% or less |
| Language | English |
| Approval | |
| Protection | TVS 4,000 V lightning protection, surge protection and voltage transient protection |
