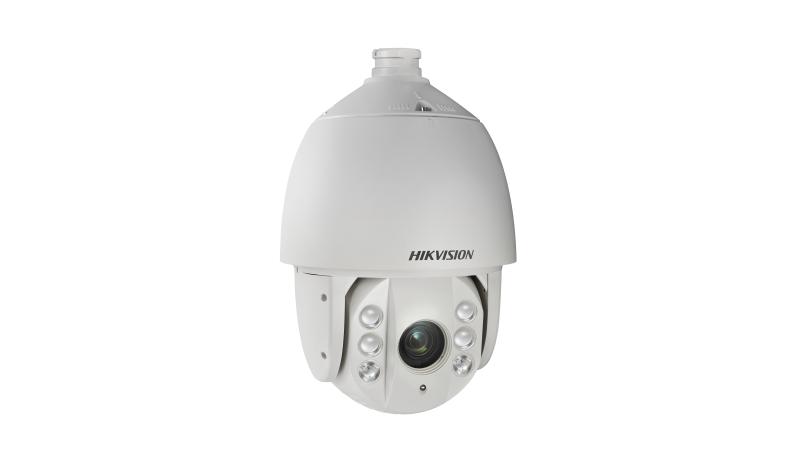

Hikvision - DS-2AE7232TI-A - 7-inch 2 MP 32X Powered by DarkFighter IR Analog Speed Dome
Part number:
DS-2AE7232TI-A
Price:
7-inch 2 MP 32X Powered by DarkFighter IR Analog Speed Dome
Features:
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Shutter Speed | PAL: 1/1 s to 1/10,000 s<br>NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Min. Illumination | Color: 0.005 Lux @(F1.2, AGC ON)<br>B/W: 0.001 Lux @(F1.2, AGC ON)<br>0 lux with IR |
| Zoom | 32 × optical, 16 × digital |
| Lens | |
| FOV | Horizontal FOV: 54.2° to 1.97° (wide to tele) |
| Focal Length | 4.8 mm to 153 mm, 32 × optical |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.2 to F4.4 |
| Zoom Speed | Approx. 3.5 s (optical, wide to tele) |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 150 m |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan manual speed: 0.1° to 160°/s<br>Pan preset speed: 160°/s |
| Tilt Speed | Tilt manual speed: 0.1° to 120°/s<br>Tilt preset speed: 120°/s |
| Proportional Pan | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol Scan | 10 patrols, up to 32 presets for each patrol |
| Pattern Scan | 5 patterns, record time over 10 minutes for each scan |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Status Display | Yes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Power-off Memory | Yes |
| Video | |
| Frame Rate | 50 Hz: 25 fps @(1920 × 1080)<br>60 Hz: 30 fps @(1920 × 1080) |
| Network | |
| Protocols | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| Image | |
| Image Settings | AGC, white balance |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable privacy masks |
| Regional Focus | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 | Half-duplex mode<br>Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| General | |
| Power | 24 VAC, max. 40 W (IR: 14 W) |
| Dimension | Ø 220 mm × 353.4 mm (Ø 8.66" ×13.91") |
| Weight | Approx. 4.5 kg (9.92 lb.) |
| Operating Condition | -30° C to 65° C (-22° F to 149° F). Humidity 90% or less |
| Language | English |
| Approval | Protection: IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, surge protection and voltage transient protection |
