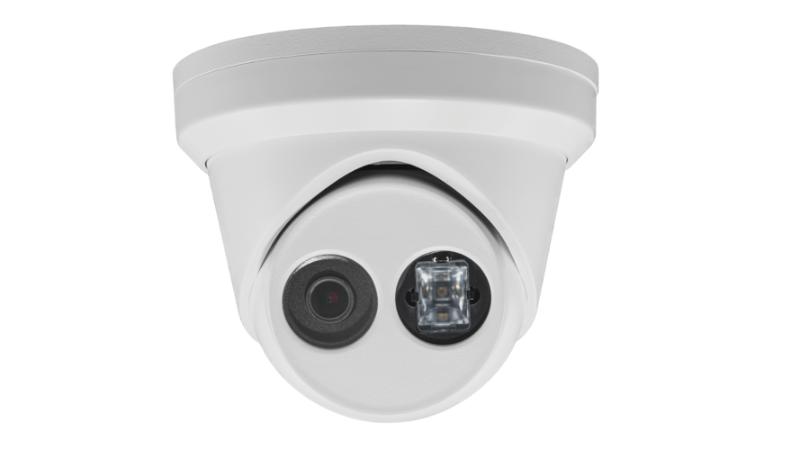

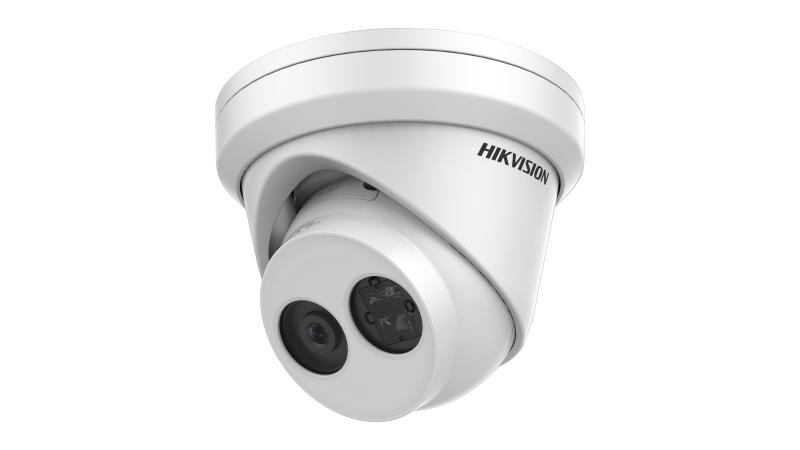

HIKVISION - DS-2CD2343G0-I 2.8mm - TURIP67 4MP28MM WDR POE/12
Part number:
DS-2CD2343G0-I 2.8mm
Price:
4 MP WDR Fixed Turret Network Camera with Build-in Mic, 2.8mm
Features:
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -U: built-in microphone for real-time audio security
- Water and dust resistant (-I: IP67/-IU: IP66)
- Robust structure design with full metal materials
| Specification | |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8 mm |
| FOV | See details below* |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz: 25fps (multiple resolutions) 60Hz: 30fps (multiple resolutions) |
| Sub Stream | 50Hz: 25fps (640×480, 640×360, 320×240) 60Hz: 30fps (640×480, 640×360, 320×240) |
| Third Stream | 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
| Video Compression | Main: H.265/H.264 Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding | H.264 and H.265 encoding |
| Audio | |
| Audio Compression | G722.1, G.711, G726, MP2L2, PCM, MP3 |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1/G.726), 32–192Kbps (MP2L2), 8–320Kbps (MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (S, G, T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS |
| User/Host | Up to 32 users; Admin, Operator, User |
| Network Storage | Supports MicroSD (128G), local storage, NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+ (Plug-in), Chrome 57+, Firefox 52+, Safari 11+ (Plug-in free) |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP conflict, illegal login, HDD full/error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Target Cropping | No |
| DNR | 3D DNR |
| Image Enhancement | BLC, 3D DNR, HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance (via software/web) |
| Interface | |
| On-board Storage | Built-in MicroSD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Event | |
| Basic Event | Motion detection, tampering, network disconnect, IP conflict, login issues, HDD full/error |
| Smart Event | Line crossing, intrusion, face detection |
| Face Detection | Yes |
| General | |
| Linkage Method | Recording (card/network), capture upload (FTP, HTTP, NAS, Email), notification (HTTP, ISAPI, Email) |
| Firmware Version | 5.6.3 |
| General Functions | Anti-flicker, 3 streams, heartbeat, mirror, privacy mask, password reset via email, pixel counter, HTTP listening |
| Operating Conditions | -30 °C to +60 °C, ≤95% RH (non-condensing) |
| Power Supply | 12VDC ±25%, Φ5.5 mm plug; PoE (802.3af, class 3) |
| Power Consumption | 12VDC: 0.5A, max 6W; PoE: 36–57V, 0.2–0.1A, max 7.5W |
| Dimensions | Camera: Φ127.3 × 95.9 mm Package: 150 × 150 × 141 mm |
| Weight | Camera: 610g With package: 880g |
| Approval | |
| Protection | Without -U: IP67 With -U: IP66 (IEC 60529-2013) |
