HIKVISION - DS-2CD2347G1-L 4mm - OT TR 4mm 4MP 24Hr*7 color
Part number:
DS-2CD2347G1-L 4mm
Price:

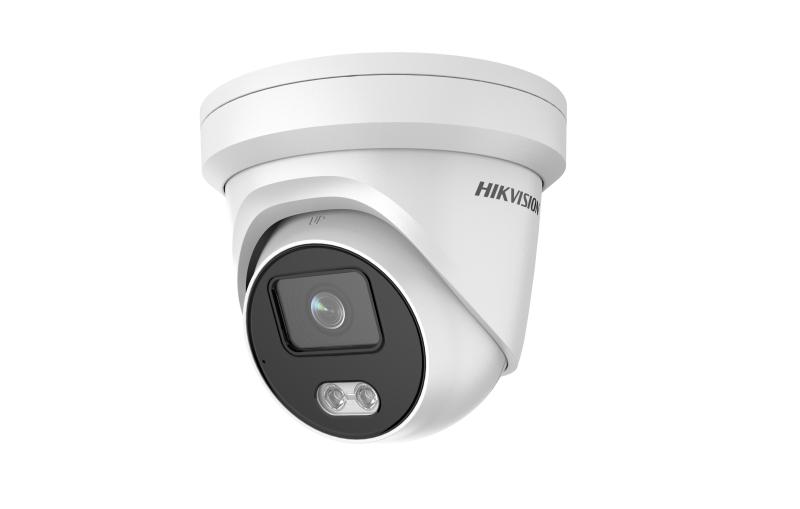

4 MP ColorVu Fixed Turret Network Camera, 4mm
Features:
- High quality imaging with 4 MP resolution
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB WDR technology
- -U: Built-in microphone for real-time audio security
- Easy installation with Power over Ethernet (PoE) technology
| Specification | |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0014 @ (F1.0, AGC ON), B/W: 0 Lux with Light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Aperture | F1.0 |
| Focus | Fixed |
| Lens Type & FOV | 2.8 mm: H-FOV 109°, V-FOV 55°, D-FOV 138°; 4 mm: H-FOV 94°, V-FOV 48°, D-FOV 115°; 6 mm: H-FOV 57°, V-FOV 31°, D-FOV 67° |
| Lens Mount | M16 |
| Illuminator | |
| White Light Range | Warm white LEDs (3000K), up to 30m |
| Video | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50 Hz: 25 fps (various resolutions); 60 Hz: 30 fps (same resolutions) |
| Sub Stream | 50 Hz: 25 fps (640×480, 640×360, 320×240); 60 Hz: 30 fps (same) |
| Third Stream | 50 Hz: 25 fps (1280×720, 640×360, 352×288); 60 Hz: 30 fps (1280×720, 640×360, 352×240) |
| Video Compression | H.265+/H.265/H.264+/H.264 (Main); H.265/H.264/MJPEG (Sub); H.265/H.264 (Third) |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Feature-Set | |
| Smart Event | Line crossing, intrusion, object removal, unattended baggage, Face Detection |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1/G.726), 32–160Kbps (MP2L2) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz / 16kHz / 32kHz / 44.1kHz / 48kHz |
| Network | |
| Network Storage | microSD/SDHC/SDXC (128 GB), local storage, NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| API | ONVIF (PROFILE S, G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, User |
| Client | iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
| Web Browser | Plug-in required: IE8+, Chrome 41–44, Firefox 30–51, Safari 8–11; Plug-in free: Chrome 45+, Firefox 52+ |
| Alarm Trigger | Motion, video tampering, network disconnect, IP conflict, illegal login, HDD full/error |
| Exception Detection | Scene change detection |
| Image | |
| Image Enhancement | BLC / 3D DNR / HLC |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, AGC, white balance (adjustable via client/web) |
| Day/Night Switch | Day/Night |
| DNR | 3D DNR |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 audio input (built-in mic), mono sound (-U) |
| Hardware Reset | Yes |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
| Firmware Version | V5.5.82 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP filter |
| Startup and Operating Conditions | -30°C to +60°C (-22°F to +140°F), humidity ≤95% (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial plug, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W; PoE: 36–57 V, 0.2–0.1 A, max. 7.5 W |
| Camera Material | Camera: Metal; Trim ring: Plastic |
| Camera Dimension | Camera: Φ138.3 × 125.2 mm (5.4" × 4.9"); With package: 170 × 170 × 150 mm (7" × 7" × 5.9") |
| Camera Weight | Camera: 575 g (1.3 lb); With package: 833 g (1.8 lb) |
| Approval | |
| Protection | -L: IP67; -LU: IP66 |
