HIKVISION - DS-2CD2383G2-IU 2.8mm BLACK - TR IP67 8MP28MM WDR POE/12
Part number:
DS-2CD2383G2-IU 2.8mm BLACK
Price:

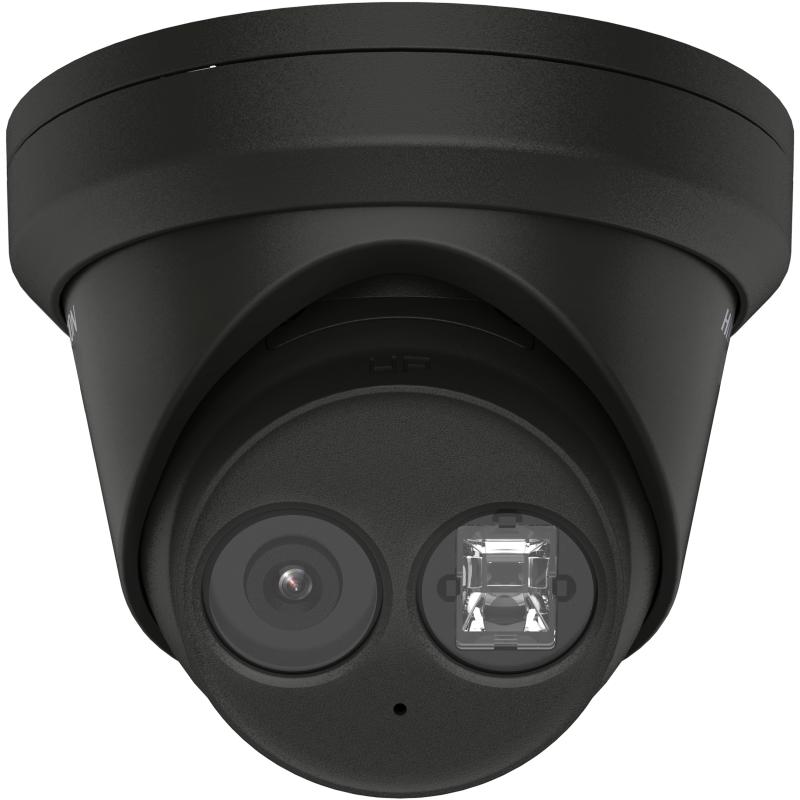

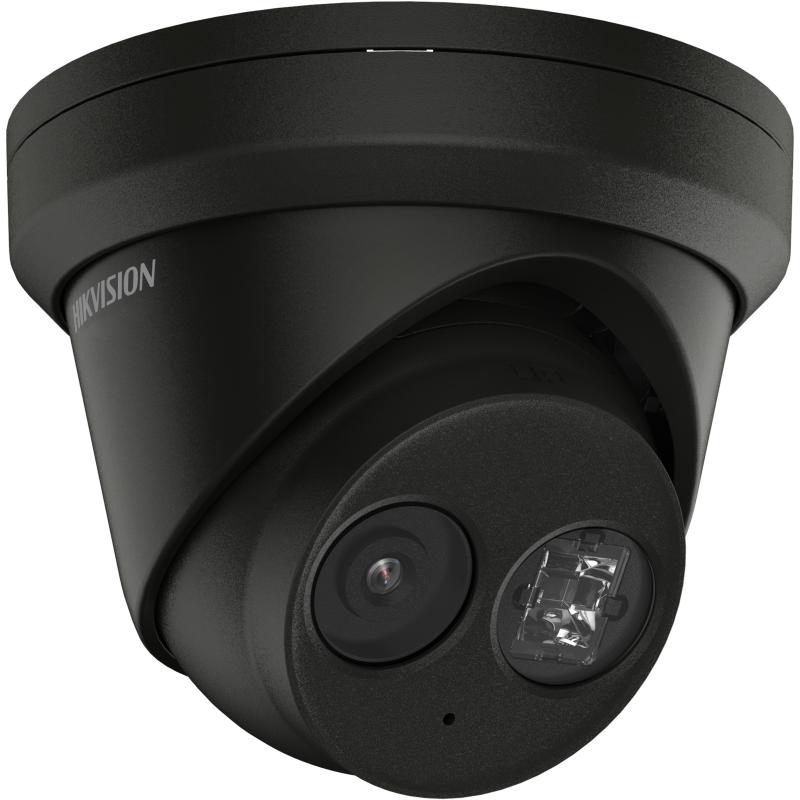

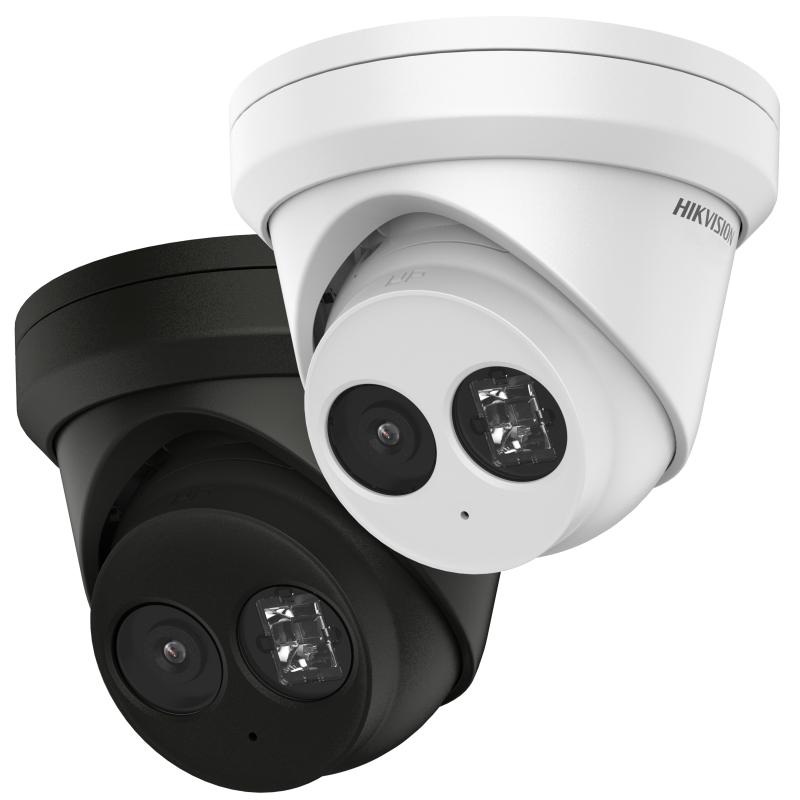

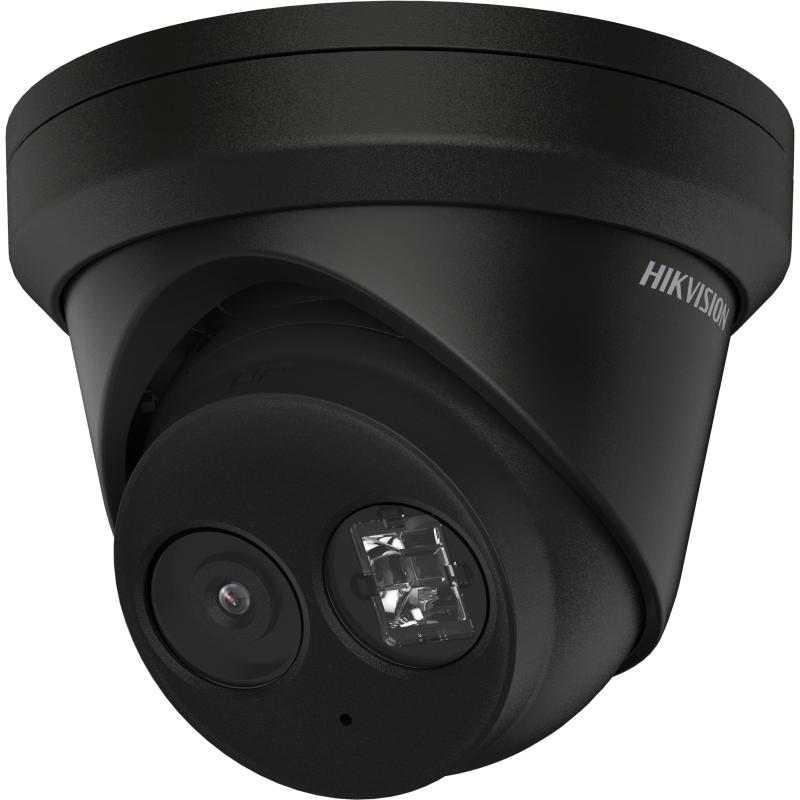

8 MP AcuSense Fixed Turret Network Camera, Black 2.8mm
Features:
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focusing on human and vehicle classification based on deep learning
- -U: Built-in arrayed dual-microphone for real-time audio security
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 107°, V 57°, D 128°4 mm: H 87°, V 46°, D 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 × 2160) / 25 fps (3200 × 1800, etc.)60 Hz: 20 fps (3840 × 2160) / 30 fps (3200 × 1800, etc.) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, etc.)60 Hz: 30 fps (1280 × 720, etc.) |
| Third Stream | 50/60 Hz: 10 fps (up to 1920 × 1080) (*under certain settings) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 |
| Video Compression | Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEGThird: H.265/H.264 |
| ROI | 1 fixed region for main and sub-stream |
| Audio | |
| Audio Type | -U: Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | Varies by codec (8 to 320 Kbps) |
| Audio Sampling Rate | 8/16/32/44.1/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Protocols | Full suite including TCP/IP, HTTP, FTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK |
| User/Host | Up to 32 users, 3 levels |
| Security | Password, HTTPS, IP filter, TLS, audit log, etc. |
| Network Storage | NAS, ANR, memory card encryption |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE (plugin), Chrome/Firefox (plugin-free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, etc. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M |
| On-Board Storage | microSD/SDHC/SDXC up to 512 GB |
| Built-in Microphone | -U: Yes |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion, tampering, exception |
| Smart Event | Line crossing, intrusion, face detection |
| Linkage | FTP/NAS/email/record/capture |
| General | |
| Power | 12 VDC ±25%, PoE (802.3af, Class 3) |
| Dimension | Ø127.3 mm × 95.9 mm (5.0 × 3.8") |
| Package Dimension | 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 891 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH |
| Operating Conditions | -30 °C to 60 °C, ≤95% RH |
| Language | 33 languages supported |
| General Function | Heartbeat, anti-flicker, email reset, pixel counter |
| Approval | |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67 (IEC 60529-2013) |
