HIKVISION - DS-2CD2563G0-IS 4mm - DM IP66 6MP4MM WDR POE/12
Part number:
DS-2CD2563G0-IS 4mm
Price:

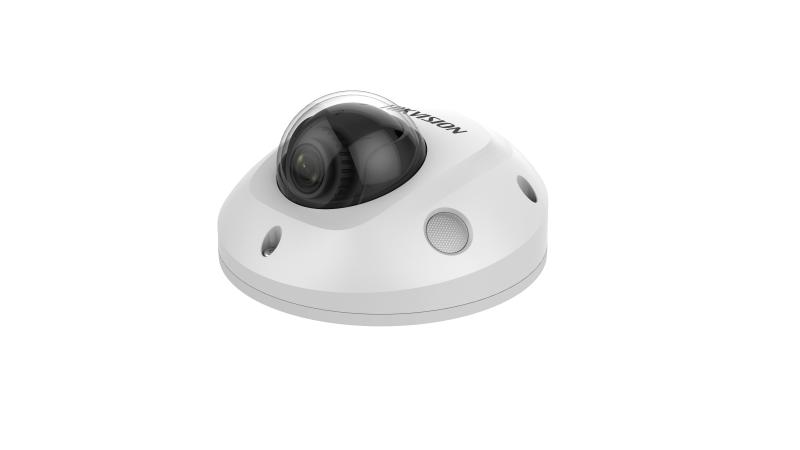

6 MP Outdoor WDR Fixed Mini Dome Network Camera
Features:
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP66) and vandal proof (IK08)
- -W: Wi-Fi connection
- -S: audio and alarm interface available
- Built-in microphone for real-time audio security
- Mini size suitable for limited space
| Specification | |
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8, 4, 6 mm |
| FOV | 2.8 mm: horizontal FOV: 97°, vertical FOV: 67°, diagonal FOV: 121°4 mm: horizontal FOV: 78°, vertical FOV: 53°, diagonal FOV: 98°6 mm: horizontal FOV: 60°, vertical FOV: 41°, diagonal FOV: 76° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 10 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 3072 × 2048 |
| Main Stream | 50Hz: 20 fps (3072×2048, 3072×1728, 2944×1656), 25 fps (2560×1440, 1920×1080, 1280×720)60Hz: 20 fps (3072×2048, 3072×1728, 2944×1656), 30 fps (2560×1440, 1920×1080, 1280×720) |
| Sub-Stream | 50Hz: 25 fps (640×480, 640×360, 320×240)60Hz: 30 fps (640×480, 640×360, 320×240) |
| Third Stream | 50Hz: 25 fps (1280×720, 640×360, 352×288)60Hz: 30 fps (1280×720, 640×360, 352×240) |
| Video Compression | Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 16 kHz, 32kHz, 44.1kHz, 48kHz |
| Audio Compression | G722.1, G711ulaw, G711alaw, G726, MP2L2, PCM |
| Audio Bit Rate | 64Kbps (G.711), 16Kbps (G.722.1), 16Kbps (G.726), 32–192Kbps (MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, G, T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Supports Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | Wired: Hik-Connect, iVMS-4200, Hik-CentralWi-Fi: iVMS-4200, Hik-Central (*Wi-Fi connection with Hik-Connect directly is not possible.) |
| Web Browser | Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Wi-Fi | |
| Encryption Mode | WPA, WPA2 |
| Wi-Fi Protocol | IEEE 802.11b/g/n |
| Frequency Range | 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth | 20 MHz |
| Transfer Rate | 11b: 11 Mbps11g: 54 Mbps11n: up to 150 Mbps |
| Wireless Range | Up to 50 m (performance varies based on actual environment) |
| Image | |
| Day/Night Switch | Auto, Schedule, Day, Night, Triggered by Alarm In (-S) |
| Image Enhancement | BLC, 3D DNR, HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Interface | |
| Audio (-S) | 2 inputs: line in or mic in (built-in microphone)1 output: line out, mono sound, terminal block |
| Alarm (-S) | 1 input: alarm in1 output: alarm out (max. 12 VDC, 30 mA), terminal block |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Face Detection | Yes |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-recordTrigger captured pictures uploading: FTP, HTTP, NAS, EmailTrigger notification: HTTP, ISAPI, alarm output, Email |
| Firmware Version | V5.6.5 |
| Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug powerPoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W |
| Camera Dimension | Ø120 mm × 67.4 mm (Ø4.7" × 2.7") |
| Camera Weight | Approx. 400 g (0.9 lb.) |
| Approval | |
| Protection | Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013) |
