HIKVISION - DS-2CD2623G2-IZS - BL IP67 2MP VF WDRIR
Part number:
DS-2CD2623G2-IZS
Price:

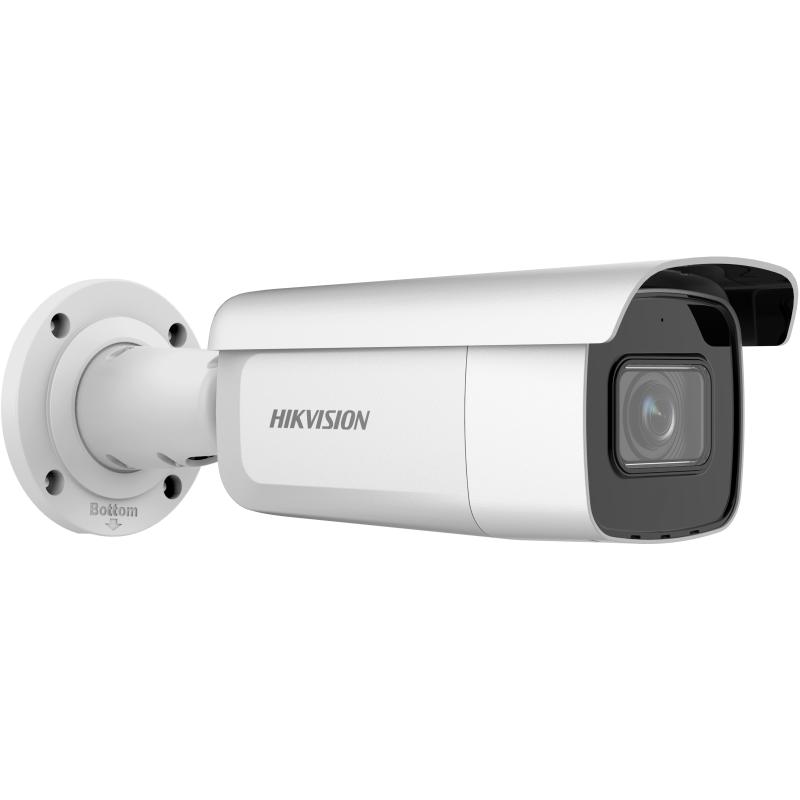

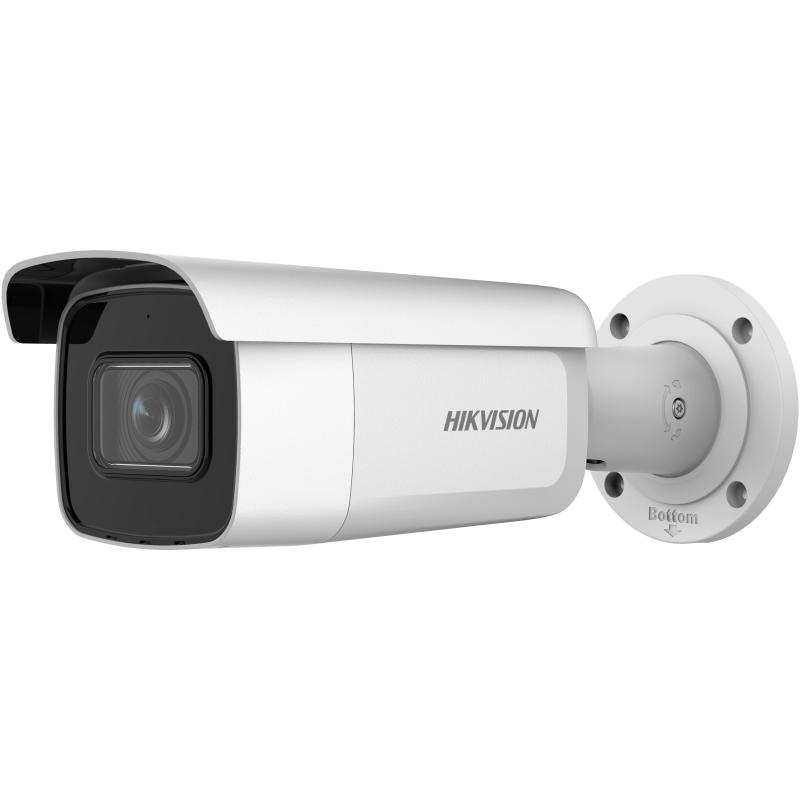

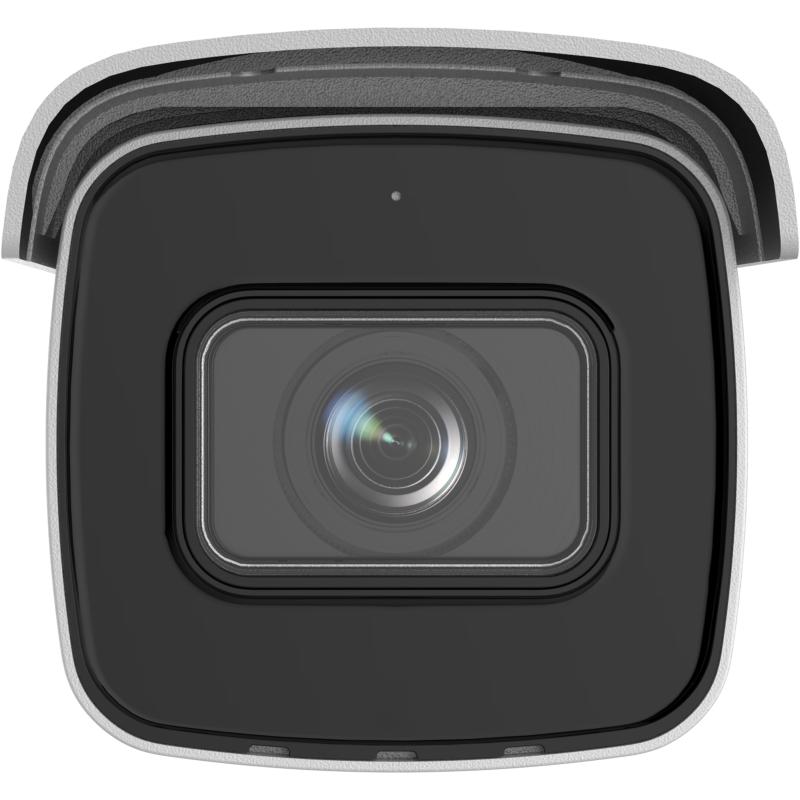

2 MP AcuSense Motorized Varifocal Bullet Network Camera
Features:
- High quality imaging with 2 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Depth of Field | 0.5 m to ∞ |
| Focal Length & FOV | 2.8 to 12 mm, H: 107°–32°, V: 55°–18°, D: 130°–36° |
| Aperture | F1.6 |
| Lens Mount | Ø14 |
| Lens Type | Varifocal lens, motorized, 2.8 to 12 mm |
| Iris Type | Fixed |
| DORI (Detect, Observe, Recognize, Identify) | |
| Wide (2.8 mm) | D: 45.5 m, O: 18.1 m, R: 9.1 m, I: 4.6 m |
| Tele (12 mm) | D: 137.9 m, O: 54.7 m, R: 27.6 m, I: 13.8 m |
| Illuminator | |
| IR Wavelength | 850 nm |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps, 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps, 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50/60 Hz: 10 fps (multiple resolutions) |
| Video Compression | H.265/H.264/H.264+/H.265+/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| SVC | H.264 and H.265 |
| ROI | 1 fixed region for main and sub-stream |
| Audio | |
| Audio Type | Mono |
| Noise Filtering | Yes |
| Sampling Rate | 8/16/32/44.1/48 kHz |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Bit Rate | Various: 16–320 Kbps depending on codec |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, RTP, RTSP, NTP, etc. |
| Users/Hosts | Up to 32 users (Admin, Operator, User) |
| Security | HTTPS, 802.1X, TLS 1.3, watermark, audit log, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser Support | IE 10/11 (plug-in), Chrome 57+, Firefox 52+ (plug-in free) |
| Image | |
| Privacy Mask | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Parameters Switch | Yes |
| Settings | Rotate, Mirror, Brightness, Contrast, etc. |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Interface | |
| Alarm | 1 input, 1 output (max. 24VDC/AC, 1A) |
| Audio I/O | 1 input/output (3.3 Vpp, 2-core, non-equilibrium) |
| On-Board Storage | MicroSD card slot, up to 512 GB |
| Reset Key | Yes |
| Ethernet | 1 RJ45 10/100M self-adaptive |
| Event | |
| Basic Event | Motion detection, video tampering, exception |
| Linkage | FTP/NAS upload, notify center, capture, email, etc. |
| Deep Learning | |
| Perimeter Protection | Line crossing, intrusion (human/vehicle) |
| General | |
| Power | 12 VDC ±25%, 1.08 A, max. 13 W / PoE: IEEE 802.3at Class 4 |
| General Features | Anti-flicker, heartbeat, email reset, pixel counter |
| Storage Conditions | -30°C to 60°C, ≤95% RH (non-condensing) |
| Operating Conditions | Same as storage |
| Material | Aluminum alloy |
| Dimensions | 308.5 × 97.9 × 93 mm (12.2" × 3.9" × 3.7") |
| Package Dimensions | 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1440 g (3.2 lb.) |
| With Package | Approx. 2506 g (5.5 lb.) |
| Languages | 33 languages including English, Spanish, Chinese, etc. |
| Approvals | |
| EMC | FCC, CE-EMC, IC, KC |
| Safety | UL, CB, CE-LVD |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67, IK10 |
