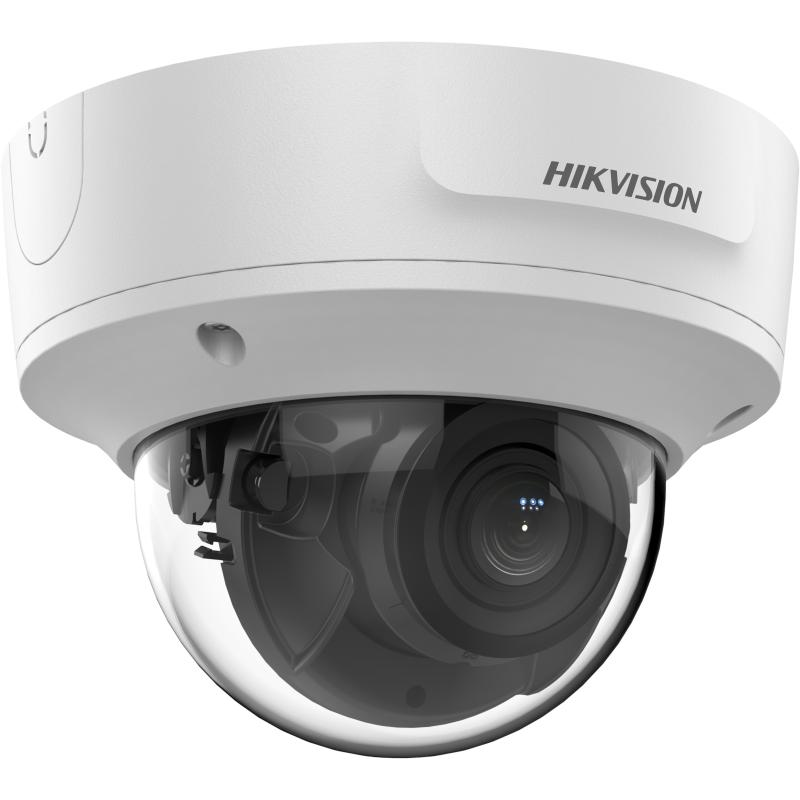

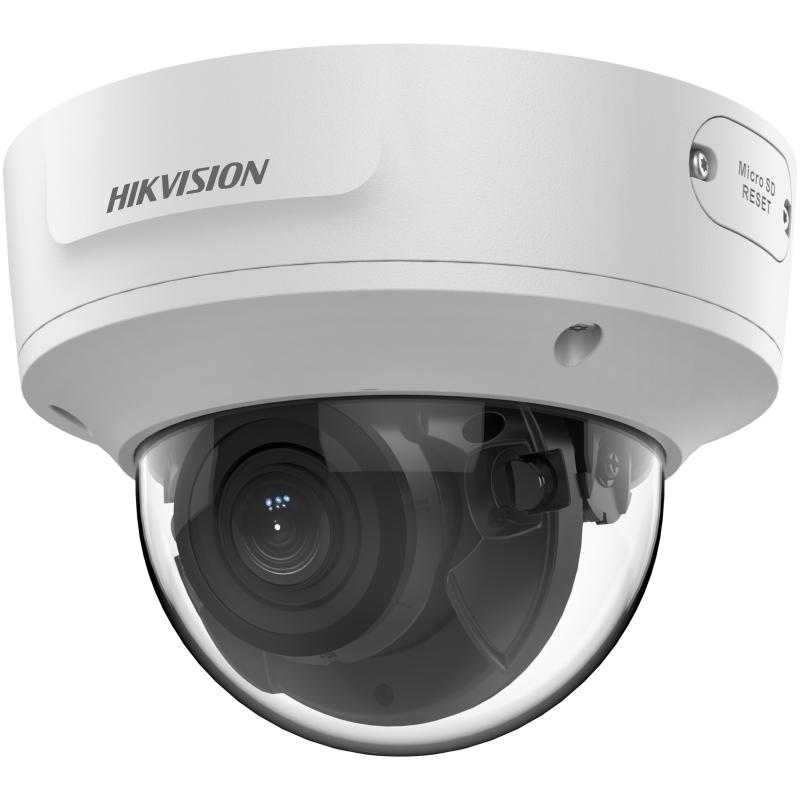

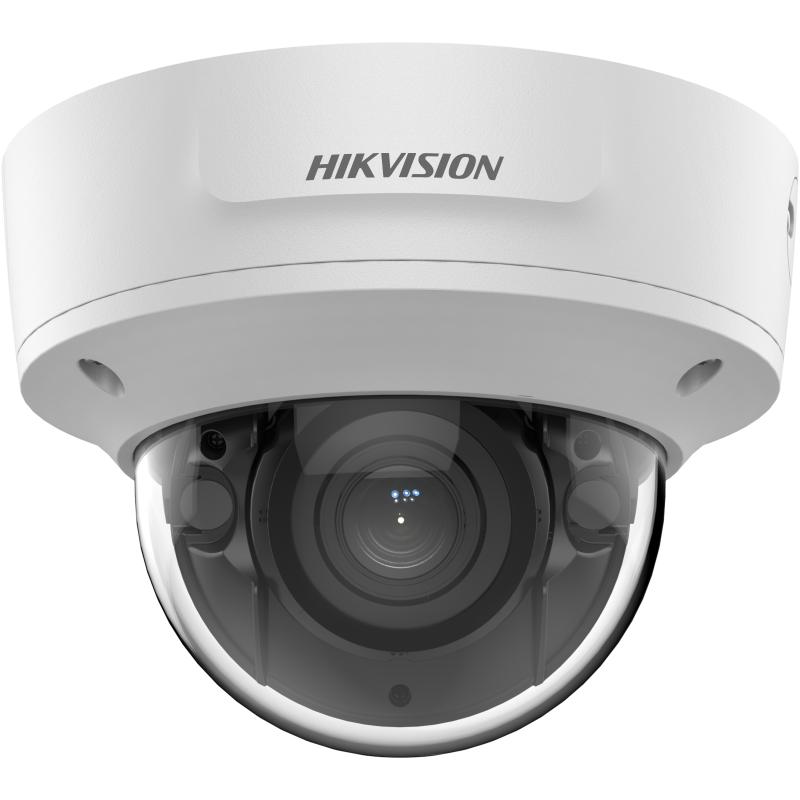

Hikvision - DS-2CD2783G2-IZS - 8 MP AcuSense Motorized Varifocal Dome Network Camera
Part number:
DS-2CD2783G2-IZS
Price:
8 MP AcuSense Motorized Varifocal Dome Network Camera
Features:
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, etc.) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Audio | |
| Audio Type | -S: Mono sound |
| Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -S: Various from 8 to 320 Kbps depending on codec |
| Audio Sampling Rate | -S: 8 kHz to 48 kHz |
| Environment Noise Filtering | -S: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, etc. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/G/T), ISAPI, SDK |
| User/Host | Up to 32 users; Roles: administrator, operator, user |
| Security | Password protection, HTTPS, IP filtering, audit logs, TLS 1.1/1.2, etc. |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, memory card encryption and health detection |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE10+ (plugin), Chrome 57.0+ / Firefox 52.0+ (plugin-free) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100 Mbps self-adaptive port |
| Audio | 1 input (line in), 1 output (line out), mono sound |
| On-Board Storage | MicroSD slot, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (with human/vehicle classification), video tampering, exception |
| Smart Event | Line crossing, intrusion detection, face detection |
| Linkage | Upload to FTP/NAS/SD card, notify center, email, trigger recording or capture |
| General | |
| Power | 12 VDC ± 25%, PoE (802.3af, Class 3), max. 12.5 W |
| Dimension | Ø153.3 mm × 111.6 mm (Ø6.0" × 4.4") |
| Material | Upper cover & base: metal; bubble: plastic |
| Package Dimension | 244 mm × 174 mm × 173 mm (9.7" × 6.9" × 6.9") |
| Weight | 855 g (1.9 lb.) |
| With Package Weight | 1469 g (3.2 lb.) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Startup & Operating Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Language | 33 languages (English, Russian, German, Spanish, Chinese, Japanese, etc.) |
| General Function | Heartbeat, password reset via email, pixel counter, anti-flicker |
| Approval | |
| EMC | FCC, CE-EMC, RCM, KC, IC standards |
| Safety | UL, CB, CE-LVD certifications |
| Environment | CE-RoHS, WEEE, Reach compliant |
| Protection | IP67 (dust/water), IK10 (vandal resistance) |
