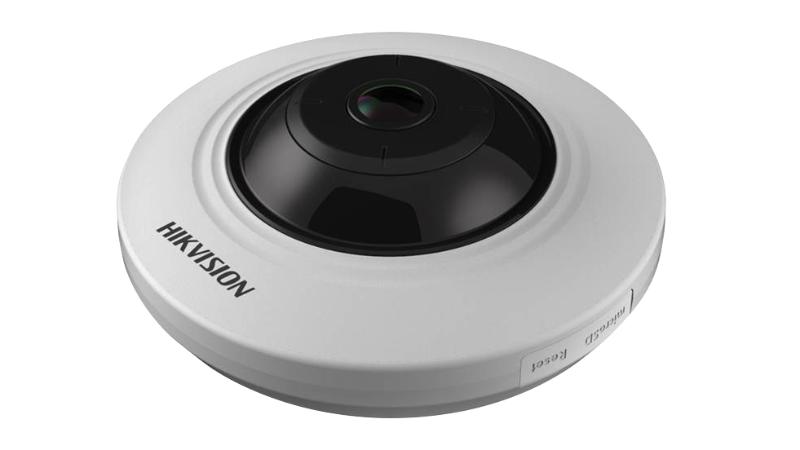

HIKVISION - DS-2CD2955FWD-IS - Fisheye Camera
Part number:
DS-2CD2955FWD-IS
Price:
5 MP Fisheye Fixed Dome Network Camera
Features:
- High quality imaging with 5 MP resolution
- 180° fisheye view
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
| Specification | |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Min. Illumination | Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| Lens | |
| Focal Length & FOV | 1.05 mm, horizontal field of view: 180°, vertical field of view: 180° |
| Aperture | F2.2 |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 8 m |
| Video | |
| Main Stream | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960),60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960), |
| Sub-Stream | 50Hz: 25fps (352× 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576), |
| Video Compression | Main stream: H.265+/H.265/H.264+/ H.264Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream |
| Fisheye Display | |
| Mount Type | Support table, wall, and ceiling |
| Display Mode | Support 14 display modes in total (including display modes of different mount types):Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
| Audio | |
| Audio Sampling Rate | -S: Support |
| Environment Noise Filtering | -S: 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | -S: G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Bit Rate | -S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In (-S model supports) |
| Image Enhancement | WDR/3D DNR/Backlight Compensation/Defog/Distortion Correction |
| Image Settings | Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser |
| Interface | |
| Audio | -S: 1 audio input (line in), 1 audio output interface |
| Alarm | -S: 1 alarm input, 1 alarm output (12 VDC, max. 30 mA) |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 G |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, dynamic analysis, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection |
| Linkage | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email |
| General | |
| Power | DC 12V ± 25%, 2A, 5W,PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W, |
| Dimension | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) |
| Startup and Operating Conditions | -10 °C to +50 °C (-14 °F to +122 °F). Humidity 95% or less (non-condensing) |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Weight | 600 g (1.32 lbs.) |
Name
Description
Size
Downloads
File
Quick Start Guide
1.1mb
