HIKVISION - DS-2CD2T45G0P-I - BL IP 180 degree wide angle
Part number:
DS-2CD2T45G0P-I
Price:

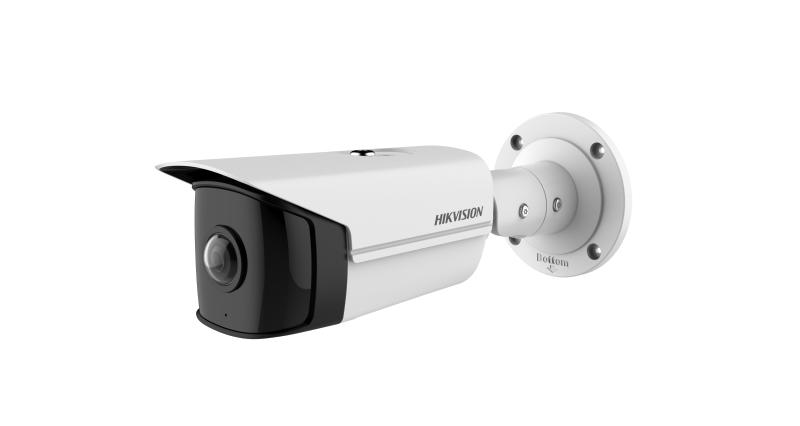

4 MP Super Wide Angle Fixed Bullet Network Camera
Features:
- High quality imaging with 4 MP resolution
- 180°super wide field of view
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Distortion correction
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | ICR Cut |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture. Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focus | Fixed |
| Lens Type & FOV | 1.68mm @ F2.0, horizontal FOV 180°, vertical FOV 101°, diagonal FOV 180° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| DORI | |
| DORI | Detect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m |
| Illuminator | |
| IR Range | 20 m |
| Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 x 720)60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 x 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Stream Type | Main stream, Sub-stream |
| Scalable Video Coding (SVC) | H.264, H.265 |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users; 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | micro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in free live view: Chrome45.0+, Firefox52.0+Local service: Chrome41.0+, Firefox30.0+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC; HLC; EIS; Lens Distortion; 3D DNR |
| Image Settings | Saturation; brightness; contrast; sharpness; rotate mode; white balance; AGC |
| SNR | ≥ 50 dB |
| Privacy Mask | 4 regions of privacy mask |
| Interface | |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection |
| General | |
| Web Client Language | 32 languages (English, Russian, Estonian, Bulgarian, etc.) |
| General Function | privacy mask; heart; mirror; flash log; password reset via e-mail; pixel counter |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.6 A, max. 7.2WPoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | Camera: Φ105 × 278 mm (Φ4.1″ × 10.9″) |
| Package Dimension | 386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″) |
| Camera Weight | 570 g (1.26 lb.) |
| With Package Weight | 760 g (1.68 lb.) |
| Approval | |
| Class | Class B |
| Protection | IP67 |
| EMC | FCC, CE-EMC, RCM, IC, KC |
| Safety | UL, CB, CE-LVD, BIS, LOA |
| Environment | CE-RoHS, WEEE, Reach |
