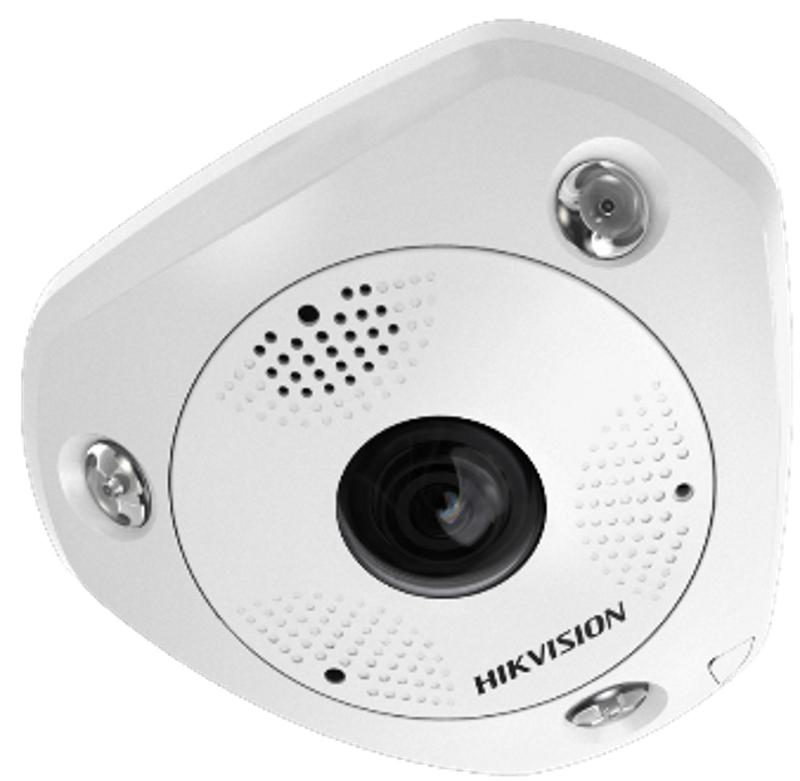

HIKVISION - DS-2CD63C5G0E-IVS 2mm - 12MP outdoor Fisheye, heater
Part number:
DS-2CD63C5G0E-IVS 2mm
Price:
12 MP Fisheye Network Camera
Features:
- 360° 100% Visibility image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
- Multi dewarping modes, the image can be dewarped to normal image to view intuitively
- Built-in mic and speaker, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera
- IP66/IK10 , water resistant and vandal proof, there is no need to worry about water ingress when it is used in outdoor scenarios
- With up to 12 MP high resolution lens, the image is very clear even dewarped into 4 PTZ images
| Specification | |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3072 × 2048 |
| Min. Illumination | Color: 0.047 Lux @ (F2.6, AGC ON),B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Lens | |
| Focal Length & FOV | 1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
| Lens Mount | M12 |
| Aperture | F2.6 |
| Illuminator | |
| Supplement Light Type | IR, 3 LEDs. Each LED is independently controlled. |
| Supplement Light Range | Up to 15 m IR range |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280) |
| Sub-Stream | 50Hz: 25fps (720 × 720, 720 × 480)60Hz: 30fps (720 × 720, 720 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/ Main Profile /High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for main stream and sub-stream |
| Fisheye Display | |
| Mount Type | Support table, wall, and ceiling mounting |
| Display Mode | 18 display modes in totalSoftware decoding:Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinderWall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZTable mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinderHardware decoding:Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusionWall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusionTable mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Security | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| Network Storage | Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Built-in Microphone | 2 built-in microphones |
| Built-in Speaker | 1 built-in speaker |
| Audio | 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound |
| Alarm | 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionAudio exception detection |
| General | |
| Power | 12 VDC±20%, 0.9 A, max. 11 WPoE: 802.3af, Class 0, 36 to 57 V, 0.3 A to 0.2 A, max. 12 W-S model: two-core terminal blockWithout –S model: Φ 5.5 × 2.1 mm coaxial power plug |
| Dimension | Without –V model: 167.4 × 152.8 × 50.1 mm (6. 6" × 6" × 2")With –V model: 167.4 × 152.8 × 55 mm (6. 6 × 6" × 2.2") |
| Weight | Approx. 1400 g (3.09 lbs) |
| Startup and Operating Conditions | -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Approval | |
| EMC | IC: IC-VoC(ICES-003 Issue 7:2020),FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 |
| Safety | CB: IEC 60950-1,UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,LOA: SANS IEC60950-1 |
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863) |
| Protection | With -V: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
