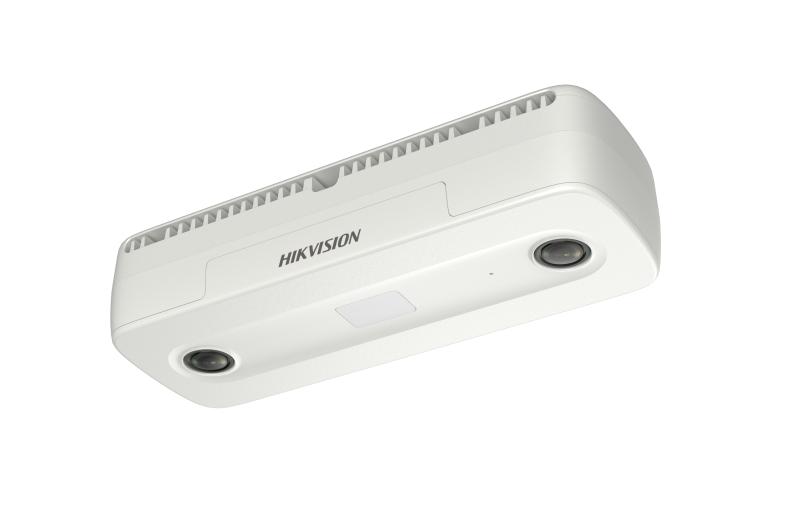

HIKVISION - DS-2CD6825G0/C-IS 2mm - PPL CT,IN,2mm,DWDR,IR,265+
Part number:
DS-2CD6825G0/C-IS 2mm
Price:
Dual-Lens People Counting Network Camera
Features:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 105 dB WDR technology
- -V model: Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 1/2.7ʺ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON)B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON) |
| Shutter Time | 1/25 s - 1/100,000 s |
| Day & Night | IR Cut Filter |
| Lens | |
| Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112° |
| Lens Mount | M12 |
| Aperture | F2.25 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 6 m IR range |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome (5.0) |
| User/Host | Up to 32 users3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm input (-S) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | HLC, BLC, 3D DNR, defog |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M Ethernet port-IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port |
| Built-in Microphone | Yes |
| Audio | -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound |
| Alarm | -S: 1 input, 1 output (max. 24 VDC,1A) |
| RS-485 | -S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage | Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Deep Learning Function | |
| People Counting | Counts people entering and exiting separatelySupports real-time uploading and uploading by statistic cycleSends email reports on daily, weekly, monthly or annually basisSupports target filtering by height |
| General | |
| Power | 12 VDC±20%, 12 VDC, 0.66 A, max. 8 W, Ø5.5mm coaxial power plug, reverse polarity protectionPoE: 36 to 57 VDC, 802.3af, Class 3, 0.23 A to 0.14 A, max. 8.3 W |
| Dimension | With -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6" )Without -V: 168 mm × 61 mm × 36 mm (6.6 × 2.4" × 1.4") |
| Package Dimension | 235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9") |
| Weight | Approx. 435 g (1 lb.) |
| With Package Weight | Approx. 725 g (1.6 lb.) |
| Storage Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to +45 °C (-22 °F to +113 °F). Humidity 95% or less (non-condensing) |
| Language | 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter |
| Approval | |
| EMC | IC: IC-VoC(ICES-003 Issue 7:2020),FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),KC: KN32:2015,KN35:2015,CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 |
| Safety | EN CB: IEC 60950-1,UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,LOA: SANS IEC60950-1,BIS: IS 13252(Part 1)2010+A1:2013+A2:2015,CE: CE-LVD(EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | RoHS Directive 2011/65/EU+2015/863 |
