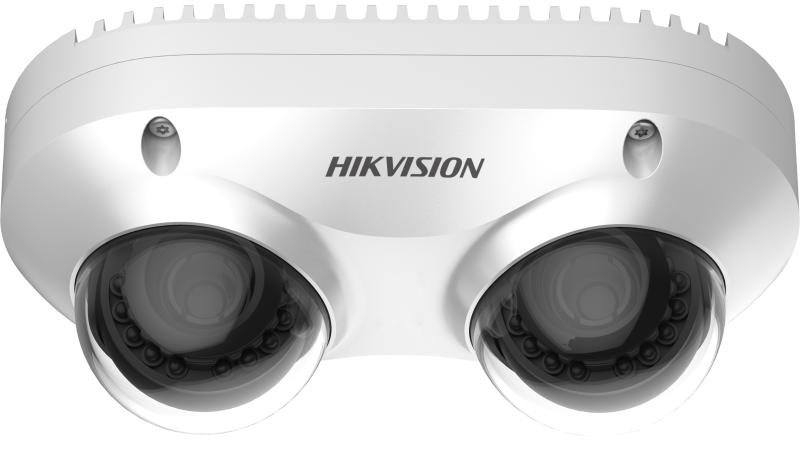

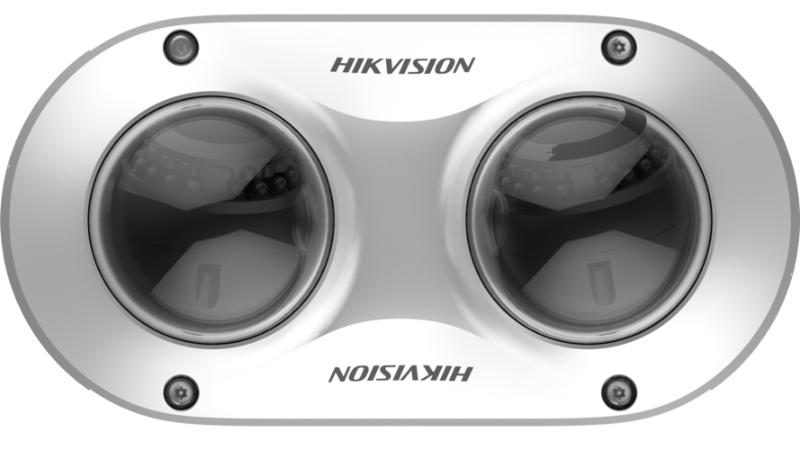

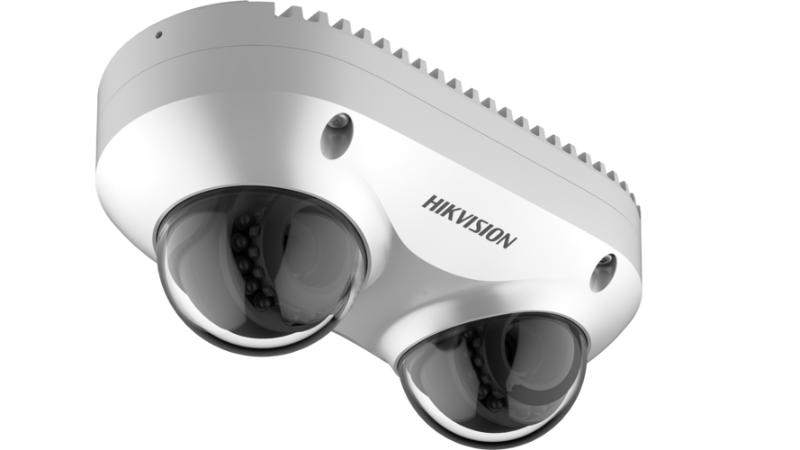

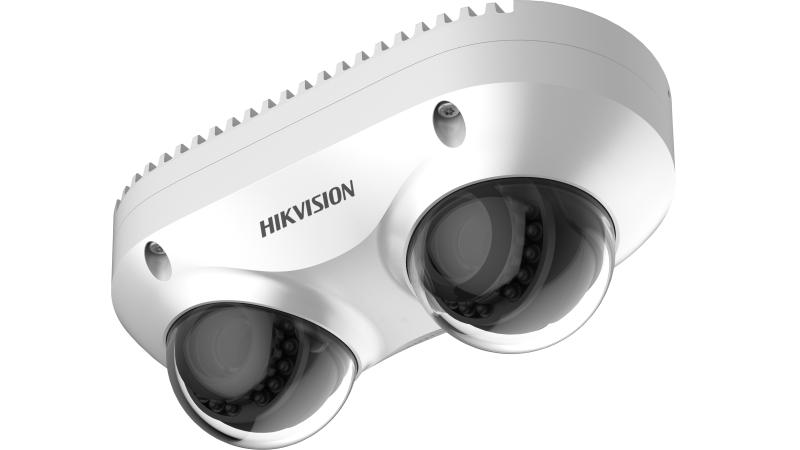

HIKVISION - DS-2CD6D52G0-IHS 6mm - Dual PANO O 2x5MP IR WDR 6mm
Part number:
DS-2CD6D52G0-IHS 6mm
Price:
Dual-Directional PanoVu Camera, 6mm
Features:
- High quality imaging with 5 MP resolution
- 3D DNR technology delivers clean and sharp images
- Efficient H.265 compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- A built-in heater provides ultra-low temperature start-up to -40℃
- Water and dustresistant (IP67) and vandal proof (IK10)
- Built-in microphone for real-time audio security
- Easy installation with Power over Ethernet (PoE) technology
| Specification | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS Color: 0.009 Lux @ (F1.6, AGC ON) |
| Min. Illumination | B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | ICR Cut |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email |
| Angle Adjustment | P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355° |
| Lens | |
| Lens Type & FOV | 2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| DORI | |
| DORI | 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m 4 mm: D: 85.4 m, O: 33.9 R: 17.1 m, I: 8.5 m 6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m |
| Illuminator | |
| IR Range | Up to 10m |
| Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 2560 × 1920 |
| Main Stream | 50Hz: 25fps ((2560 × 1920, 2048 × 1536); 60Hz: 30fps (2560 × 1920, 2048 × 1536) |
| Sub Stream | 50Hz: 25fps (640 × 480, 704 × 576); 60Hz: 30fps (640 × 480, 704 × 480) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576); 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480) |
| Video Compression | H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Bit Rate Control | CBR/VBR |
| Stream Type | Main stream/Sub-stream/Third stream |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Audio (-S) | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32kHz/44.1kHz/48kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711ulaw), 64Kbps (G.711alaw), 16Kbps(G.722.1), 16Kbps(G.726), 32- 160Kbps (MP2L2), 250Kbps(PCM) |
| Audio Type | Stereo |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Smooth Streaming | Yes |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule, Triggered by Alarm In (-S) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Image Enhancement | BLC, HLC, Defog, EIS, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser *Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time. |
| Interface | |
| Alarm | -S: 1 input, 1 output (max. 36 VDC, 30mA) |
| Audio | Without -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line out |
| RS-485 | -S: 1 RS-485 interface, half duplex |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset | Reset via reset button on camera body, web browser and client software |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Heater | Yes |
| Smart Feature-Set | |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Scene change detection, audio exception detection (Channel 1 only) |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage | Upload to FTP/NAS/memory card, send email |
| General | |
| Online Upgrade | Yes |
| Firmware Version | V5.5.94 |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti- flicker, heartbeat, mirror, privacy masks |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40° to 60°, humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC, POE (802.3af) |
| Power Consumption and Current | 12VDC, 0.9A, max. 11 W POE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 11 W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7") |
| Package Dimension | 227 × 172 × 125 mm (8.9" × 6.8" × 4.9") |
| Camera Weight | 770g (1.7 lb.) |
| With Package Weight | 1053g (2.3 lb.) |
| Approval | |
| Class | Class B |
| Protection | Ingress protection: IP67, IK10 |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
