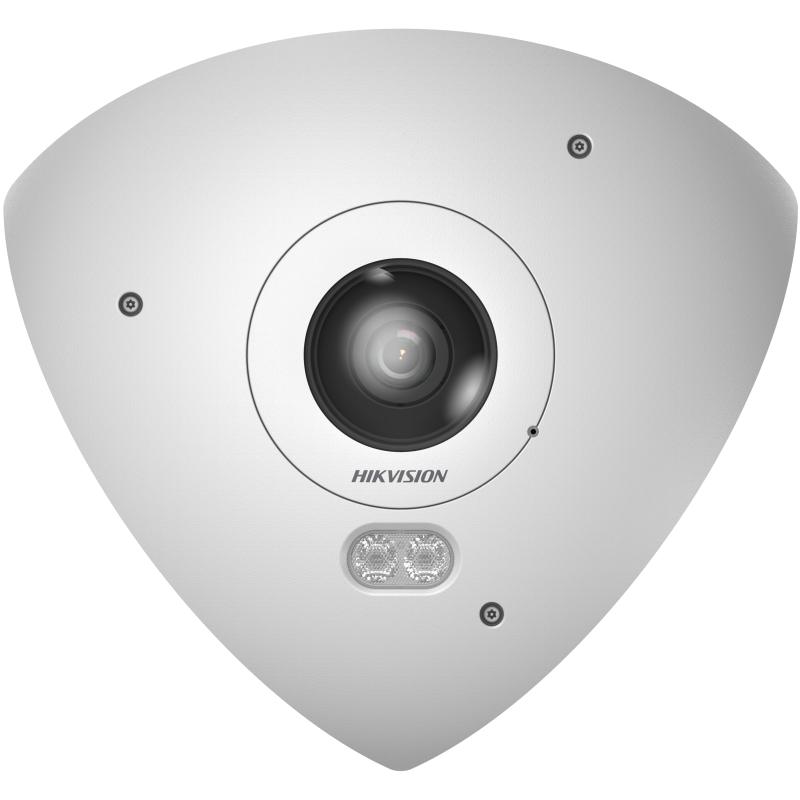

Name: HIKVISION - DS-2CD6W45G0-IVS 2mm - PANO D 2mm 4MP IR IK10+
Brand: Hikvision
SKU: DS-2CD6W45G0-IVS 2mm

Home — Brands — Hikvision — Network Products — Network Cameras —

HIKVISION - DS-2CD6W45G0-IVS 2mm - PANO D 2mm 4MP IR IK10+

Part number:

DS-2CD6W45G0-IVS 2mm

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

4 MP IR Network Fisheye Camera

Features:

High quality imaging
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67) and vandal resistant (IK10+)

Specification
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	Fisheye: 3072 × 2048, Panorama: 2400 × 1800
Min. Illumination	Color: 0.082 Lux @ (F2.4, AGC ON), B/W: 0.016 Lux @ (F2.4, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Lens
Lens Type	Fixed focal, 2 mm
Focal Length & FOV	2 mm, Horizontal FOV 135° (corner mount)
Iris Type	Fixed
Aperture	F2.4
DORI	D: 43.2 m, O: 17.2 m, R: 8.6 m, I: 4.3 m
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 10 m
Smart Supplement Light	Yes
IR Wavelength	940 nm
Video
Main Stream	Fisheye: 25 fps (3072 × 2048); Panorama: 25 fps (2400 × 1800)
Sub-Stream	Fisheye: 25 fps (1920×1080, 720×720, 720×480); Panorama: 25 fps (1920×1080 to 320×240)
Third Stream	Fisheye & Panorama: 25 fps (1920×1080 to 640×480)
Video Compression	Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline, Main, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
SVC	H.264 and H.265 encoding
ROI	4 fixed regions for main & sub-stream
Audio
Audio Type	Mono
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate	64Kbps(G.711), 16Kbps(G.722.1/G.726), 32-160Kbps(MP2L2)
Audio Sampling Rate	8 kHz / 16 kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, etc.
Simultaneous Live View	Up to 20 channels
API	ONVIF (PROFILE S, G), ISAPI
User/Host	Up to 32 users, 3 levels (admin, operator, user)
Security	Password, HTTPS, IEEE 802.1x, IP filter, etc.
Network Storage	microSD/SDHC/SDXC (up to 256 GB), NAS (NFS, SMB/CIFS), ANR
Client	iVMS-4200/4500/5200, Hik-Connect
Web Browser	IE8+, Chrome 31–44, Firefox 30–51, Safari 8+
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, AGC, WB
Day/Night Switch	Day, Night, Auto, Schedule, Alarm Trigger
WDR	120 dB
Image Enhancement	BLC, HLC, 3D DNR, defog
Privacy Mask	4 programmable polygons
Picture Overlay	LOGO overlay, 128×128 24-bit BMP
Interface
Ethernet	1 × RJ45 10/100/1000 Mbps
On-Board Storage	microSD/SDHC/SDXC up to 256 GB
Built-in Microphone	1
Audio I/O	1 input (3.5mm), 1 output (3.5mm)
Alarm I/O	1 input, 1 output (max. 24VDC, 1A)
RS-485	1 (Half duplex, HIKVISION, Pelco-P/D)
Reset Key	Yes
Indicator	Yes
Event
Basic Event	Motion, tampering, alarm I/O, network, login, HDD
Smart Event	Line crossing, intrusion, region enter/exit, object left/removed
General
Power	12 VDC ±20%, 0.9 A, max. 11 W; PoE: 802.3af, max. 12 W
Dimension	213.73×199.67×137.57 mm (8.4"×7.86"×5.42")
Package Dimension	255×255×190 mm (10.04"×10.04"×7.48")
Weight	1.338 kg (2.95 lb)
With Package Weight	2.054 kg (4.53 lb)
Storage Conditions	-40°C to +60°C, ≤95% RH (non-condensing)
Operating Conditions	-40°C to +60°C, ≤95% RH (non-condensing)
Language	32 languages (English, Russian, etc.)
General Function	Reset, anti-flicker, heartbeat, mirror, mask, watermark, etc.
Cable Length	0.15 m (0.49 ft.)
Demist	Yes
Approval
EMC	FCC, CE-EMC, RCM, IC, KC
Safety	UL, CB, CE-LVD, BIS, LOA
Environment	CE-RoHS, WEEE, REACH
Protection	IP67, IK10+
Anti-Corrosion	NEMA 4X

Name

Description

Size

Downloads

File

Datasheet

1.1mb

File

Quick Start Guide

1.2mb
