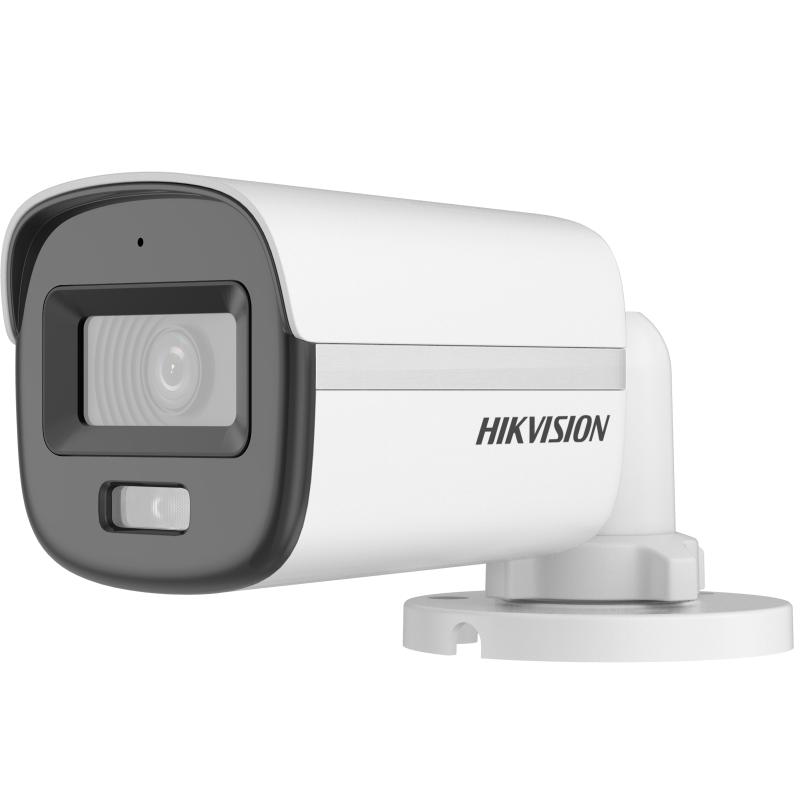

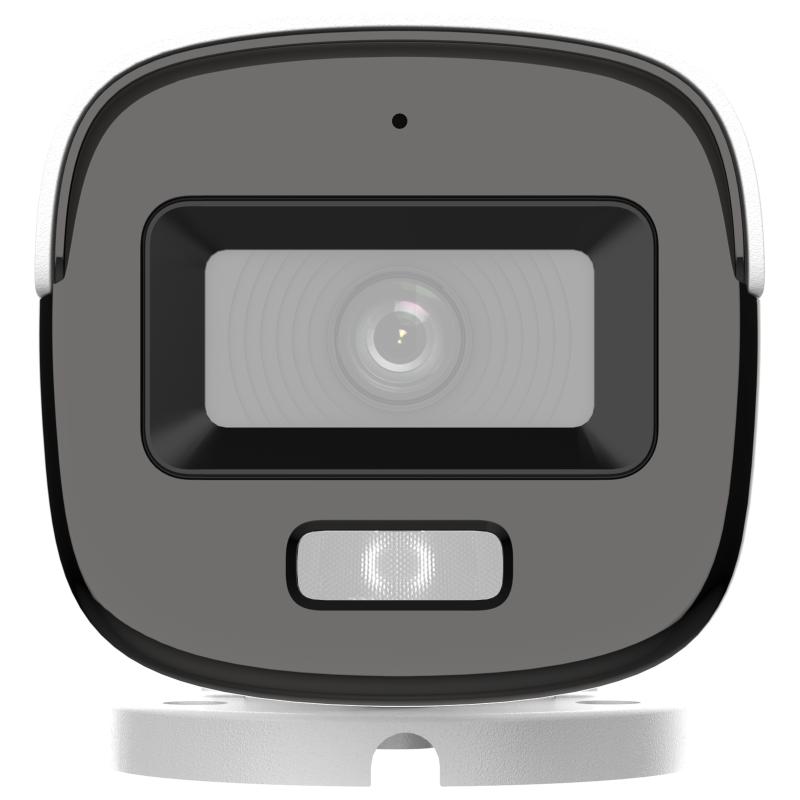

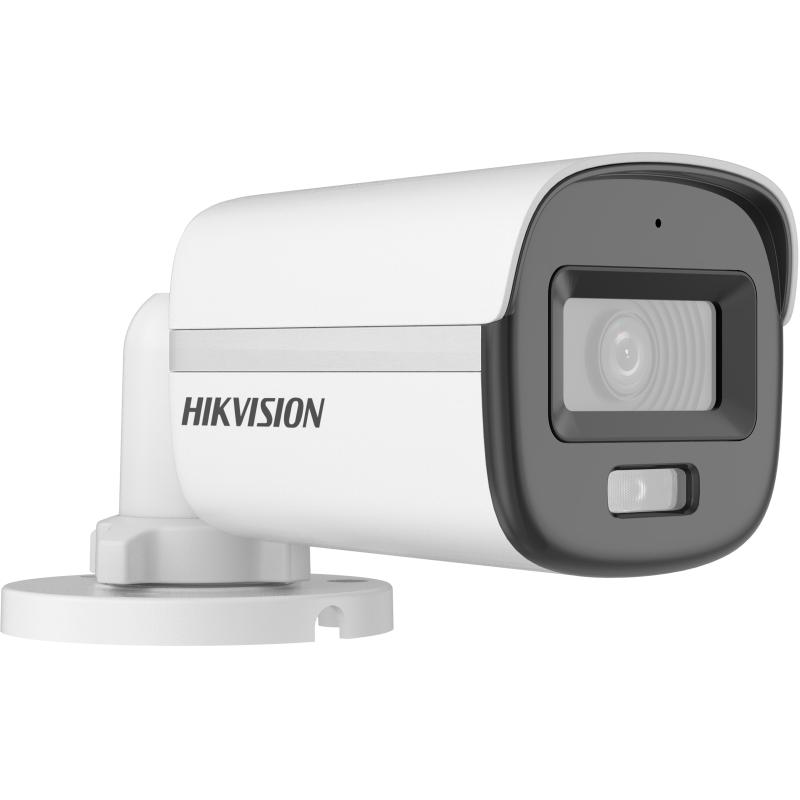

HIKVISION - DS-2CE10KF0T-FS 2.8mm - 5MP BL ColorVu Turbo
Part number:
DS-2CE10KF0T-FS 2.8mm
Price:

3K ColorVu Audio Fixed Mini Bullet Camera, 2.8mm



Features:

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 24/7 color imaging with F1.0 aperture
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
  • High quality audio with audio over coaxial cable, built-in mic
Specifications
Camera
Image Sensor3K CMOS
Signal SystemPAL/NTSC
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, FOV: H: 102°, V: 56°, D: 122°3.6 mm, FOV: H: 80°, V: 45°, D: 96°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 20 m
Frame RateTVI: 3K@20fps, 4 MP@25/30fps, 1080p@25/30fpsAHD: 5 MP@20fps, 4 MP@25/30fpsCVI: 4 MP@25/30fpsCVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementDWDR, BLC, HLC, Global, HLS
Noise Reduction2D DNR
Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
AlarmSolid Light Alarm (White Light)
AudioBuilt-in mic
General
LanguageEnglish
Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
MaterialMetal
CommunicationHIKVISION-C
Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
WeightApprox. 404 g (0.89 lb.)
Power12 VDC ± 25%, Max. 2.5 W*Use one power adapter per camera
Approval
ProtectionIP67
Name
Description
Size
Downloads
File
User Manual
1.7mb
