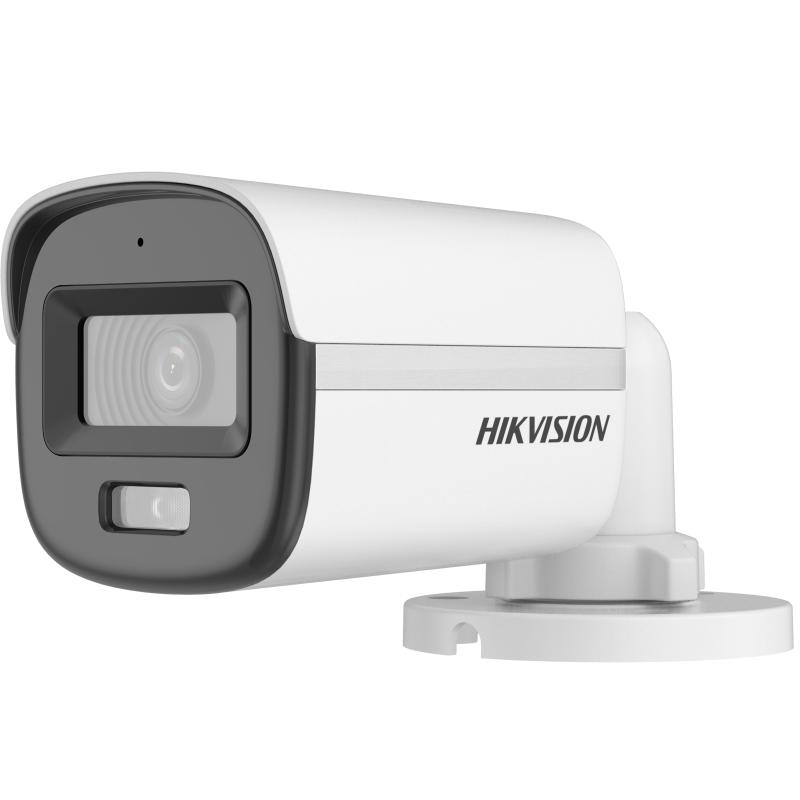

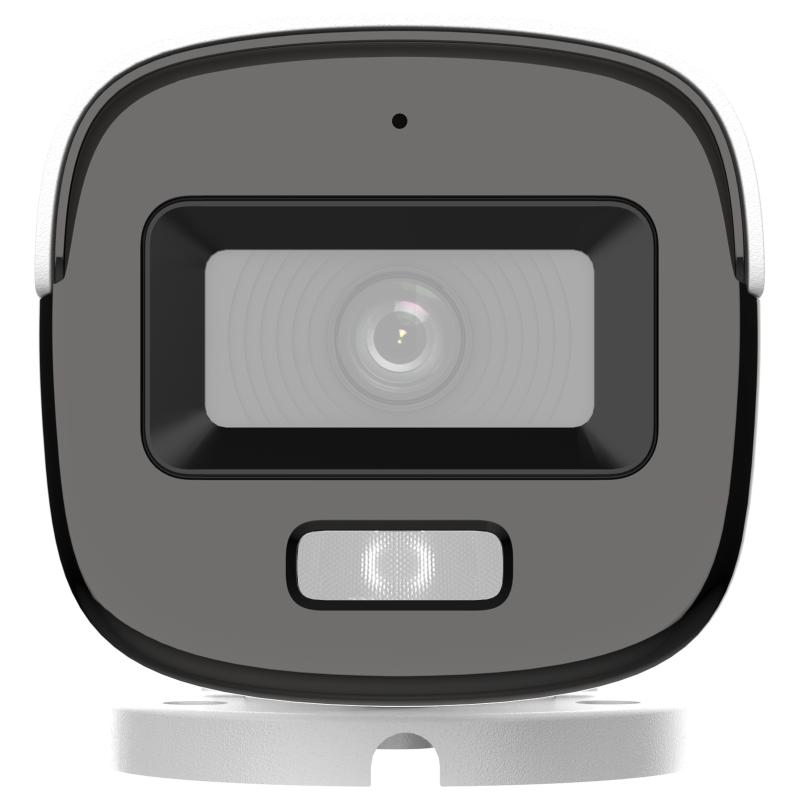

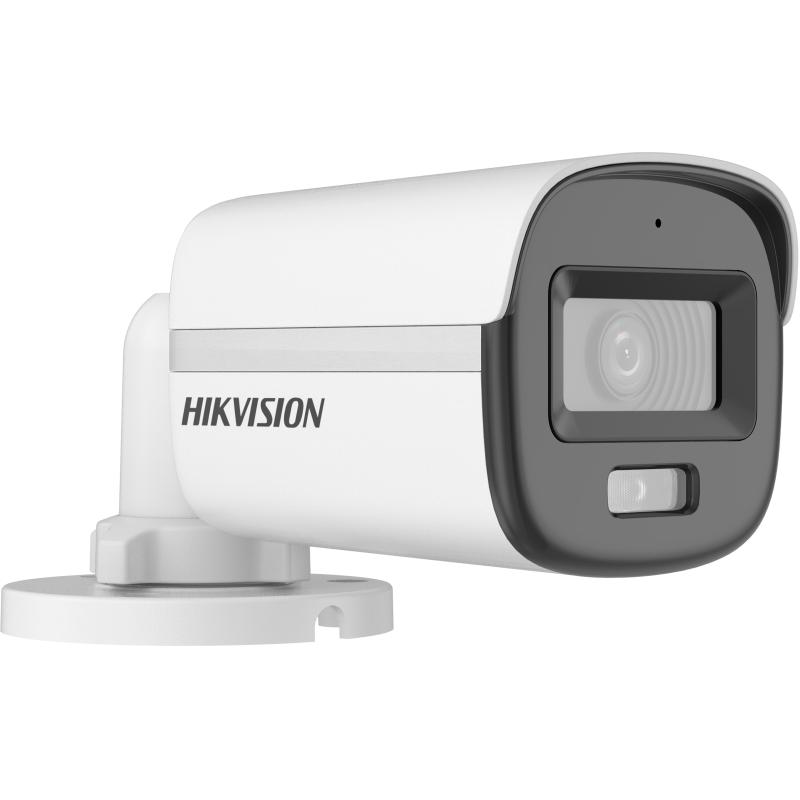

HIKVISION - DS-2CE10KF0T-FS 3.6mm - 5MP ColorVu BL Fixed
Part number:
DS-2CE10KF0T-FS 3.6mm
Price:
3K ColorVu Audio Fixed Mini Bullet Camera, 3.6mm
Features:
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
| Specifications | |
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, FOV: H: 102°, V: 56°, D: 122°3.6 mm, FOV: H: 80°, V: 45°, D: 96° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Image | |
| Frame Rate | TVI: 3K@20fps, 4 MP@25/30fps, 1080p@25/30fpsAHD: 5 MP@20fps, 4 MP@25/30fpsCVI: 4 MP@25/30fpsCVBS: PAL/NTSC |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Color |
| White Balance | Auto/Outdoor/Global/Manual |
| Image Enhancement | DWDR, BLC, HLC, Global, HLS |
| Noise Reduction | 2D DNR |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm (White Light) |
| Audio | Built-in mic |
| General | |
| Language | English |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Metal |
| Communication | HIKVISION-C |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Weight | Approx. 404 g (0.89 lb.) |
| Power | 12 VDC ± 25%, Max. 2.5 W*Use one power adapter per camera |
| Approval | |
| Protection | IP67 |
