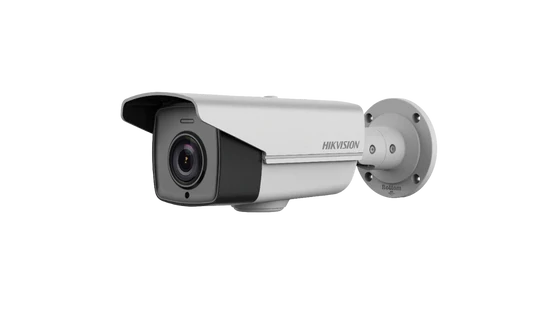

HIKVISION - DS-2CE16D9T-AIRAZH - BLT 1080P TVI 5-50MZ IR HTR
Part number:
DS-2CE16D9T-AIRAZH
Price:
2 MP Motorized Varifocal Bullet Camera
Features:
- 2 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 5 mm to 50 mm motorized varifocal lens focuses automatically when zooming in or out
- Up to 120 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Transmits both HD video and power over the same coaxial cable
- Heater is available with 24 VAC
| Specification | |
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Max. Resolution | 1944(H)*1092(V) |
| Min. Illumination | 0.003 Lux @ (F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30)s to 1/50,000s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360° |
| Signal System | PAL/NTSC |
| Application | Indoor/ Outdoor/ Indoor1/ LOW-LIGHT |
| Lens | |
| Lens Type | Angle of view: 59.8°-6.2° |
| Image | |
| Image Settings | HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM, LSC (Lens Shading Correction) |
| Frame Rate | 1080P@25/30fps |
| Day/Night Mode | Color/BW/EXT |
| Wide Dynamic Range (WDR) | 120dB |
| SNR | >62dB |
| Image Enhancement | BLC |
| Privacy Mask | On/Off, maximum 8 zones |
| White Balance | ATW/ AWC-SET/ Manual |
| AGC | Support |
| Interface | |
| Video Output | TVI&CVBS |
| Event | |
| Motion Detection | On/Off, maximum 4 zones |
| General | |
| Dimension | 313.5x100.8x107.3mm |
| Weight | 1650g |
| Operating Condition | -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
| Communication | Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
| Language | Chinese/ English |
| Power Supply | AC24V±15%/ DC12V±15%, Heater is available with 24VAC only |
| Consumption | Max. 20W |
| IR Range | Up to 120m |
| Approval | |
| Protection | IP67 |
