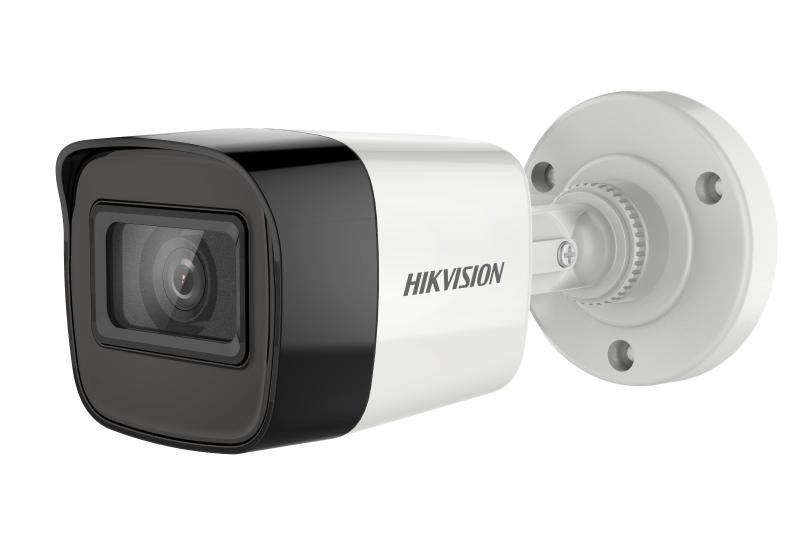

HIKVISION - DS-2CE16U1T-ITF 3.6mm - OutBul 8MP/4K TVI IR IP67
Part number:
DS-2CE16U1T-ITF 3.6mm
Price:
4K Fixed Mini Bullet Camera, 3.6mm
Features:
- 8 MP bullet camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Min. Illumination | Color: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm) |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Image | |
| Image Settings | Brightness; Sharpness; Smart IR; AGC |
| Frame Rate | TVI:8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps |
| CVI:8MP@12.5fps, 8MP@15fps | |
| AHD:8MP@12.5fps, 8MP@15fps | |
| CVBS: 960H P/N | |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC; HLC |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | 1 HD analog output; Switchable TVI/AHD/CVI/CVBS |
| General | |
| Power | 12 VDC ±25% Use one adapter per camera Max. 5.3 W |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42") |
| Weight | Approx. 345 g (0.76 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
