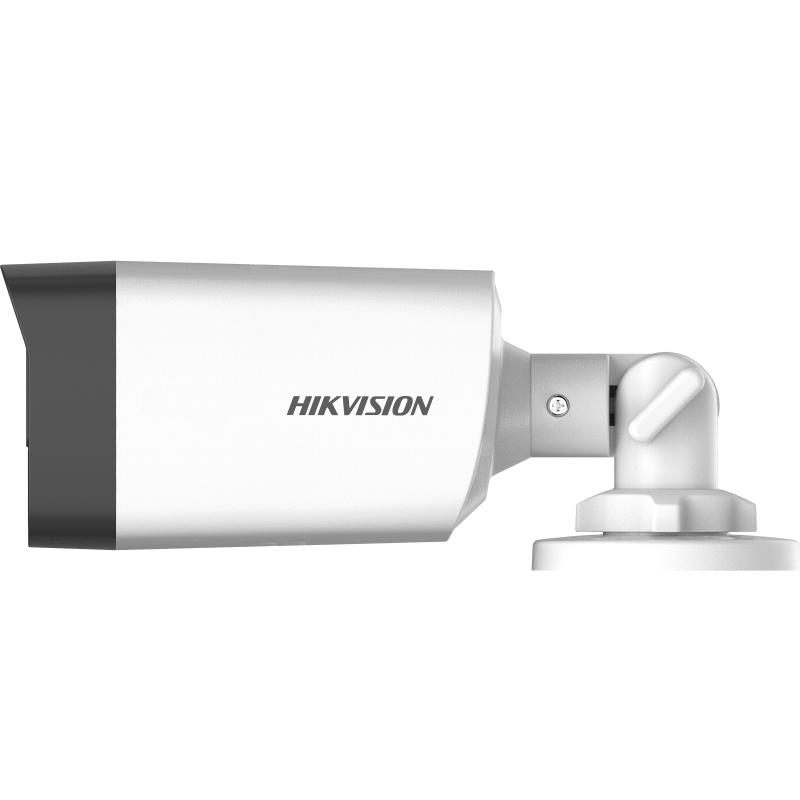

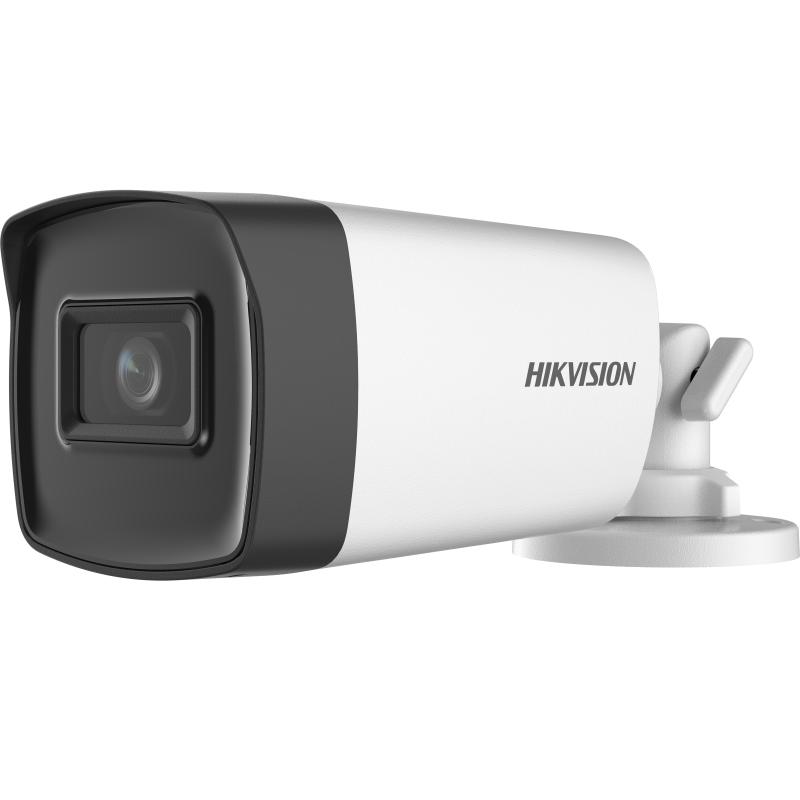

HIKVISION - DS-2CE17H0T-IT3F 2.8mm - Out Bul 5MP TVI IR 2.8mm
Part number:
DS-2CE17H0T-IT3F 2.8mm
Price:
5 MP Fixed Bullet Camera, 2.8mm
Features:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
| Specification | |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global |
| Noise Reduction | Yes |
| White Balance | Auto/Manual |
| AGC | Support |
| Interface | |
| Video Output | TVI/AHD/CVI/CVBS |
| General | |
| Material | Front Cover: Metal Main Body: Plastic |
| Dimension | 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") |
| Weight | Approx. 330 g (0.73 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 40 m |
| Approval | |
| Protection | IP67 |
