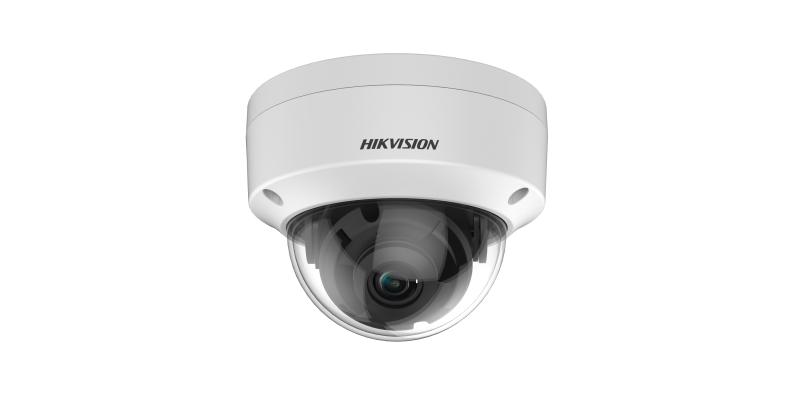

HIKVISION - DS-2CE57H0T-VPITF 3.6mm - Out Dom 5MP TVI IR 3.6mm
Part number:
DS-2CE57H0T-VPITF 3.6mm
Price:
5 MP Vandal Fixed Dome Camera
Features:
- 5 MP dome camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 5 MP CMOS image sensor |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | Yes |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Interface | |
| Video Output | TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | Φ 110.8 mm × 84.7 mm (Φ 4.4" × 3.3") |
| Weight | Approx. 362 g (0.80 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 20 m |
| Approval | |
| Protection | IP67 IK10 |
