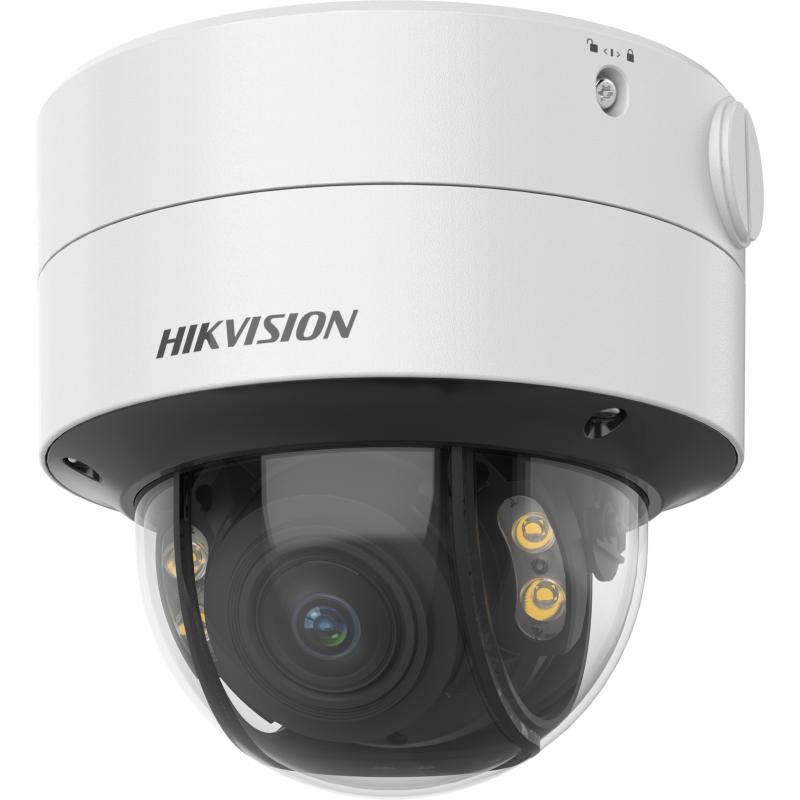

HIKVISION - DS-2CE59DF8T-AVPZE - Dome 2MP VF Turbo ColorVu
Part number:
DS-2CE59DF8T-AVPZE
Price:
2 MP ColorVu Vandal PoC Motorized Varifocal Dome Camera
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm to 12 mm varifocal lens, auto focus
- Smart Light, up to 40 m white light distance
- Water and dust resistant (IP68) and vandal resistant (IK10)
| Specification | |
| Camera | |
| Image Sensor | 1/1.8" 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0003 Lux @ (F1.29, AGC ON), 0 Lux with white Light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm to 12 mm motorized, auto focus |
| Focal Length & FOV | Horizontal: 92.3° to 34.2°, Vertical: 48.4° to 19°, Diagonal: 112.2° to 39.2° |
| Lens Mount | Φ24 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p @ 25 fps/30 fps |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | 1 HD analog output |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Material | Metal |
| Dimension | Ø155 mm × 152 mm (Ø6.10" × 5.98") |
| Weight | Approx. 1525 g (3.36 lb.) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Power | |
| Power | 12 VDC / 24 VAC ±20% / PoC.at, Max: 12.2 W |
| Approval | |
| Protection | IP68 / IK10 |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
User Manual
1.8mb
