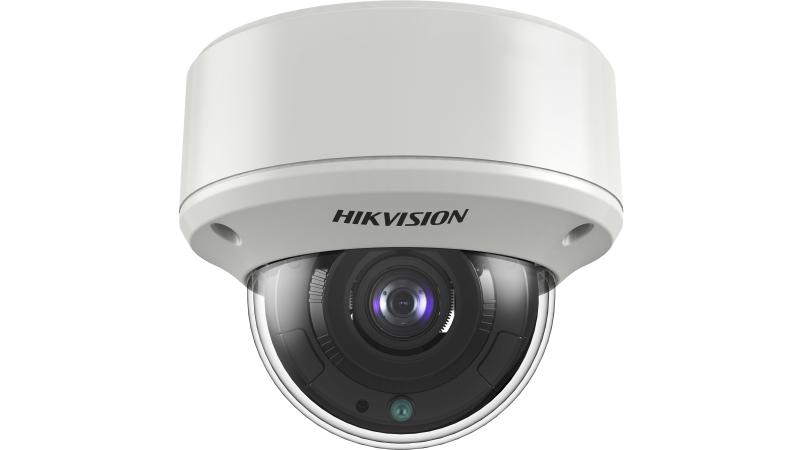

Hikvision - DS-2CE59H8T-AVPIT3ZF - 5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera
Part number:
DS-2CE59H8T-AVPIT3ZF
Price:
5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera
Features:
- 5 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length & FOV | 92.3° to 29.3° |
| Lens Mount | Φ 14 |
| Image | |
| Image Settings | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥ 130 dB |
| Image Enhancement | BLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | Level 1 to 9 |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | 1 HD analog output, TVI/AHD/CVI/CVBS |
| Event | |
| Motion Detection | 4 programmable areas |
| General | |
| Material | Metal |
| Dimension | Φ 145.2 mm × 124.1 mm (Φ 7.1" × 4.9") |
| Weight | Approx. 640 g (1.41 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Language | English |
| Power Supply | -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Consumption | -A: Max. 8 W |
| IR Range | Up to 60 m |
| Approval | |
| Protection | IP67, IK10 |
