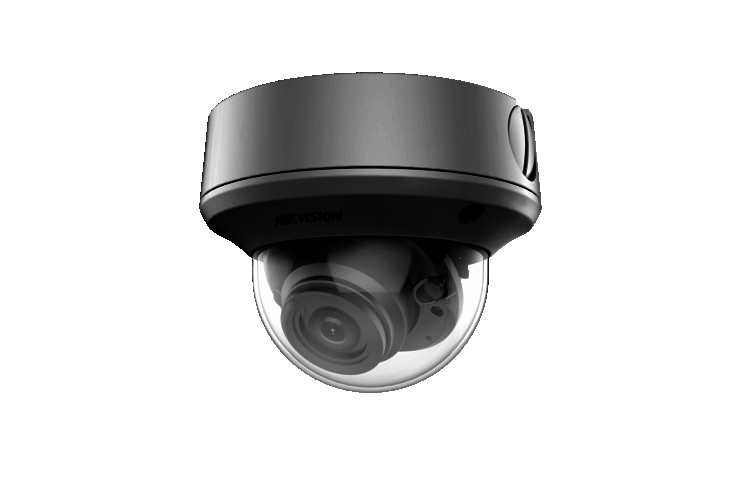

Hikvision - DS-2CE5AD3T-AVPIT3ZFB - 2MP Ultra Low Light Vandal Moto Varifocal Dome Camera
Part number:
DS-2CE5AD3T-AVPIT3ZFB
Price:

2MP Ultra Low Light Vandal Moto Varifocal Dome Camera



Features:

  • 2 MP dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.005 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 70 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
Camera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
Signal SystemPAL/NTSC
Lens
Lens Type2.7 mm to 13.5 mm
Focal Length & FOV102° to 31°
Lens MountΦ 14
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
Frame RatePAL: 1080p@25fpsNTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥ 120 dB
Image EnhancementYes
AGCHigh/Medium/Low
Interface
Video OutputTVI/AHD/CVI/CVBS
General
MaterialMetal
DimensionØ145 mm × 111.3 mm (5.70" × 4.37")
WeightApprox. 830 g (1.83 lb.)-A: Approx. 870 g (1.92 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
LanguageEnglish
Power Supply12 VDC ±25%-A: 24 VAC ±15%, 12 VDC ±20%*Use one power adapter per camera
ConsumptionMax. 7.7 W-A: Max. 9.7 W
IR RangeUp to 70 m
Approval
ProtectionIP67, IK10
