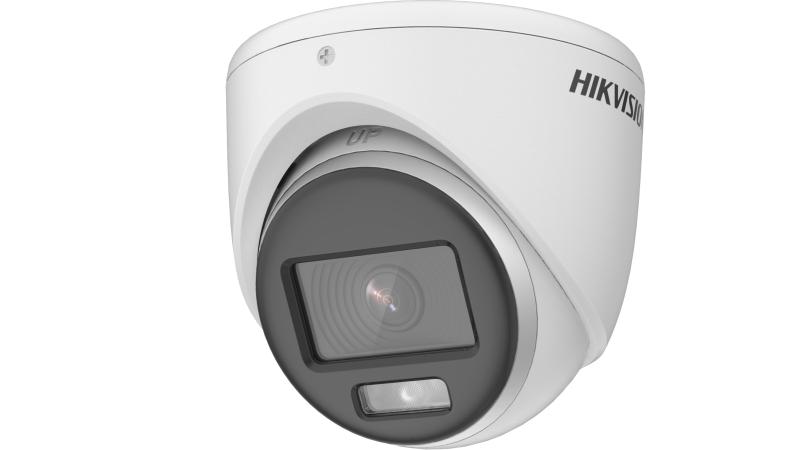

2 MP ColorVu Fixed Turret Camera, 2.8mm
Features:
Specification | |
Camera | |
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Signal System | PAL/NTSC |
Light Alarm | Solid Light Alarm (White Light) |
Lens | |
Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
Focal Length & FOV | 2.8 mm: H FOV: 98°, V FOV: 51°, D FOV: 115°3.6 mm: H FOV: 76°, V FOV: 41°, D FOV: 90°6 mm: H FOV: 50°, V FOV: 27°, D FOV: 58° |
Lens Mount | M12 |
Illuminator | |
Supplement Light Type | White Light |
Supplement Light Range | Up to 20 m |
Smart Supplement Light | Yes |
Image | |
Image Parameters Switch | STD / HIGH-SAT / HIGHLIGHT |
Image Settings | Brightness, Mirror, Sharpness, Anti-Banding, AGC |
Frame Rate | TVI: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVBS: PAL/NTSC |
Day/Night Mode | Color |
Wide Dynamic Range (WDR) | Digital WDR |
Image Enhancement | DWDR, BLC, HLC, Global |
Noise Reduction | 3D DNR / 2D DNR |
White Balance | Auto / Manual |
Interface | |
Video Output | Switchable TVI / AHD / CVI / CVBS |
General | |
Material | Metal |
Dimension | Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05") |
Weight | Approx. 320 g (0.71 lb) |
Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
Communication | HIKVISION-C |
Language | English |
Power | 12 VDC ± 25%, Max. 2.4 W*Use one power adapter per camera recommended |
Approval | |
Protection | IP67 |
