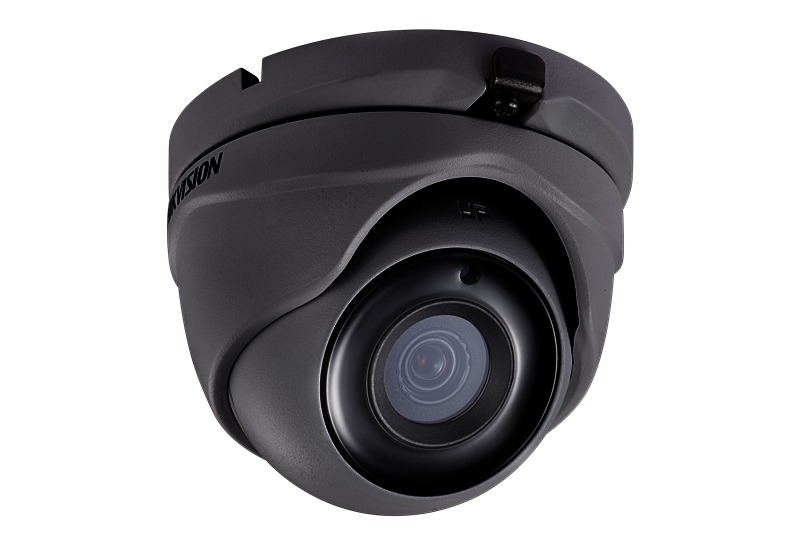

Hikvision - DS-2CE76D3T-ITMFB 2.8mm - 2 MP Ultra Low Light Fixed Turret Black Camera 4 in 1 IR 2.8mm
Part number:
DS-2CE76D3T-ITMFB 2.8mm
Price:
2 MP Ultra Low Light Fixed Turret Black Camera 2.8mm
Features:
- 2 MP turret camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.005 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day ＆ Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm |
| Focal Length ＆ FOV | 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm) |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness,Mirror,Sharpness,AGC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥120 dB |
| Image Enhancement | WDR,BLC,HLC |
| Noise Reduction | 3D DNR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS,1 HD analog output |
| General | |
Power | 12 VDC ±25%, max. 4.6 W *You are recommended to use one power adapter to supply the power for one camera. |
| Material | Metal |
| Dimension | 89.47 mm × 68.2 mm (3.52" × 2.68") |
| Weight | Approx. 240 g (0.53 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Language | English |
| Approval | |
| Protection | IP67 |
