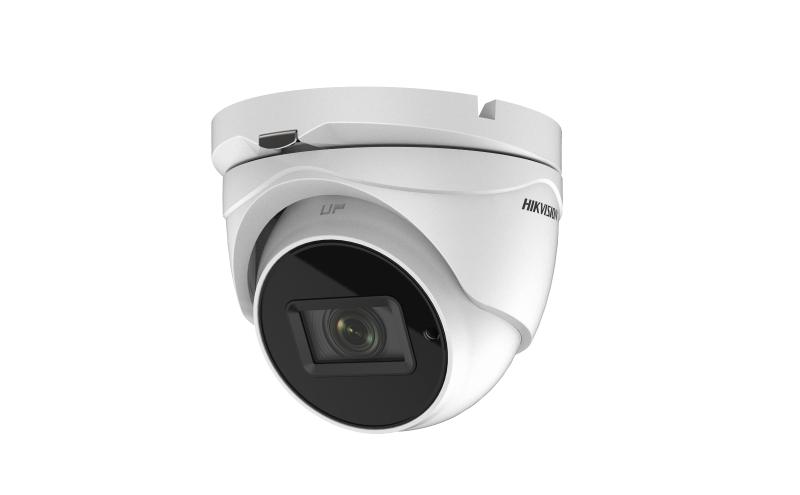

HIKVISION - DS-2CE79H8T-AIT3ZF - OutTur 5MP TVI 2.7-13.5mm
Part number:
DS-2CE79H8T-AIT3ZF
Price:
5 MP Ultra Low Light Motorized Varifocal Turret Camera
Features:
- 5 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| n Specification | |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length ＆ FOV | 92.3° to 29.3° |
| Lens Mount | Φ14 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
Frame Rate | TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34") |
| Weight | Approx. 630 g (1.39 lb.) |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 20%, 24 VAC ± 20% |
| Consumption | Max. 10.5 W |
| IR Range | Up to 60 m |
| Approval | |
| Protection | IP67 |
