HIKVISION - DS-2DE3A400BW-DE - ColorVu PT 4MP
Part number:
DS-2DE3A400BW-DE
Price:

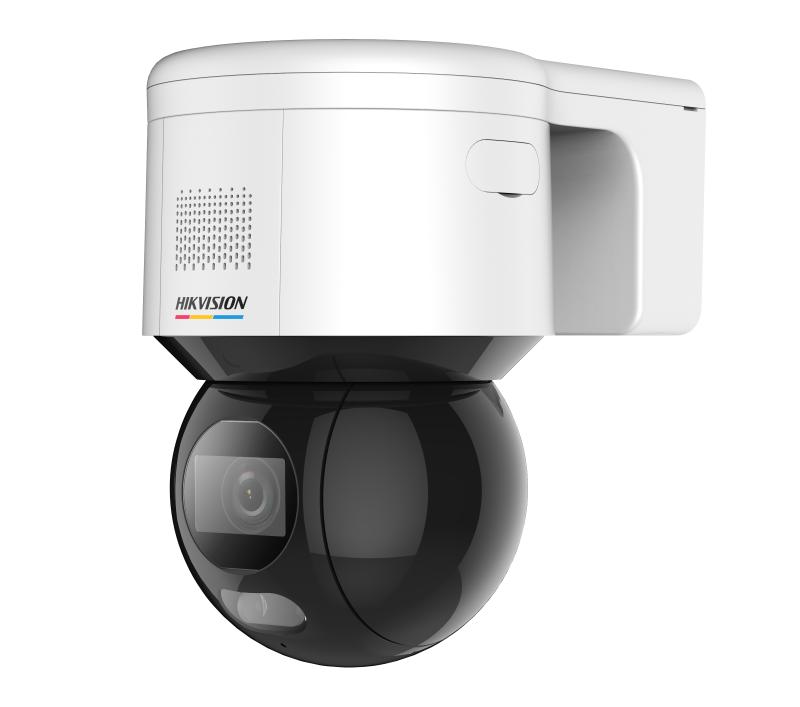

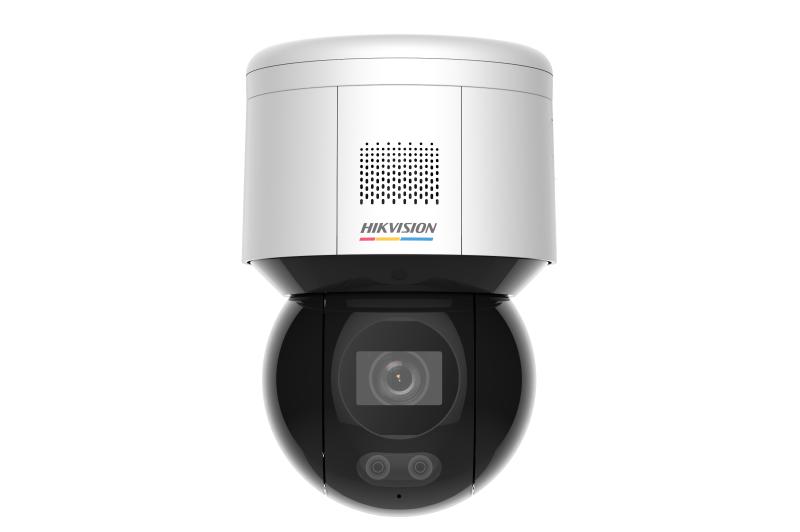

3-inch 4 MP ColorVu Mini PT Dome Network Camera
Features:
- Focuses on human and vehicle targets classification based on deep learning
- Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
- Linked audible and visual alarm. Built-in microphone and speaker
- Up to 2560 × 1440 @ 30 fps
- Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
- 24/7 colorful imaging with low power consumption. Up to 30 m white light distance
- 120 dB WDR, 3D DNR, HLC
- IP66; PoE
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | 24/7 colorful imaging |
| Zoom | 16x digital |
| Max. Resolution | 2560 × 1440 |
| Lens | |
| Focal Length | 4 mm |
FOV | Horizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0° |
| Aperture | F1.0 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
| PT | |
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
