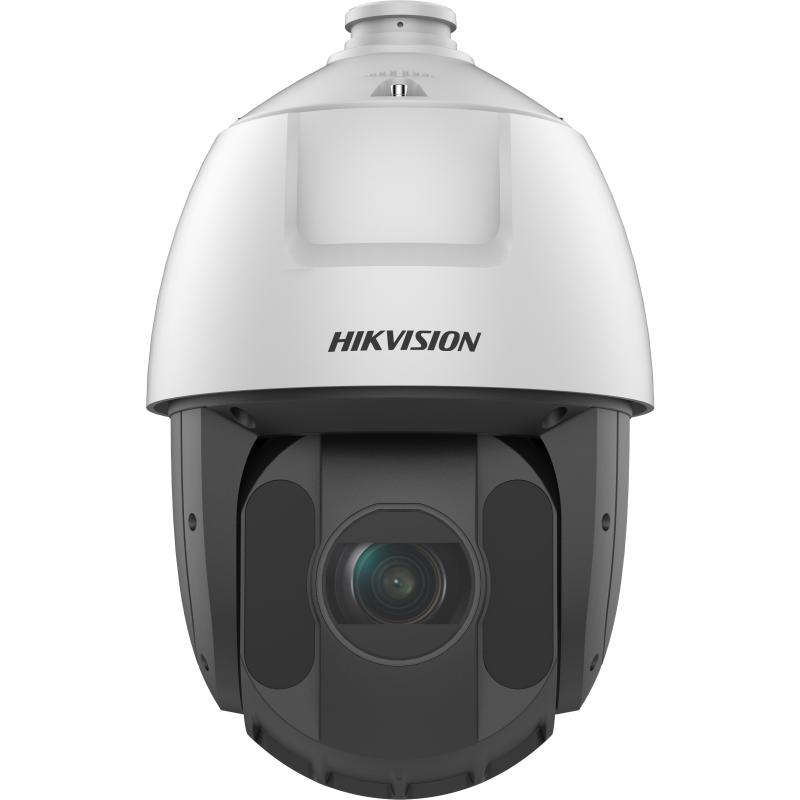

Hikvision - DS-2DE5225IW-AE - 2MP 25X Powered by DarkFighter IR Network Speed Dome
Part number:
DS-2DE5225IW-AE
Price:
2 MP 25X Powered by DarkFighter IR Network Speed Dome
Features:
- 1/2.8" Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 150 m IR distance
- 24 VAC & PoE (802.3at)
- Efficient H.265+/H.265 compression technology
Camera Module
- Image Sensor: 1/2.8" progressive scan CMOS
- Minimum Illumination: Color: 0.005 lux @ (ƒ/1.6, AGC on); B/W: 0.001 lux @ (ƒ/1.6, AGC on), 0 lux with IR
- Day/Night: IR cut filter
- Focus Mode: Auto/semi-automatic/manua
- Shutter Speed: 1/1 to 1/30,000s
- Digital Zoom: 16x
- White Balance: Auto/manual/indoor/outdoor/fluorescent lamp/sodium lamp
- AGC Auto/manual
- Wide Dynamic Range: 120 dB
- Privacy Mask: 24 programmable privacy masks
Lens
- Focal Length: 4.8 mm to 120 mm, 25x optical
- Field of View: Horizontal field of view: 57.6° to 2.5° (wide to tele); vertical field of view: 34.4° to 1.4° (wide to tele), diagonal field of view: 64.5° to 2.9° (wide to tele)
- Working Distance: 10 mm to 1500 mm (wide−tele)
- Zoom Speed: Approximately 3.6 s (optical lens, wide to tele)
- Aperture Range: ƒ/1.5 to ƒ/3.5
Smart
- Basic Event: Motion detection, video tampering detection, exception detection
- Smart Event: Face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
- Smart Record: ANR (Automatic Network Replenishment), dual-VCA
- ROI: Main stream, sub-stream, and third stream respectively support four fixed areas
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Release Note
0.3mb
