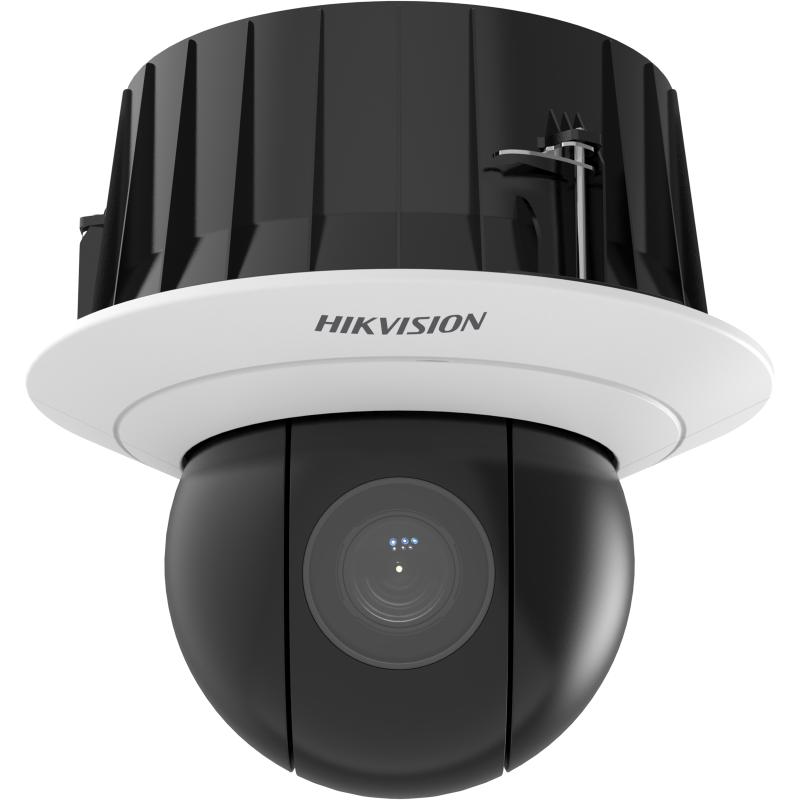

6 Series 4K 32X Powered by DarkFighter Network Speed Dome Camera
Features:
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 8 MP resolution
- Excellent low-light performance with DarkFighter technology
- 32× optical zoom and 16× digital zoom provide close up views over expansive areas
- 140dB WDR, 3D DNR, HLC
- Supports H.265+/H.265 video compression
- Captures every point fast even in critical events
| DS-2DF6A832X-DE3(T5) | |
| Camera Module | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Minimum Illumination | Color: 0.002 lux @ (ƒ/1.5, AGC on), B/W: 0.0002 lux @ (ƒ/1.5, AGC on) |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Focus | Semi-auto, manual, auto |
| Day/Night | ICR |
| BLC | Yes |
| WDR | 140 dB WDR |
| HLC | Yes |
| 3D DNR | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Digital Zoom | 16x |
| Optical Zoom | 32x |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| General Function | Mirror, password protection, watermark, IP address filter |
| Lens | |
| Focal Length | 6.7 mm to 214.4 mm, 32x optical |
| Zoom Speed | Approximately 4.5 s |
| FOV | Horizontal field of view: 56.6° to 2.0° (wide–tele) Vertical field of view: 33.7° to 1.2° (wide–tele) Diagonal field of view: 63.4° to 2.3° (wide–tele) |
| Aperture | ƒ/1.5 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | Configurable from 0.1° to 300°/s; preset speed: 540°/s |
| Tilt Speed | Configurable from 0.1° to 240°/s, preset speed 400°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols |
| Pattern Scan | 4 pattern scans |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Tasks | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Maximum Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920×1080, 1280 × 960, 1280×720) 60 Hz: 24 fps (3840 × 2160,2560 × 1440, 1920×1080, 1280 × 960, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265, H.264, MJPEG |
| H.264 Type | Baseline profile, main profile, high profile |
| H.265 Type | Main profile |
| H.264+ | Yes |
| H.265+ | Yes |
| SVC | Yes |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| DS-2DF6A832X-DE3(T5) | |
| Smart Features | |
| Face Capture | Yes |
| Basic Event | Motion detection, video tampering alarm, alarm input and output |
| Smart Event | Unattended baggage detection, object removal detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection |
| Smart Tracking | Manual tracking, event tracking |
| Smart Record | ANR, dual-VCA |
| Alarm Linkage | Alarm actions: Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send E-mail, etc. |
| Network | |
| Client | iVMS-4200, Hik-Connect, HikCentral |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Interface | |
| Communication Interface | 1 RJ-45 10 M/100 M Ethernet Interface; Hi-PoE |
| On-Board Storage | Built-in memory card slot, microSD/microSDHC/microSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Alarm Input | 7 alarm inputs |
| Alarm Output | 2 alarm outputs |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ω ±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| General | |
| Power | 12 VDC, PoE |
| Operating Conditions | -20° to 50° C (-4° to 122° F), humidity 95% or less (non-condensing) |
| Dimensions | Ø290 mm × 274.8 mm (Ø11.42" × 10.82") |
| Weight | Approximately 3.8 kg (8.38 lb) |
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approvals | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Lightning protection, surge protection and voltage transient protection, ±6 kV line to gnd, ±3 kV line to line, IEC61000-4-5 |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator, and user |
| Security Measures | User authentication (ID and PW), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
