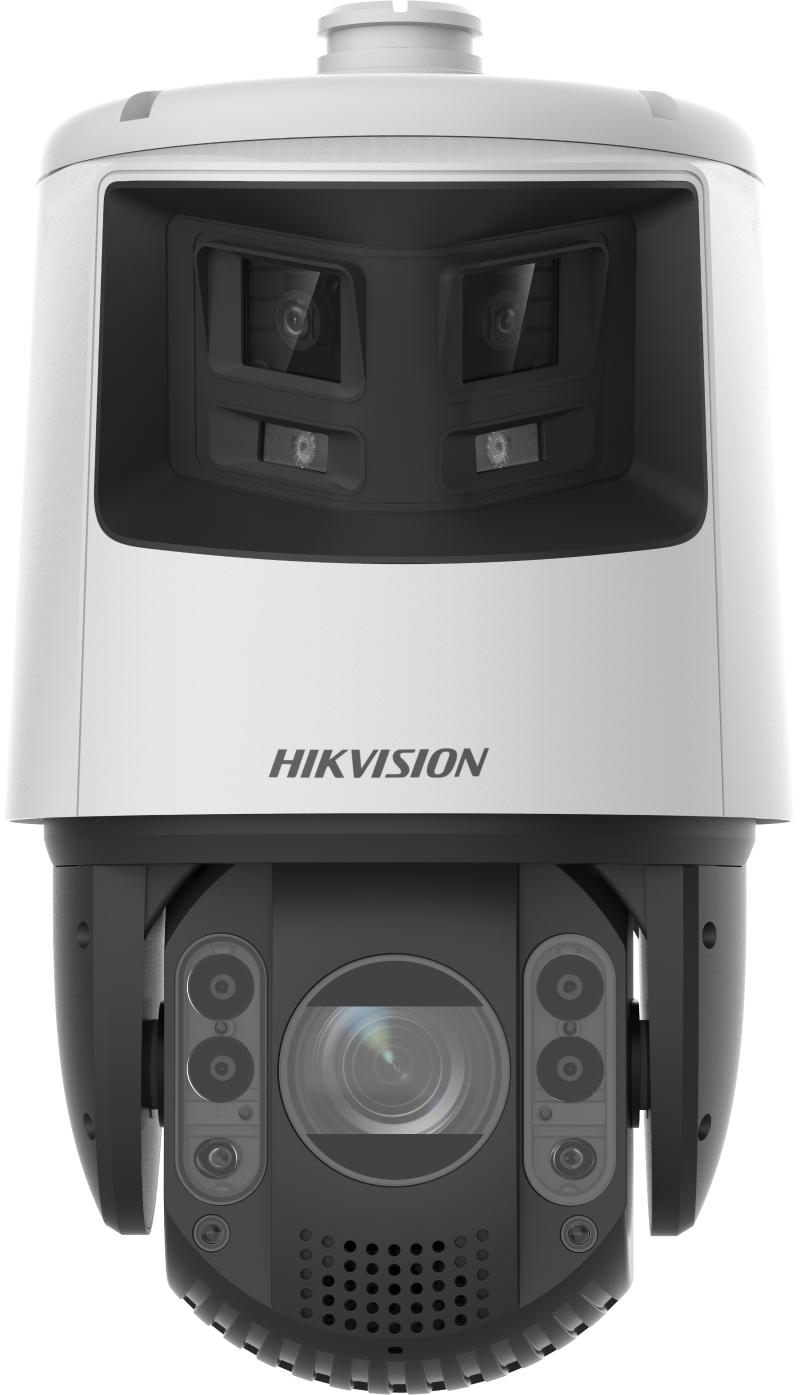

TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome Camera
Features:
- Panoramic channel supports image stitching, with 180° horizontal field of view
- High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
- Secures an expansive area with 32 × optical zoom and 16 × digital zoom
- AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
- Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
- Active strobe light and audio alarm to warn intruders off
- Smart-linkage between panoramic channel and PTZ channel
| Camera | |
| Image Sensor | [Panoramic channel] 1/2.5" Progressive Scan CMOS [PTZ channel] 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1 s to 1/30,000 s |
Min. Illumination | [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Slow Shutter | yes |
| Day ＆ Night | IR cut filter |
| HLC | yes |
| 3D DNR | yes |
| White Balance | auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB |
| Zoom | 32 × optical,16 × digital |
| Max. Resolution | [Panoramic channel] 3632 × 1632 [PTZ channel] 2560 × 1440 |
| Lens | |
| FOV | [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3° |
| Focus | Auto,semi-auto,manual |
| Zoom Speed | [Panoramic channel] No [PTZ channel] approx. 5.6 s |
| Focal Length | [Panoramic channel] 2.8 mm [PTZ channel] 5.9 to 188.8 mm |
| Aperture | [Panoramic channel] F1.0 [PTZ channel] Max. F1.5 |
| Illuminator | |
| White Light Distance | Panoramic channel: 30 m |
| Supplement Light Range | IR distance: up to 200 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust |
| Video | |
| Stream Type | main stream,sub-stream,third stream |
Main Stream | [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656) |
Sub-Stream | [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432) |
Third Stream | [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [Panoramic channel] No |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | fixed region |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz AAC-LC: 16kHz, 32kHz, 48kHz PCM: 8kHz, 16kHz, 32kHz, 48kHz MP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Environment Noise Filtering | yes |
| Smart Features | |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Network | |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP ,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP |
| Network Storage | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| API | ISUP,SDK,ISAPI,ONVIF (Profile S, Profile G, Profile T) |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Security | Password protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter |
| Client | iVMS-4200,HikCentral Pro,Hik-Connect |
| Web Browser | IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+ |
| Image | |
| Wide Dynamic Range (WDR) | [Panoramic channel] Digital WDR [PTZ channel] 120 dB |
| Day/Night Switch | Day,night,auto,schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Defog | yes |
| Image Stabilization | yes |
| Regional Exposure | yes |
| Regional Focus | yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Image Parameters Switch | Yes |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| SNR | ＞52dB |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 512 GB |
| Alarm | 2 input(s), 1 output(s) |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart) |
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing |
| Smart Linkage | panorama linkage, tracking takeover, track in turn |
| Smart Tracking | Manual tracking,auto-tracking |
| Deep Learning Function | |
| Face Capture | Support detecting up to 5 faces at the same time. Support detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| General | |
| Power | 24 VAC, Max. 60 W, Hi-PoE |
| Material | ADC12,Plastic,PC+10%GF |
| General Function | mirror,watermark,password protection,IP address filter |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist | Yes |
| Dimension | Ø222.3 mm × 387.2 mm (Ø8.75" × 15.2") |
| Weight | Approx. 4.75 kg (10.47 lb.) |
| Approval | |
| Protection | IP66 (IEC 60529-2013) |
