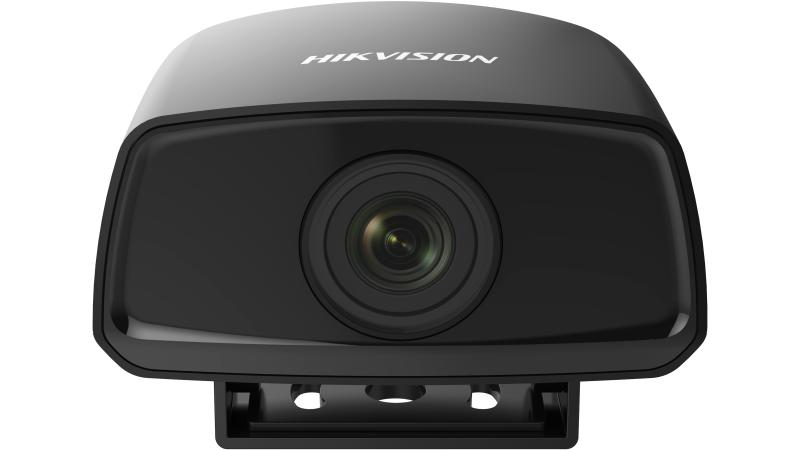

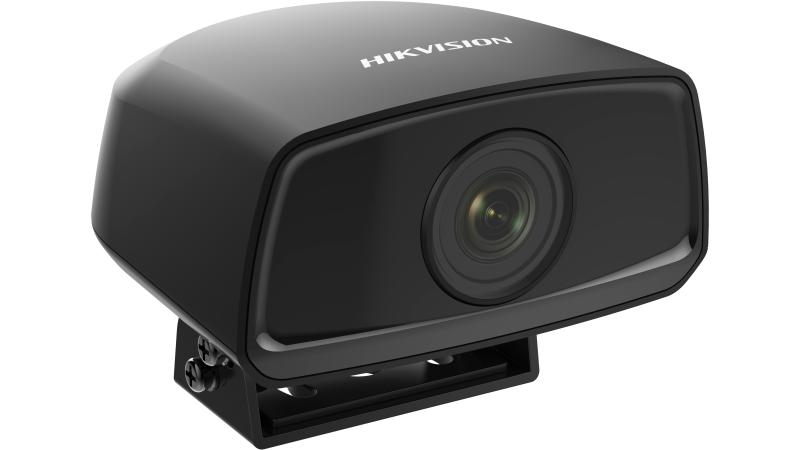

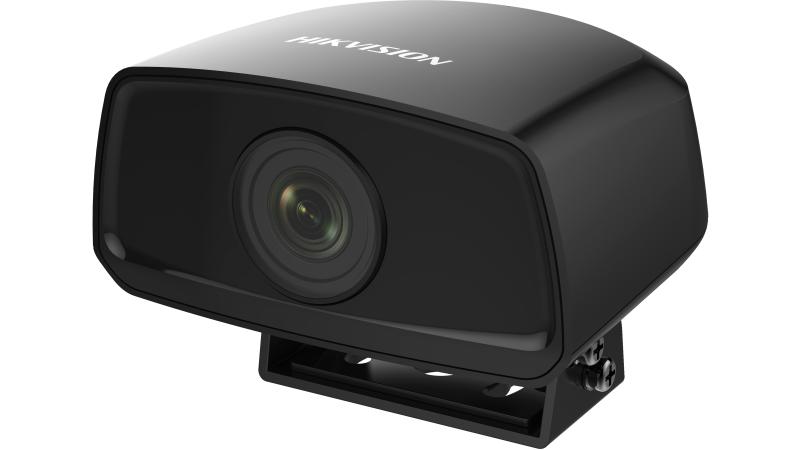

2MP, Mobile Outdoor Bullet Network Camera IP67, POE, RJ45
Features:
- High quality imaging with 2 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- 3D DNR technology delivers clean and sharp images
| Selection Parameter | |
| Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Local Storage | 128 GB |
| Protection Level | IP67 |
| Wi-Fi Support | No |
| Case Type | Bullet |
| Resolution | 2MP |
| Lens Type | Fixed Lens |
| Video Compression | H.265,H.264 |
| Camera | |
| Image Sensor | 1/2.8ʺ Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | No |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: -20°-20°, tilt -15°-25° |
| Lens | |
| Focal Length & FOV | 2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118° 4 mm: horizontal FOV 81°, vertical FOV 43°, diagonal FOV 91° 6 mm: horizontal FOV 49°, vertical FOV 27°, diagonal FOV 57° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| illuminator | |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Third Stream | no |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264 |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SNMP, QoS, FTP，SMTP， HTTPS |
| Simultaneous Live View | Up to 8 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Network Storage | microSD/SDHC/SDXC card (up to 128 GB), |
| Client | iVMS-4200 |
| Web Browser | Plug-in required live view: IE10; |
| Image | |
| Image Settings | saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC, 3D DNR, |
| SNR | > 50dB |
| DNR | 3D DNR |
| Interface | |
| Ethernet Interface | -ID: 1 RJ45 10M/100M self-adaptive Ethernet port -IM/ND: 1 four-core M12 aviation plug |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Alarm | no |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm |
| Smart Event | no |
| Linkage | Upload to FTP, notify monitoring center, send email, trigger recording, |
| General | |
| Camera Material | Metal |
| Camera Dimension | 78.8 × 81.6 × 64 mm (3.1" × 3.2" × 2.5") |
| Camera Weight | Approx. 330 g (0.7 lb.) |
Startup and Operating Conditions | -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, |
| Power Consumption | max. 5.2 W |
| Power Supply | -ID: 9-36V& PoE (802.3af, 36 V to 57 V) -IM/ND: PoE (802.3af, 36 V to 57 V) |
| Power Interface | -ID: Ø5.5 mm coaxial power plug, DC power supply, or PoE power supply -IM/ND: four-core M12 aviation plug, PoE power supply |
| Approval | |
| Class | Class B |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE- LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- | |
| Automotive and Railway | 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); |
| E-MARK (ECE R10) |
