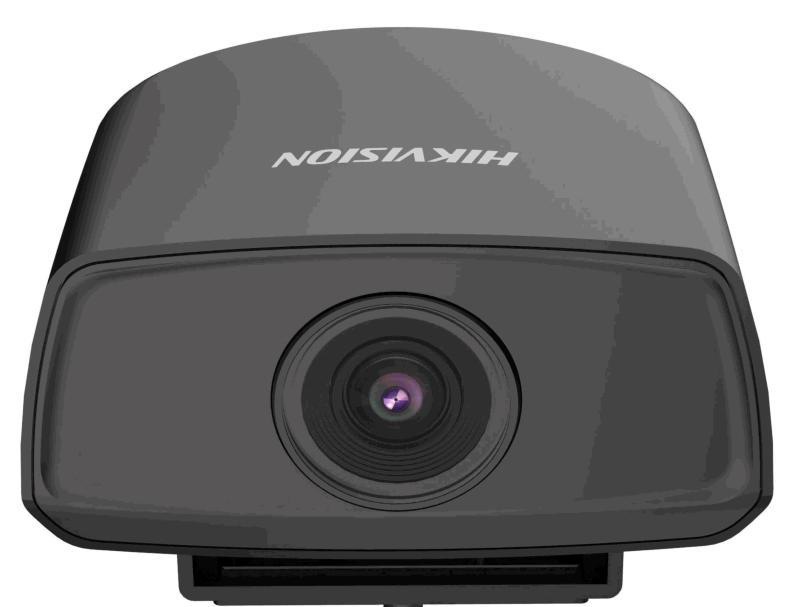

Mobile Bullet Camera 4mm
Features:
- High quality imaging with 2MP resolution
- 2.8/4/6 mm fixed lens
- Clear imaging against strong back light based on 120 dB WDR technology
- Water and dust resistant (IP68)
| Camera | |
| Protection Level | IP68 |
| Min. Illumination | 0.002Lux @ (F1.6, AGC ON), 0lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Resolution | 2MP |
| P/N | PAL: 25fps NTSC: 30fps |
| Day & Night | IR Cut Filter |
| Sensor Type | 1/2.8" CMOS Progressive Scan |
| Angle Adjustment | Pan: -20° to 0°, Tilt: -15° to 25° |
White Balance | Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light; Support manual/automatic white balance adjustment. |
| Lens | |
| Focal Length | 2.8mm/4mm/6mm |
Focal Length & FOV | 2.8mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
| Lens Mount | M12 |
| Focus | Manual focus |
| Max. Aperture | 2.8/4/6mm : F1.6 |
| Illuminator | |
| Supplement Light Type | Infrared fill light lamp |
| Smart Supplement Light | Support |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video | |
| Max. Resolution | 1920 x 1080 |
| Main Stream | 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720) 60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) |
| Sub-Stream | 50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240) 60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240) |
| Third Stream | 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720) 60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) |
Video Compression | Main stream: H.264, H.265, H.264+, H.265+ Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+ Third stream: H.264, H.265 ,H.264+, H.265+ |
Video Bit Rate | Main Stream: 256 Kbps to 12288Kbps Sub-Stream: 256 Kbps to 4096Kbps Third Stream: 256 Kbps to 12288Kbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | Constant Bit Rate, Variable Bit Rate |
| Stream Type | Main stream, sub stream, third stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | Support 2 fixed region for (main/sub) stream |
| Network | |
| Protocols | TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGM P,ICMP,IPV6,UDP,SSL/TLS |
| Simultaneous Live View | Up to 8 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User Management | Up to 16 users, 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome45+, Edge41+, Firefox45+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Settings | Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software. |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SNR | > 50 dB |
| Image Enhancement | BLC, HLC, 2DNR ,3DNR |
| Privacy Mask | Enables configuration, and supports drawing of up to 4 areas |
| Picture Overlay | Support image overlay, uploading images, enabling, coordinates, etc. |
| Target Cropping | Support (only the third stream) |
| Backlight Compensation(BLC) | Support up, down, left, right, center and custom backlight compensation adjustment |
| Interface | |
| Video Output | Not supported |
| Ethernet Interface | -ID: 1 RJ45 10M/100M self-adaptive Ethernet port -IM/ND, IDM: 1 four-core M12 aviation plug |
| Reset Key | Support |
| Interface Type | Interpolate |
| TF Card Storage | Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering) |
| Event | |
| Linkage Method | Upload to FTP, notify monitoring center, send email, trigger recording |
| Basic Event | Motion detection, video tampering alarm |
Smart Event | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images Scene change detection, defocus detection, Loitering Detection, People Gathering Detection, Fast Moving Detection, Parking Detection, |
| General | |
| Product Dimension | Camera: Φ 78.8 mm × 81.6mm x 63.8 mm (3.1″ × 3.2″ x 2.5″) |
| Power | PoE: 0.30A to 0.20 A, max:7.5 W DC: 0.83 A to 0.21 A, max: 7.5 W |
| Camera Material | Metal |
| Package Dimension | 174 mm × 111 mm × 101mm (6.85″× 4.37″ × 3.98″) |
| Product Weight | Approx. 330 g (0.7 lb.) |
Startup and Operating Conditions | -30 °C to 75 °C (-22°F to 167°F), humidity less than 95% or less (non-condensing) |
| Language | English, French,German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech |
| General Function | Anti-flicker, heartbeat, mirror |
| Software Reset | Support |
Power Supply | -ID: 9-36V& PoE (802.3af, 36 V to 57 V) -IDM: 9-36V& PoE (802.3af, 36 V to 57 V) -IM/ND: PoE(802.3af, 36 V to 57 V) |
| Power Interface | -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE powersupply -IM/ND: four-core M12 aviation plug,PoE power supply |
| Cable Length | 50 cm |
| Selection Parameter | |
| Wi-Fi Support | Not supported |
| POE Support | PoE (802.3af) |
| Approval | |
| Class | Class B |
EMC | FCC (47 CFR Part 15, SubpartB); CE-EMC (EN 55032: 2015,EN 61000-3-2: 2014,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014); |
Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009+ Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009+ Am 2:2013); LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015 |
Environment | CE-RoHS (2011/65/EU); WEEE: 2012/19/EU Reach SVHC:Regulation (EC) No 1907/2006 |
| Electrical SafetyProtection | IP68 (IEC60529-2013) |
Automotive and Railway | EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECER10) |
